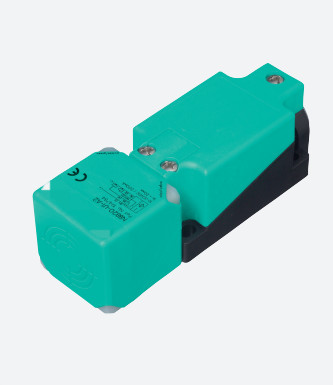

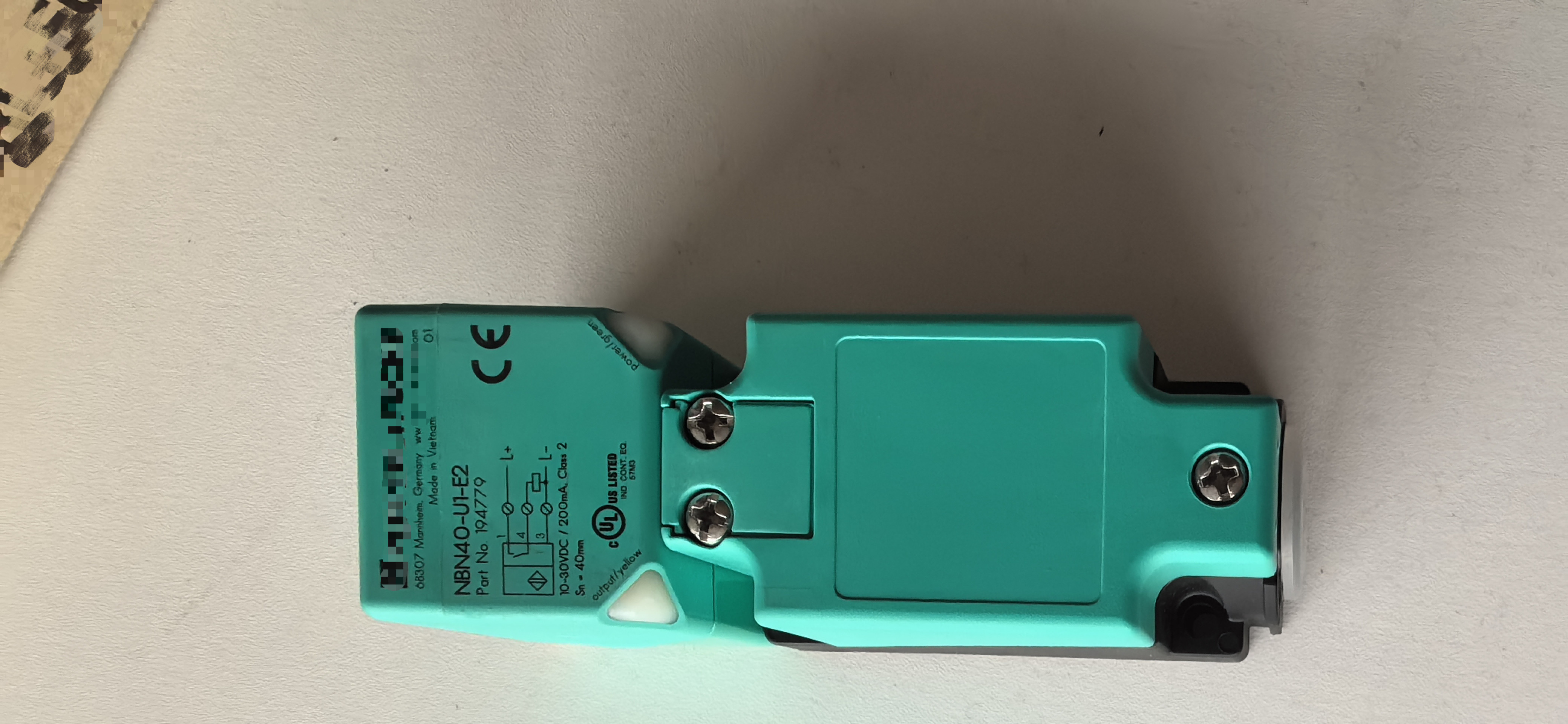

P+F NBN40-U1-E2 Inductive Sensor 40mm Non-Flush 3-Wire DC NO

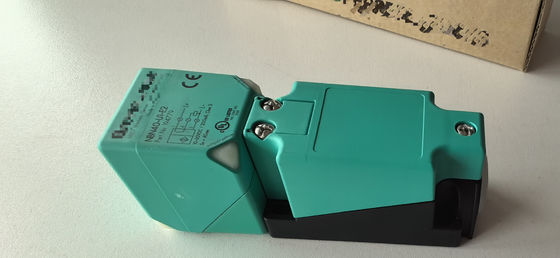

Large Image : P+F NBN40-U1-E2 Inductive Sensor 40mm Non-Flush 3-Wire DC NO

Product Details:

Place of Origin:	Germany
Brand Name:	P+F
Certification:	CE
Model Number:	NBN40-U1-E2

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

P+F NBN40-U1-E2 Inductive Sensor 40mm Non-Flush 3-Wire DC NO

Description

Switching Function:	Normally Open (NO)	Output Type:	3-wire
Rated Operating Distance:	40 Mm	Installation:	Non-flush
Output Polarity:	DC	Assured Operating Distance:	0 ... 32.4 Mm
Highlight:	P+F Inductive sensor , Inductive sensor NBN40-U1-E2 , NBN40-U1-E2 P+F Sensors

P+F Inductive Sensor NBN40-U1-E2 0-32.4mm Assured Operating Distance

Key Features

Sensor head bidirectional and rotatable
40 mm non-flush 3-wire DC
4 LEDs indicator for 360° visibility
IP68 / IP69K protection rating
Wide operating temperature range: -25°C to 85°C

Technical Specifications

Attribute	Value
Switching function	Normally open (NO)
Output type	3-wire PNP
Rated operating distance	40 mm
Assured operating distance	0 ... 32.4 mm
Actual operating distance	36 ... 44 mm
Operating voltage	10 ... 30 V DC
Switching frequency	0 ... 180 Hz
Housing material	PA/metal with epoxy powder coating
Degree of protection	IP68 / IP69K
Dimensions (H × W × L)	40 × 40 × 118 mm
Weight	225 g

Electrical Characteristics

Voltage drop	≤ 2 V
Operating current	0 ... 200 mA
Off-state current	0 ... 0.5 mA (typ. 0.01 mA)
No-load supply current	≤ 20 mA
Time delay before availability	80 ms

Installation Information

Connection type: Screw terminals
Maximum of two conductors per terminal
Tightening torque: 1.2 Nm ±10%
Core cross-section: 0.5-2.5 mm² (without ferrule)
Core cross-section: 0.34-1.5 mm² (with connector sleeves)

Note: Tightening torque for housing is 1.8 Nm

Standards Compliance

EN 60947-5-2:2007
EN 60947-5-2/A1:2012
IEC 60947-5-2:2007
IEC 60947-5-2 AMD 1:2012
UL Listed (cULus General Purpose)
