P+F KCD2-SOT-1.LB Switch Amplifier 24V DC SIL 2 Digital Input

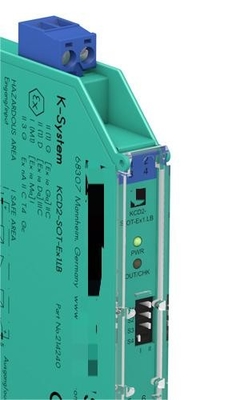

Large Image : P+F KCD2-SOT-1.LB Switch Amplifier 24V DC SIL 2 Digital Input

Product Details:

Place of Origin:	Germany
Brand Name:	P+F
Certification:	CE
Model Number:	KCD2-SOT-1.LB

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

P+F KCD2-SOT-1.LB Switch Amplifier 24V DC SIL 2 Digital Input

Description

Signal Type:	Digital Input	Safety Integrity Level (SIL):	SIL 2
Systematic Capability (SC):	SC 3	Connection:	Power Rail Or Terminals 9+, 10-
Rated Voltage:	19 ... 30 V DC	Ripple:	≤ 10 %
Rated Current:	20 ... 15 MA	Power Dissipation:	≤ 700 MW Including Maximum Power Dissipation In The Output
Highlight:	P+F Switch Amplifier , Switch Amplifier KCD2-SOT-1.LB

P+F Switch Amplifier KCD2-SOT-1.LB Power Dissipation ≤ 700 MW Rated Voltage 19-30 V DC

Product Overview

Switch Amplifier KCD2-SOT-1.LB

1-channel signal conditioner
24 V DC supply (Power Rail)
Dry contact or NAMUR input
2 passive transistor outputs
Usable as signal splitter (1 input and 2 outputs)
Reversible mode of operation
Line fault detection (LFD)
Housing width 12.5 mm
Up to SIL 2 (SC 3) acc. to IEC/EN 61508

Technical Specifications

General Specifications

Attribute	Value
Signal type	Digital Input
Safety Integrity Level (SIL)	SIL 2
Systematic capability (SC)	SC 3

Power Supply

Attribute	Value
Connection	Power Rail or terminals 9+, 10-
Rated voltage	19 ... 30 V DC
Ripple	≤ 10 %
Rated current	20 ... 15 mA
Power dissipation	≤ 700 mW including maximum power dissipation in the output

Input Specifications

Connection side

field side

Connection

terminals 1+, 2-

Rated values

acc. to EN 60947-5-6 (NAMUR)

Output Specifications

Connection side

control side

Connection

output I: terminals 5, 6 ; output II: terminals 7, 8

Rated voltage

30 V DC

Environmental Specifications

Ambient temperature

-20 ... 60 °C (-4 ... 140 °F)

Extended temperature range

up to 70 °C (158 °F), refer to manual for necessary mounting conditions

Degree of protection

IP20

Mechanical Specifications

Mass

approx. 100 g

Dimensions

12.5 x 119 x 114 mm (0.5 x 4.7 x 4.5 inch) (W x H x D), housing type A2

Mounting

on 35 mm DIN mounting rail acc. to EN 60715:2001

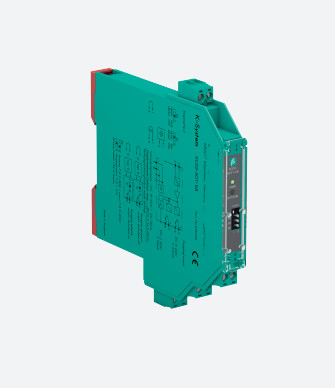

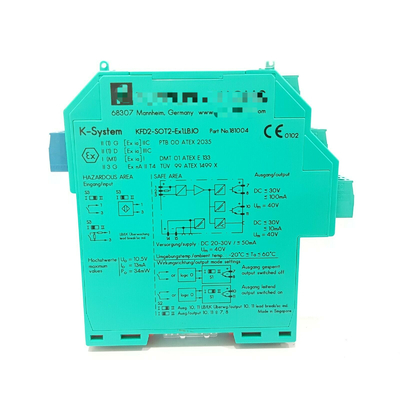

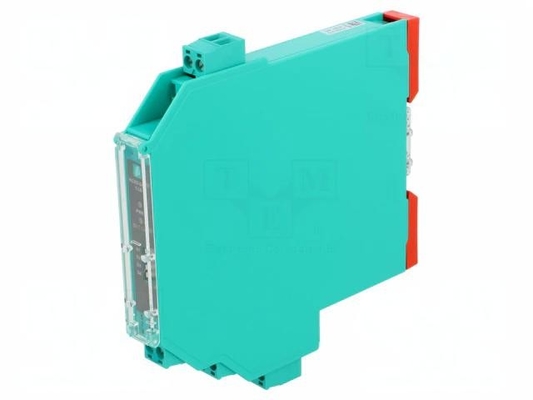

Product Images
