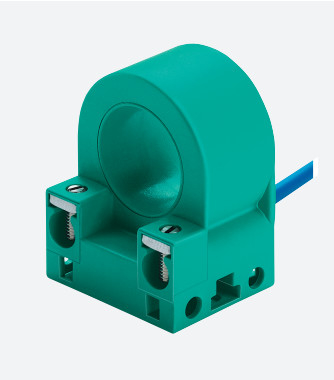

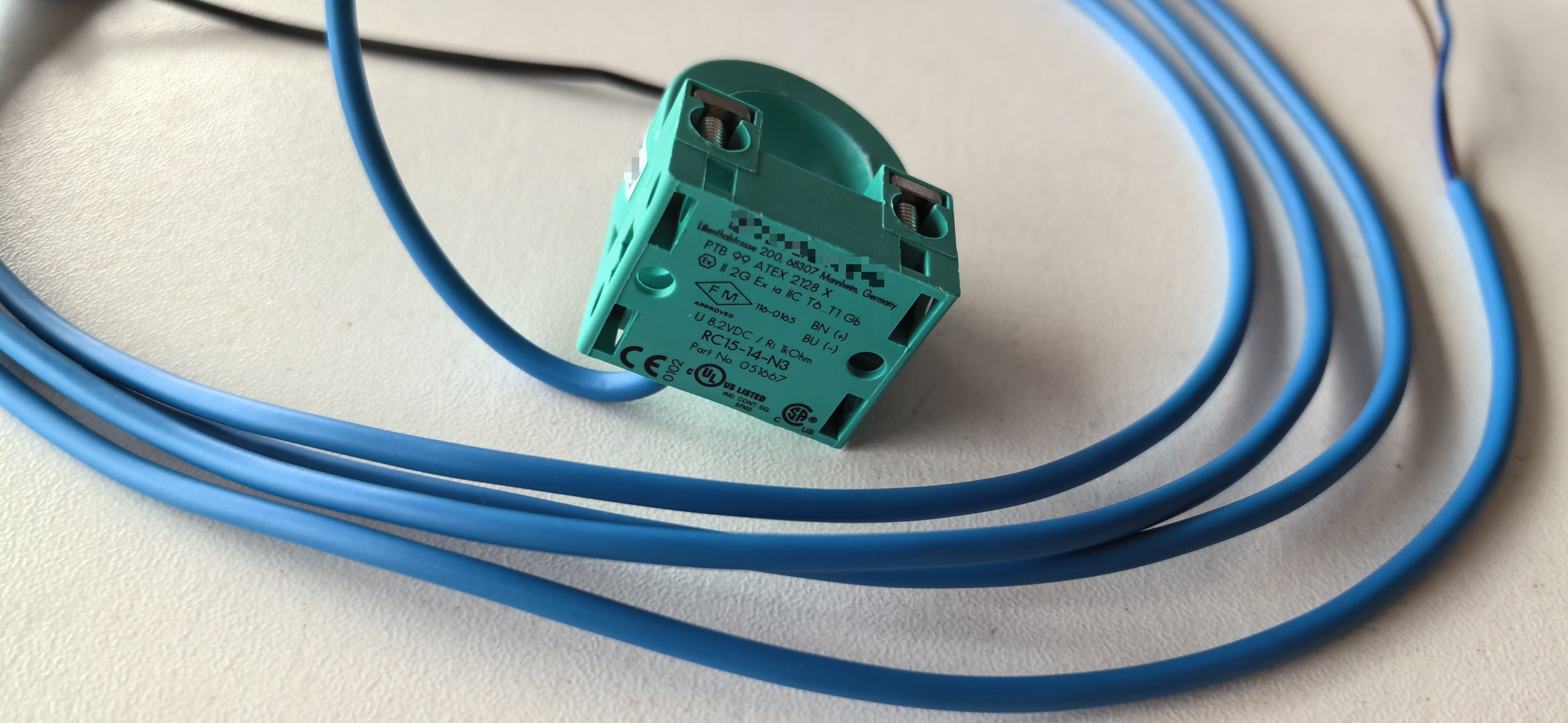

P+F RC15-14-N3 Inductive Ring Sensor 15mm NC 2-Wire

P+F RC15-14-N3 Inductive Ring Sensor 15mm NC 2-Wire
P+F RC15-14-N3 Inductive Ring Sensor 15mm NC 2-Wire P+F RC15-14-N3 Inductive Ring Sensor 15mm NC 2-Wire P+F RC15-14-N3 Inductive Ring Sensor 15mm NC 2-Wire

Large Image :  P+F RC15-14-N3 Inductive Ring Sensor 15mm NC 2-Wire

Product Details:
Place of Origin: Germany
Brand Name: P+F
Certification: CE
Model Number: RC15-14-N3
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

P+F RC15-14-N3 Inductive Ring Sensor 15mm NC 2-Wire

Description
Switching Function: Normally Closed (NC) Output Type: 2-wire
Inside Diameter: 15 Mm Measuring Cylinder: Fe-metal
Diameter: 3 Mm Length: 4 Mm
Passage Speed: ≤ 10 M/s
Highlight:

RC15-14-N3 Inductive ring sensor

,

P+F Inductive ring sensor

P+F Inductive Ring Sensor RC15-14-N3
Key Features
  • 15 mm inside diameter
  • Bistable switching function
  • Direction detection capability
  • High passage speed up to 10 m/s
  • Normally closed (NC) output
  • 2-wire NAMUR output type
Technical Specifications
Attribute Value
Switching function Normally closed (NC)
Output type 2-wire
Inside diameter 15 mm
Measuring cylinder Fe-metal
Diameter 3 mm
Length 4 mm
Passage speed ≤ 10 m/s
Detailed Technical Data
Nominal voltage: 8.2 V (Ri approx. 1 kΩ)
Operating voltage: 5 ... 25 V
Hysteresis: typ. 1 %
Reverse polarity protection: reverse polarity protected
Current consumption: Traverse B: 3 mA, Traverse A: 1 mA
Time delay before availability: ≤ 5 ms
Safety & Compliance
MTTFd: 2240 a
Mission Time (TM): 20 a
Diagnostic Coverage (DC): 0 %
Standards: EN 60947-5-6:2000, IEC 60947-5-6:1999, EN 60947-5-2:2007
Approvals: ATEX, FM, UL (cULus Listed, General Purpose)
Environmental Specifications
Ambient temperature: -20 ... 70 °C (-4 ... 158 °F)
Storage temperature: -40 ... 100 °C (-40 ... 212 °F)
Mechanical Specifications
Connection type: cable PVC, 2 m
Core cross section: 0.14 mm²
Housing material: PBT
Degree of protection: IP67
Bending radius: > 10 x cable diameter
Dimensions: Height: 32.5 mm, Width: 25 mm, Length: 20 mm
P+F RC15-14-N3 Inductive Ring Sensor 15mm NC 2-Wire 0
Note: For use in hazardous areas, please consult the instruction manuals.
