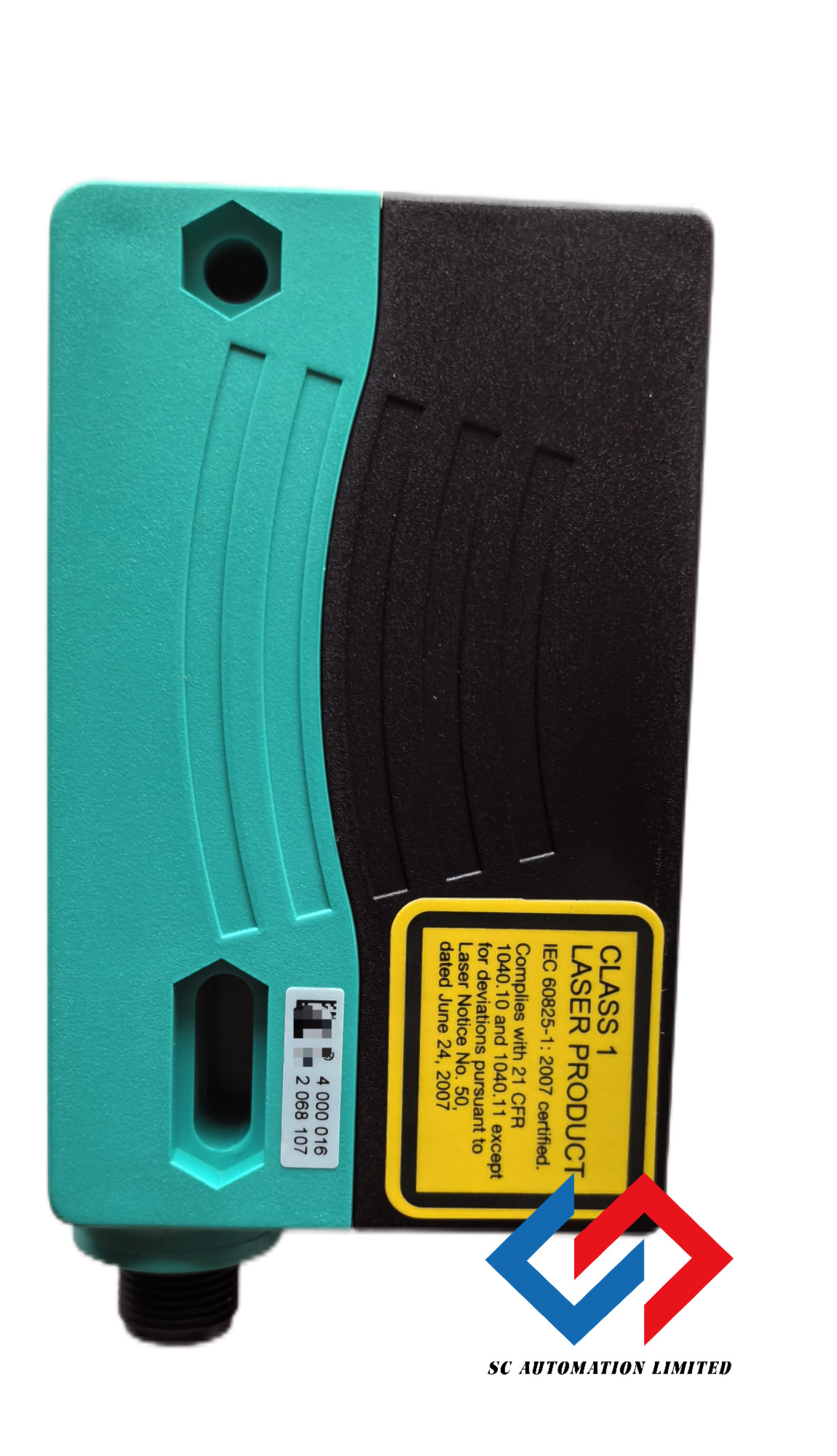

VDM28 P+F Sensors Laser Distance Sensor 0.2-8m Range IP67

VDM28 P+F Sensors Laser Distance Sensor 0.2-8m Range IP67
VDM28 P+F Sensors Laser Distance Sensor 0.2-8m Range IP67 VDM28 P+F Sensors Laser Distance Sensor 0.2-8m Range IP67 VDM28 P+F Sensors Laser Distance Sensor 0.2-8m Range IP67

Large Image :  VDM28 P+F Sensors Laser Distance Sensor 0.2-8m Range IP67

Product Details:
Place of Origin: Vietnam
Brand Name: P+F
Certification: CE
Model Number: VDM28-8-L1/73c/136
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

VDM28 P+F Sensors Laser Distance Sensor 0.2-8m Range IP67

Description
Measurement Range: 0.2 ... 8 M Reference Target: Kodak White (90%)
Light Source: Laser Diode Typ. Service Life 85,000 H At Ta = +25 °C Light Type: Modulated Visible Red Light
Mass: 90 G Dimensions: 88 Mm*25.8 Mm*54.6 Mm
Highlight:

VDM28 P+F Sensors

,

VDM28 Laser Distance Sensor

,

Laser Distance Sensor IP67

P+F Distance sensor VDM28-8-L1/73c/136 VDM28 distance measurement device
Key Specifications
Measurement range 0.2 ... 8 m
Reference target Kodak white (90%)
Light source Laser diode typ. service life 85,000 h at Ta = +25 °C
Light type Modulated visible red light
Mass 90 g
Dimensions 88 mm × 25.8 mm × 54.6 mm
Product Description

The VDM28 distance measurement device employs Pulse Ranging Technology (PRT). It has a repeat accuracy of 5 mm with an operating range of 0.2 ... 50 m and an absolute accuracy of 25 mm. The compact housing of the Series 28 photoelectric sensors, with dimensions of 88 mm (height), 26 mm (width) and 54 mm (depth), make it the smallest device available in its class.

Technical Specifications
Measurement range 0.2 ... 8 m
Reference target Kodak white (90%)
Light source Laser diode typ. service life 85,000 h at Ta = +25 °C
Light type Modulated visible red light
Laser class 1
Wave length 660 nm
Beam divergence < 1.5 mrad
Pulse length approx. 4 ns
Repetition rate 250 kHz
max. pulse energy < 1.5 nJ
Measuring method Pulse Ranging Technology (PRT)
Absolute accuracy ± 25 mm
Repeat accuracy < 5 mm
LASER LIGHT, DO NOT STARE INTO BEAM
Electrical Specifications
Operating voltage 10 ... 30 V DC, class 2
No-load supply current ≤ 125 mA / 24 V DC
Signal output 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected
Switching frequency 50 Hz
Mechanical Specifications
Degree of protection IP67
Housing material Plastic
Optical face PMMA

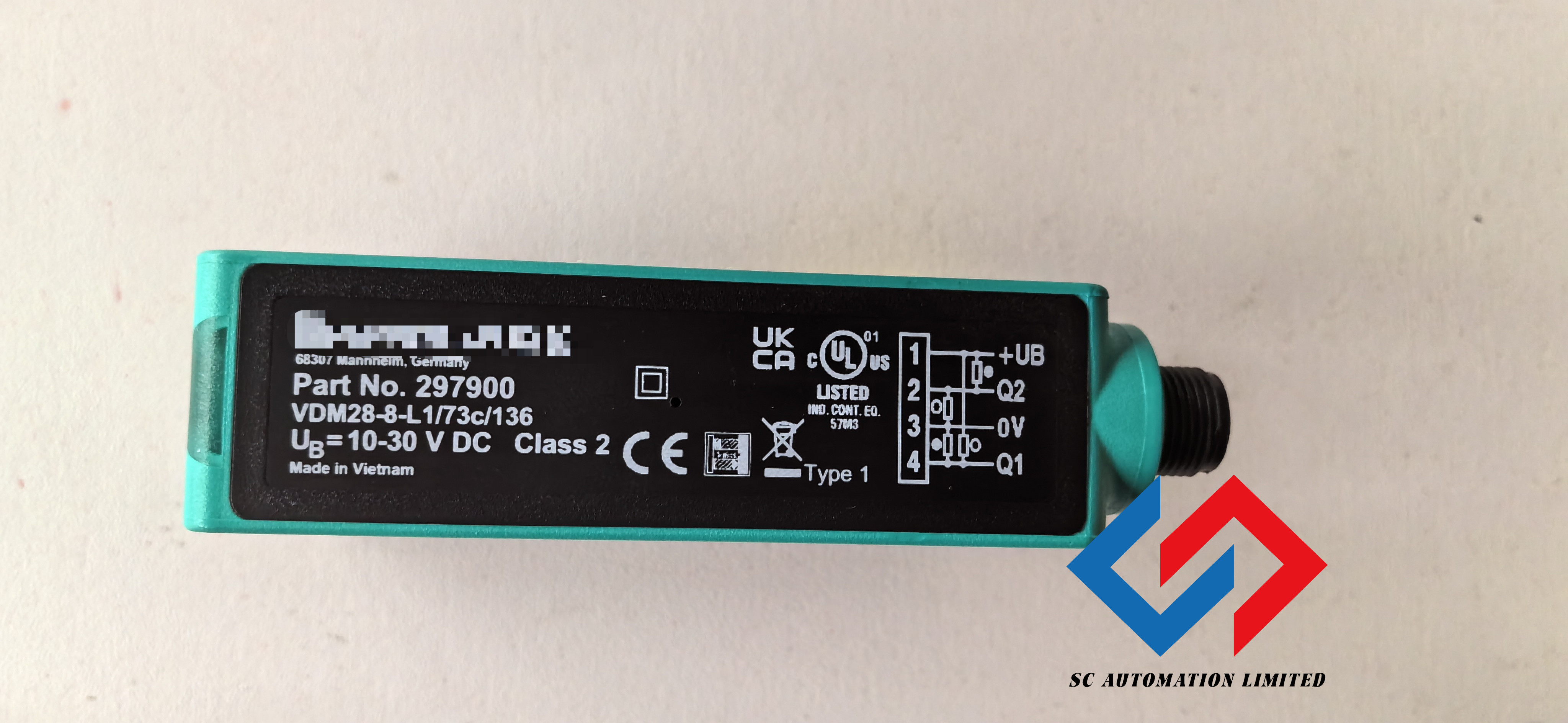

Connection 4-pin, M12 x 1 connector
Approvals and Certificates
UL approval cULus Listed, Class 2 Power Source, Type 1 enclosure
FDA approval IEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11
