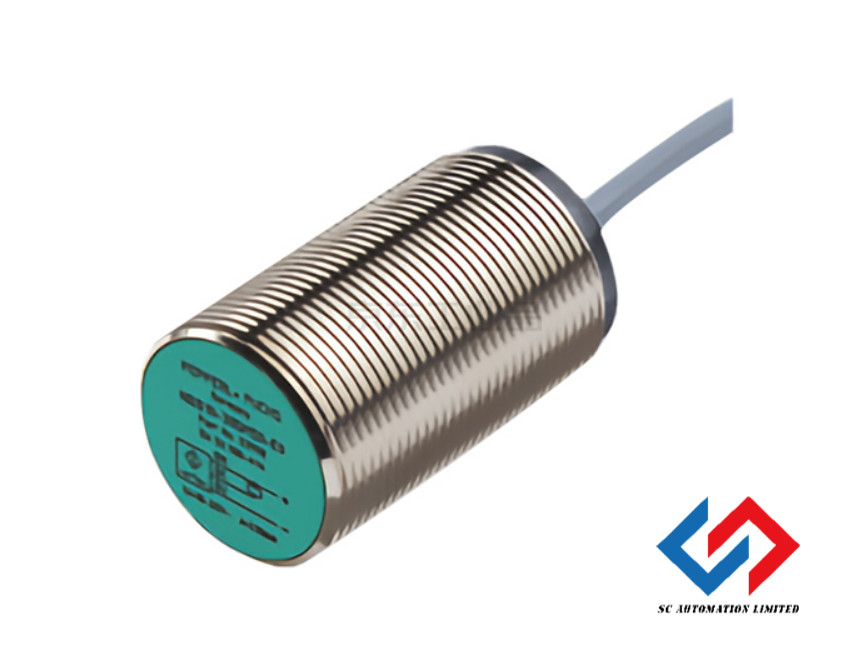

P+F NJ10-30GM50-E2 Inductive Sensor NO PNP 10mm Flush

P+F NJ10-30GM50-E2 Inductive Sensor NO PNP 10mm Flush
P+F NJ10-30GM50-E2 Inductive Sensor NO PNP 10mm Flush P+F NJ10-30GM50-E2 Inductive Sensor NO PNP 10mm Flush P+F NJ10-30GM50-E2 Inductive Sensor NO PNP 10mm Flush

Large Image :  P+F NJ10-30GM50-E2 Inductive Sensor NO PNP 10mm Flush

Product Details:
Place of Origin: Czech republic
Brand Name: P+F
Certification: CE
Model Number: NJ10-30GM50-E2-3G-3D-5M
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

P+F NJ10-30GM50-E2 Inductive Sensor NO PNP 10mm Flush

Description
Switching Function: Normally Open (NO) Output Type: PNP
Rated Operating Distance: 10 Mm Installation: Flush
Operating Voltage: 10 ... 30 V DC Connection Type: Cable
Highlight:

Flush Installation Inductive sensor

,

NJ10-30GM50-E2-3G-3D-5M Inductive sensor

,

NJ10-30GM50-E2-3G-3D-5M

P+F Inductive sensor NJ10-30GM50-E2-3G-3D-5M NO Switching Function Flush Installation
Key Specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 10 mm
Installation flush
Operating voltage 10 ... 30 V DC
Connection type cable
Detailed Technical Specifications
Assured operating distance 0 ... 8.1 mm
Actual operating distance 9 ... 11 mm typ. 10 mm
Reduction factors rAl: 0.32, rCu: 0.3, r304: 0.66, rBrass: 0.4
Output type 3-wire
Switching frequency 0 ... 1300 Hz
Hysteresis 3 ... 15 % typ. 6 %
Protection Reverse polarity protected, short-circuit protection (pulsing)
Voltage drop ≤ 3 V (1 ... 2 V typ. 1.5 V at IL = 200 mA)
Operating current ≤ 200 mA
Environmental & Mechanical Specifications
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Housing material Stainless steel 1.4305 / AISI 303
Sensing face PBT
Degree of protection IP66 / IP67
Cable specifications 5 m length, 3 cores, 0.75 mm² cross section, PVC grey
Dimensions 50 mm length, 30 mm diameter
Weight 439 g
Certifications & Approvals
  • EN IEC 60947-5-2 compliant
  • IECEx approved (TUR 21.0017X, TUR 21.0018X)
  • ATEX approved (TÜV 20 ATEX 8523 X, TÜV 20 ATEX 8524 X)
  • cULus Listed, General Purpose, Class 2 Power Source
  • CCC approved for Hazardous Location
