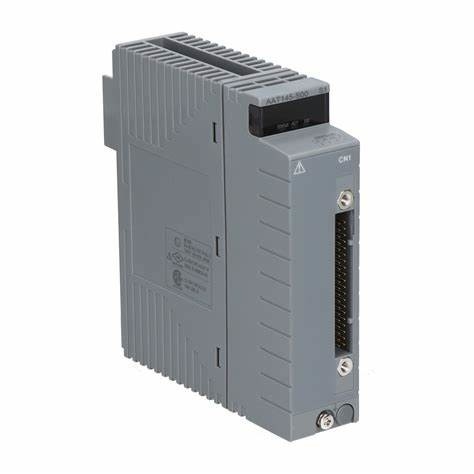

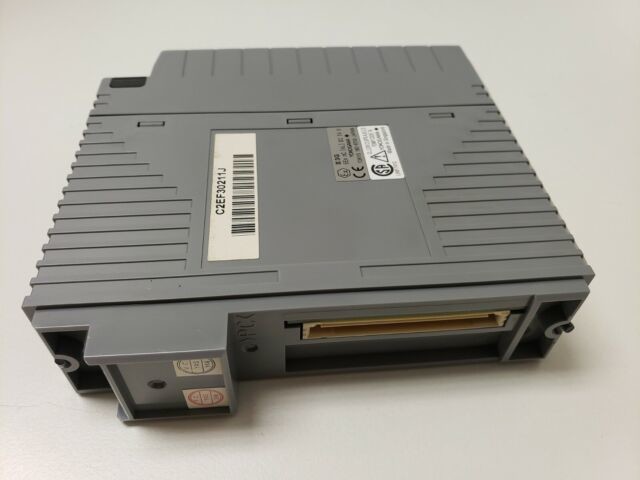

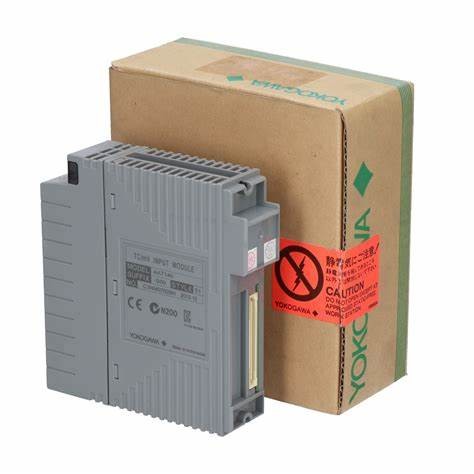

16 Channel Analog Input Module AAT145-S00 YOKOGAWA Isolated Channels

Large Image : 16 Channel Analog Input Module AAT145-S00 YOKOGAWA Isolated Channels

Product Details:

Place of Origin:	Indonesio
Brand Name:	YOKOGAWA
Certification:	CE
Model Number:	AAT145-S00

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

16 Channel Analog Input Module AAT145-S00 YOKOGAWA Isolated Channels

Description

Manufacturers:	Yokogawa	Number Of Input Channels:	16, Isolated Channels
Input Signal:	TC: JIS C1602:1995 (1), IEC584:1995 Type J, K, E, B (2), R, S, T, N MV: -100 To 150 MV, -20 To 80 MV	Switching Input Signals:	TC/mV Can Be Set Individually For CH1 To CH16
Allowable Input Voltage:	±5 V	Weight:	0.3 Kg
Highlight:	16 Channel Analog Input Module , Analog Input Module AAT145-S00 , YOKOGAWA isolated channels

16 Channel YOKOGAWA Flex Io Analog Input MODULE AAT145-S00

Key Specifications

Manufacturer	Yokogawa
Number of input channels	16, isolated channels
Input signal	TC: JIS C1602:1995 (1), IEC584:1995 Type J, K, E, B (2), R, S, T, N mV: -100 to 150 mV, -20 to 80 mV
Switching input signals	TC/mV can be set individually for CH1 to CH16
Allowable input voltage	±5 V
Weight	0.3 kg

Product Overview

The YOKOGAWA ANALOG INPUT MODULE AAT145-S00 receives signals from mV, thermocouple (TC), RTD, and potentiometer (POT). These modules feature isolation between the field and the system as well as between each channel, and can be configured for dual-redundant operation.

Technical Specifications

Specification	AAT145	AAR145
Number of input channels	16, isolated channels	16, isolated channels
Input signal	TC: JIS C1602:1995 (1), IEC584:1995 Type J, K, E, B (2), R, S, T, N mV: -100 to 150 mV, -20 to 80 mV	RTD: JIS C1604:1997 (*3), IEC751:1995 Pt100 (3-wire type) POT: Total resistance 100 Ω to 10 kΩ Span resistance: 50% or larger of total resistance
Switching input signals	TC/mV can be set individually for CH1 to CH16	RTD/POT can be selected individually for CH1 to CH16
Withstanding voltage	Between input and system: 500 VAC (for single card: 1500 VAC), For 1 minute Between input channels: 200 VAC, For 1 minute
Input resistance	Power ON: 1 MΩ or larger Power OFF: 1 MΩ or larger
Accuracy	±40 µV	RTD: ±150 mΩ POT: ±0.2 %/FS
Measurement current		RTD: 1 mA
Data update period	1 s
Temperature drift	±80 µV/10 °C	RTD: ±0.3 Ω/10 °C POT: ±0.4 %/10 °C
Maximum current consumption	350 mA (5 V DC)

Related Part Numbers

AAI135-S00 AAI143-H00 AAI143-H53 AAI143-S50 AAI543-S00 AAI835-H00 AAI835-H00/K4A00 AAI835-S00 AAI835-S50 AAM51 AAT145-S00 ACCC01 ACM12 ADM11c ADM12 ADM52C ADV151-P00 ADV151-P50/D5A00 ADV151-P63 ADV151-P63/D5A00 ADV159-P00 ADV551 ADV551-P50/D5A00 ADV551-P63
