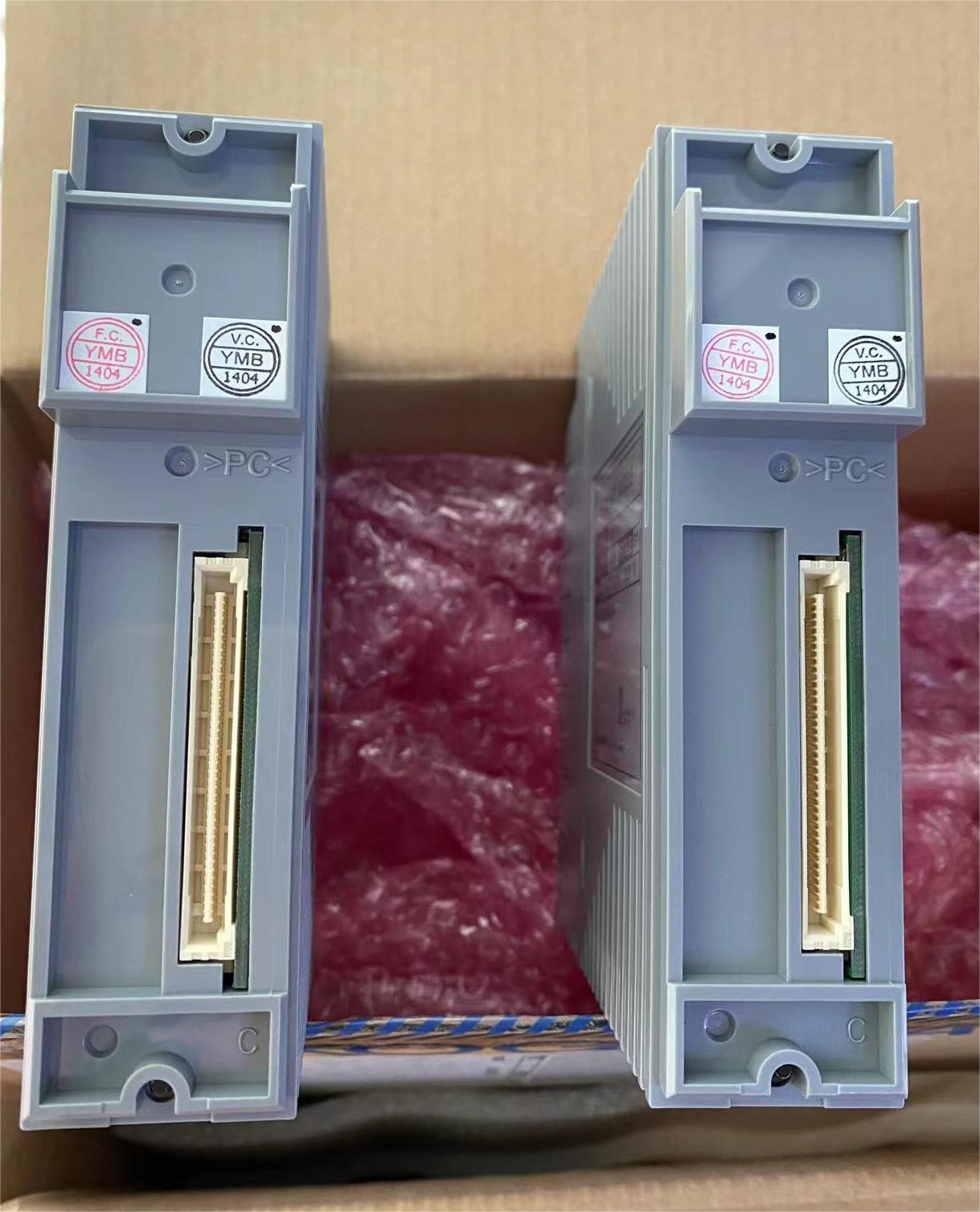

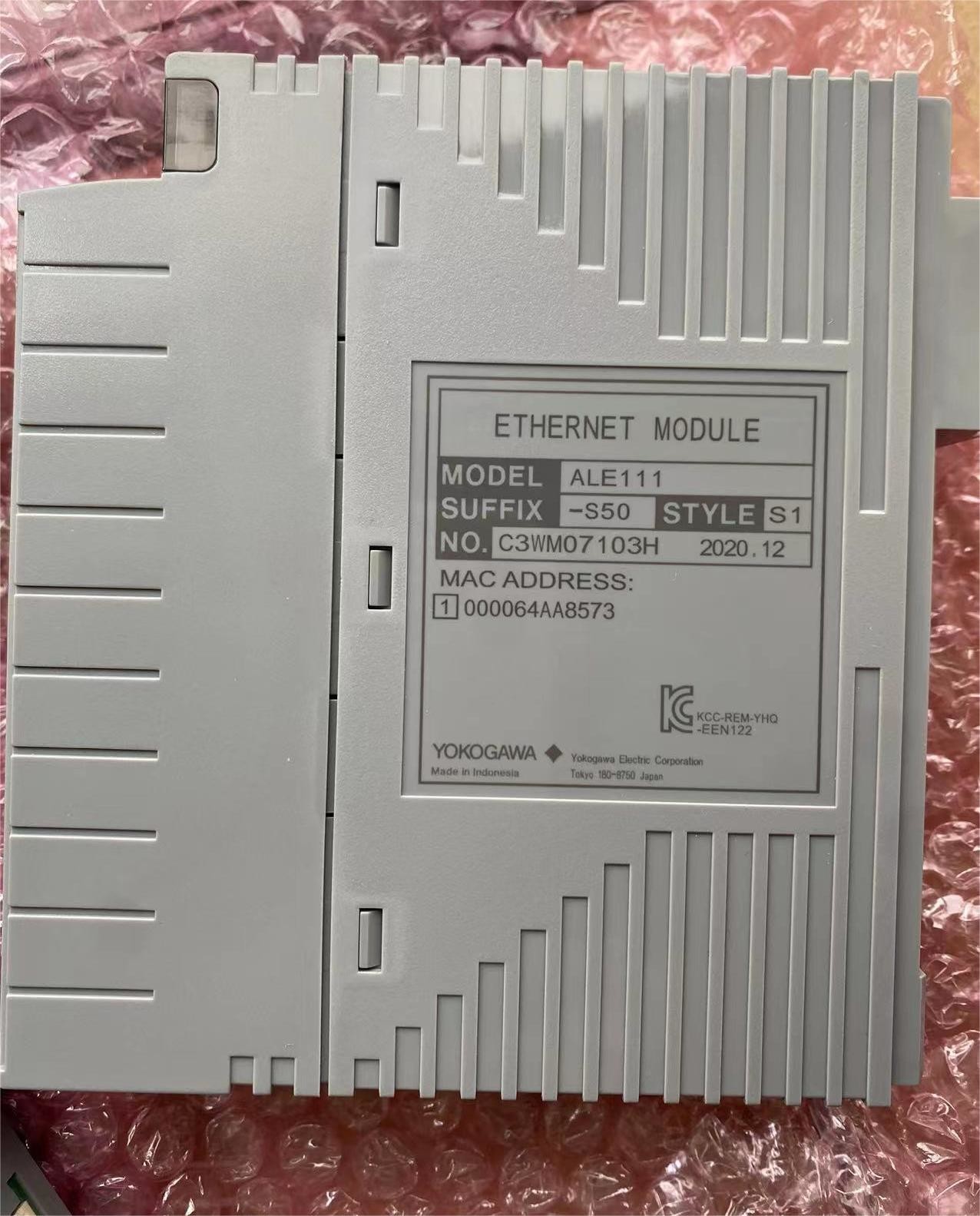

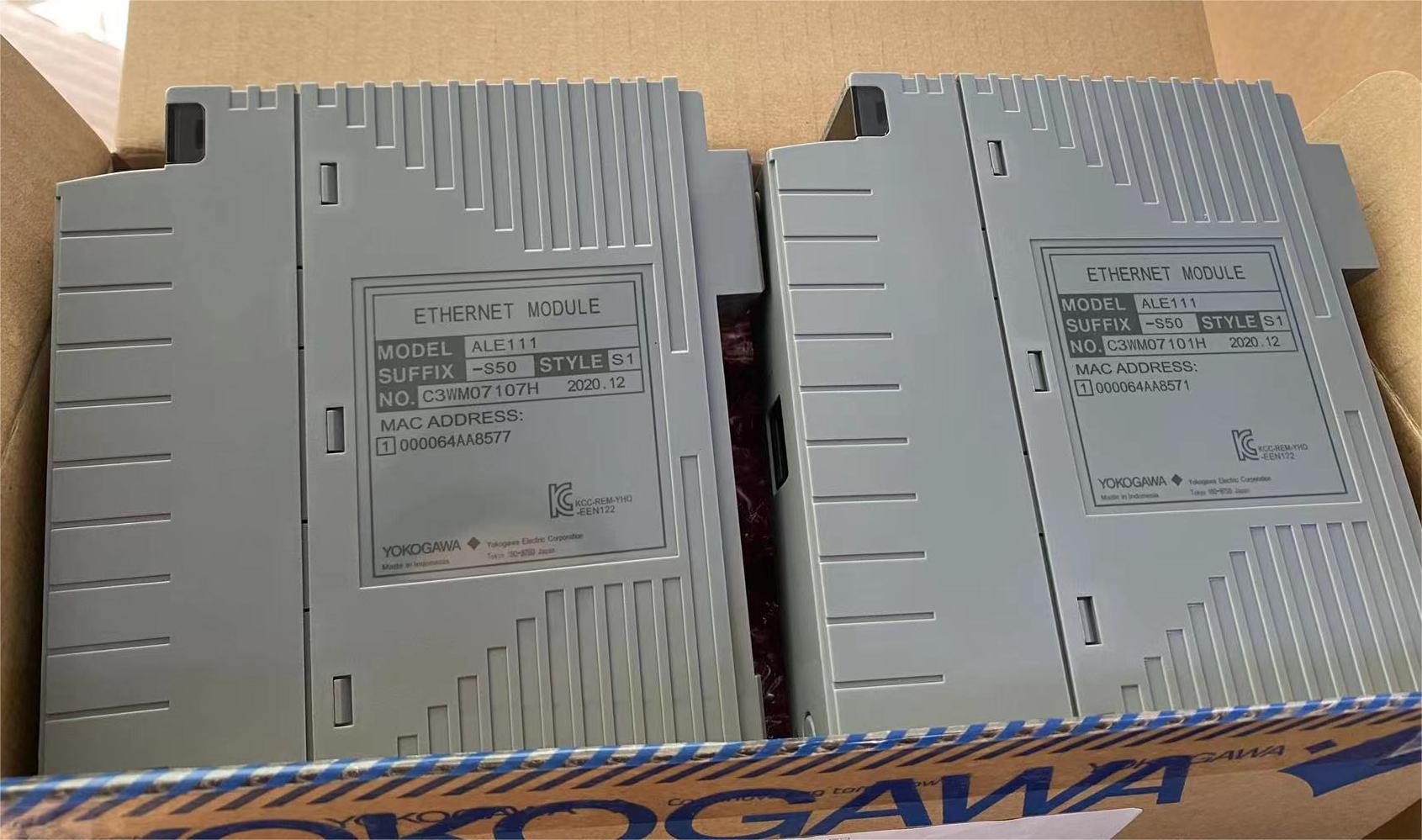

Yokogawa ALE111-S50 RJ45 Ethernet Module 10 Mbps Half-Duplex

Yokogawa ALE111-S50 RJ45 Ethernet Module 10 Mbps Half-Duplex
Yokogawa ALE111-S50 RJ45 Ethernet Module 10 Mbps Half-Duplex Yokogawa ALE111-S50 RJ45 Ethernet Module 10 Mbps Half-Duplex Yokogawa ALE111-S50 RJ45 Ethernet Module 10 Mbps Half-Duplex

Large Image :  Yokogawa ALE111-S50 RJ45 Ethernet Module 10 Mbps Half-Duplex

Product Details:
Place of Origin: Indonesia
Brand Name: YOKOGAWA
Certification: CE
Model Number: ALE111-S50
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

Yokogawa ALE111-S50 RJ45 Ethernet Module 10 Mbps Half-Duplex

Description
Manufacturers: Yokogawa Physical Layer Interface: IEEE802.3 10BASE-T
Connection Method: Point-to-point Connector: RJ-45
Transmission Method: Half-duplex Transmission Speed: 10 Mbps
Current Consumption: 0.5 A Weight: 0.3 Kg
Highlight:

RJ45 Ethernet Communication Module

,

YOKOGAWA Ethernet Communication Module

,

ALE111-S50

RJ45 YOKOGAWA Ethernet Communication Module ALE111-S50
Product Specifications
Attribute Value
Manufacturers Yokogawa
Physical layer interface IEEE802.3 10BASE-T
Connection method Point-to-point
Connector RJ-45
Transmission method Half-duplex
Transmission speed 10 Mbps
Current consumption 0.5 A
Weight 0.3 kg
Product Description

The YOKOGAWA ALE111-S50 Ethernet Communication Module enables field control stations (FCS) to perform Ethernet communication with subsystems like FA-M3. This module is compatible with various Yokogawa control units including AFV30, AFV40, AFV10, AFF50, ANB10, ANB11, and ANR10 models.

Yokogawa ALE111-S50 RJ45 Ethernet Module 10 Mbps Half-Duplex 0
Hardware Specifications
Item Specifications
Physical layer interface IEEE802.3 10BASE-T
Connection method Point-to-point
Connector RJ-45
Transmission method Half-duplex
Transmission speed 10 Mbps
Transmission route 100 ohm twisted-pair cable (not shielded)
Transmission distance 1 segment, 100 m (between FCS and subsystems, or HUB and subsystems)
Installation method Mounted on ANB10, ANB11, ANR10, AFF50, AFV10, AFV30, or AFV40
No. of ports One port
Media access control CSMA/CD
Communication functions Communications with FA-M3, Modbus, MELSEC, YFGW, DARWIN/DAQSTATION, and PLC-5/SLC500
Current consumption 0.5 A
Weight 0.3 kg
Related Part Numbers
AED5D-00 AIP601 AIP826 AIP827-2 AIP830-101 AIP830-101-EIM-VESA AKB331-M020 ALE111-S50 ALE111-S51 ALR121-S00 AMN33 ATD5A-00 ATK4A-00 AX01C-C010-CH AX01C-C015/CH AXG080-GA000AA1AH112B-2JA11-CH AXG100-GG000BA1AH114B-NNNNNCH AXG150-CGNF2AA2AH214BNNNNN-GRH-CH-L2 AXG4A AXG4A-CNF2121JA11/CH AXG4A-CNF2141JA11-CH-L2 AXG4A-G000141JA12-CH BT200-N00 CP451-10 DO30G E7042UD
Yokogawa ALE111-S50 RJ45 Ethernet Module 10 Mbps Half-Duplex 1
