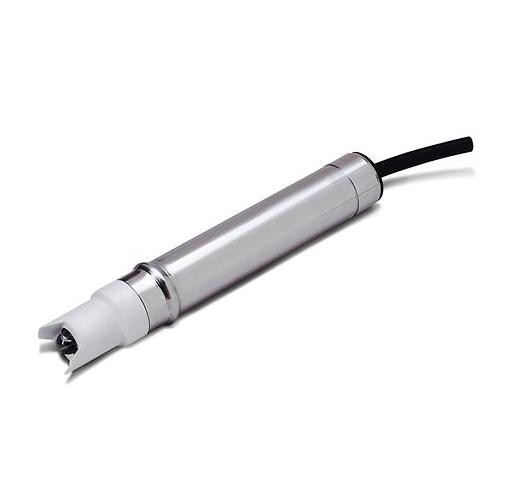

CE Rosemount Ph Sensor Emerson 396 For Submersion / Insertion

CE Rosemount Ph Sensor Emerson 396 For Submersion / Insertion
CE Rosemount Ph Sensor Emerson 396 For Submersion / Insertion CE Rosemount Ph Sensor Emerson 396 For Submersion / Insertion CE Rosemount Ph Sensor Emerson 396 For Submersion / Insertion

Large Image :  CE Rosemount Ph Sensor Emerson 396 For Submersion / Insertion

Product Details:
Place of Origin: Mexico
Brand Name: Rosemount
Certification: CE

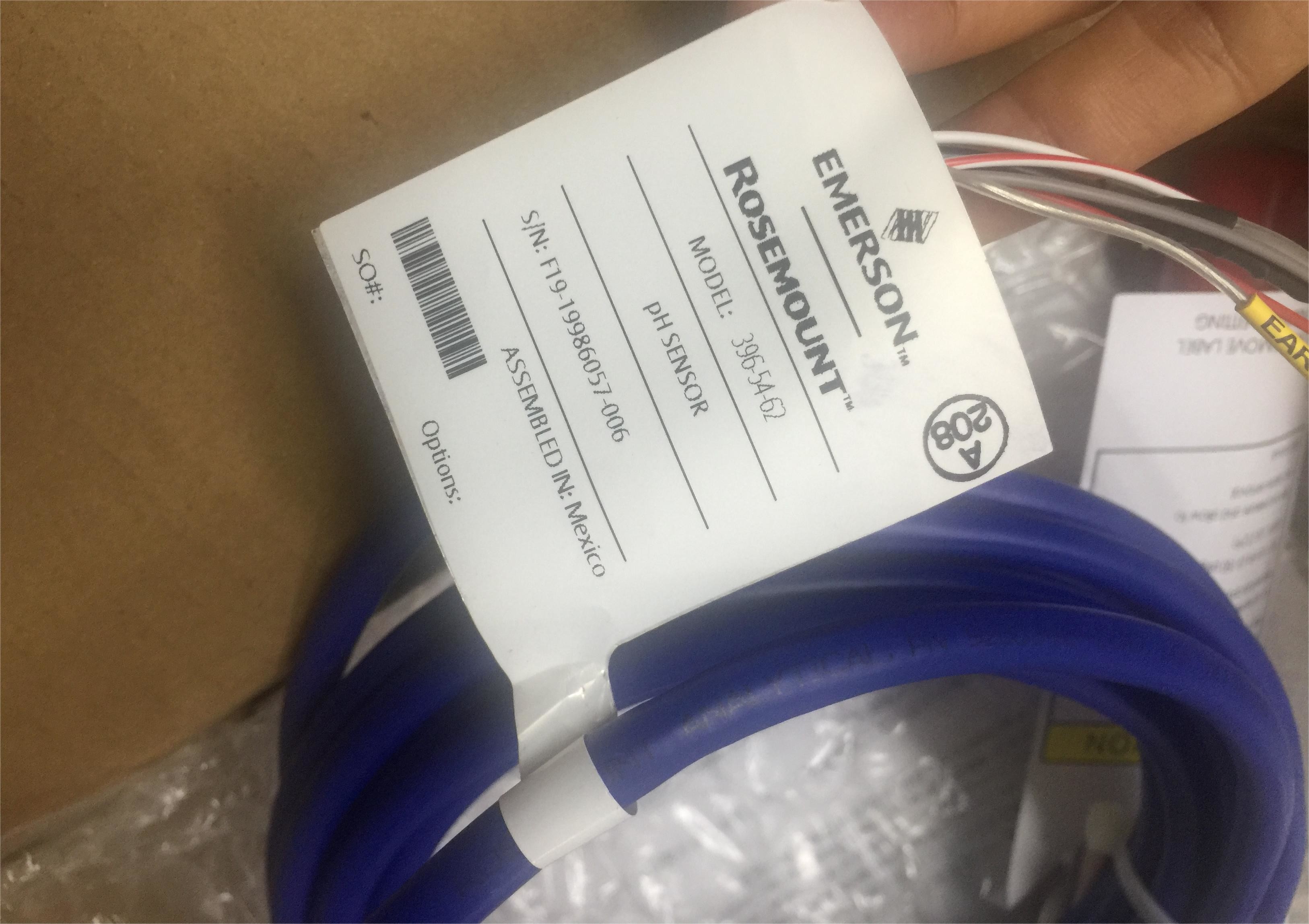

Model Number: 396-54-62
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

CE Rosemount Ph Sensor Emerson 396 For Submersion / Insertion

Description
Measurements And Ranges: PH: 0 To 14 Available PH ACCUGLASS Types: GPHT Hemi Bulb Or GPHT Flat Bulb
Wetted Materials: 316 Stainless Steel, Polypropylene, EPDM, Glass Process Connection: None, Use 1 In (25 Mm) NPT Process Connector, PN 23166-00 Or 23166-01 (sold Separately)
Temperature Range: 32.0 °F (0 °C) To 212.0 °F (100 °C) Pressure Range-hemi Bulb: 0 Psig (0.00 Barg) To 150 Psig (10.34 Barg)
Pressure Range-flat Bulb: 0 Psig (0.00 Barg) To 100 Psig (6.89 Barg) Weight/shipping Weight: 1 Lb (0.5 Kg)/2 Lb (0.9 Kg)
Highlight:

ce rosemount ph sensor

,

rosemount ph sensor emerson 396

,

ce ph sensor emerson

396-54-62 Emerson Rosemount Transmitter Rosemount 396 Submersion/Insertion pH Sensor
Product Specifications
Attribute Value
Measurements and ranges pH: 0 to 14
Available pH ACCUGLASS types GPHT hemi bulb or GPHT flat bulb
Wetted materials 316 stainless steel, polypropylene, EPDM, glass
Process connection None, use 1 in (25 mm) NPT process connector, PN 23166-00 or 23166-01 (sold separately)
Temperature range 32.0 °F (0 °C) to 212.0 °F (100 °C)
Pressure range-hemi bulb 0 psig (0.00 barg) to 150 psig (10.34 barg)
Pressure range-flat bulb 0 psig (0.00 barg) to 100 psig (6.89 barg)
Weight/shipping weight 1 lb (0.5 kg)/2 lb (0.9 kg)
Rosemount 396 Submersion/Insertion pH Sensor 396-54-62
TUpH sensors for tough pH/oxidation reduction potential (ORP) applications

Rosemount TUpH pH/ORP sensors are robust sensors designed to meet a number of difficult application requirements. Sensors feature a variety of options suited to meet a number of installation requirements and are ideal for use in dirty, abrasive, coating, and high solid applications.

Rosemount 396 Ordering Information
Model
396 pH sensor: TUpH® insertion/submersion/flow-through
Cable Termination
54 For use with Rosemount 56, 1056, 1066, 1057, and 5081
Option 1
_ No selection, standard 15 ft (4.57 m) cable
62 Cable without BNC for direct wiring to Rosemount 56, 1056, 1057, 1066, and 5081
07 Without preamplifier, 4 ft (1.22 m) cable
08 Without preamplifier, 10 ft (3.05 m) cable
Option 2
_ No selection
71 GPHT flat bulb
Calibration and Conformance Certificates - Optional Level
CC Certificate of Calibration (no test data given)
LC Loop Calibration Certificate (sensor and transmitter calibrated together with test data)
EC Electronic Calibration Certificate (sensor calibrated against factory instrument with test data)
Related Part Numbers
1056-01-22-38-AN 1056-01-25-38-AN 1056-02-20-38 1056-03-22-32-AN 1056面板 1057-02-20-32-42 1066-CL-HT-73 1066-P-HT-73 3900-01-10 3900-02-103 3900-10-01 3900VP-01-10 4847B61G01 5081-P-HT-20-73 21501-08 23242-02 23294-00-99 23502-08 23554-00 23820-00 24091-00 24263 33521-00 33523-00 211001L1NAQ4 499ACL-01-54-VP
