Emerson Rosemount Transmitter 333 HART Tri Loop Signal Converter 333U

Emerson Rosemount Transmitter 333 HART Tri Loop Signal Converter 333U
Emerson Rosemount Transmitter 333 HART Tri Loop Signal Converter 333U Emerson Rosemount Transmitter 333 HART Tri Loop Signal Converter 333U Emerson Rosemount Transmitter 333 HART Tri Loop Signal Converter 333U Emerson Rosemount Transmitter 333 HART Tri Loop Signal Converter 333U

Large Image :  Emerson Rosemount Transmitter 333 HART Tri Loop Signal Converter 333U

Product Details:
Place of Origin: Thailand
Brand Name: Rosemount
Certification: CE
Model Number: 333U
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

Emerson Rosemount Transmitter 333 HART Tri Loop Signal Converter 333U

Description
Output Signal: 3 Additional Analog Signals Ambient Temperature Effect: ±0.15% Of Span
Stability: ±0.1% Of Span For 12 Months Ambient: 50 To 104 °F (10 To 40 °C)
Storage: –40 To 158 °F (–40 To 70 °C) Reference Accuracy: ±0.045% Of Span
Dimensions: 1.57 X 3.11 X 3.36 In. (40 X 79 X 85.5 Mm) Weight: 0.27 Lb (0.12 Kg)
Highlight:

emerson rosemount transmitter 333 hart

,

333u emerson rosemount transmitter

,

333u rosemount 644 temperature transmitter

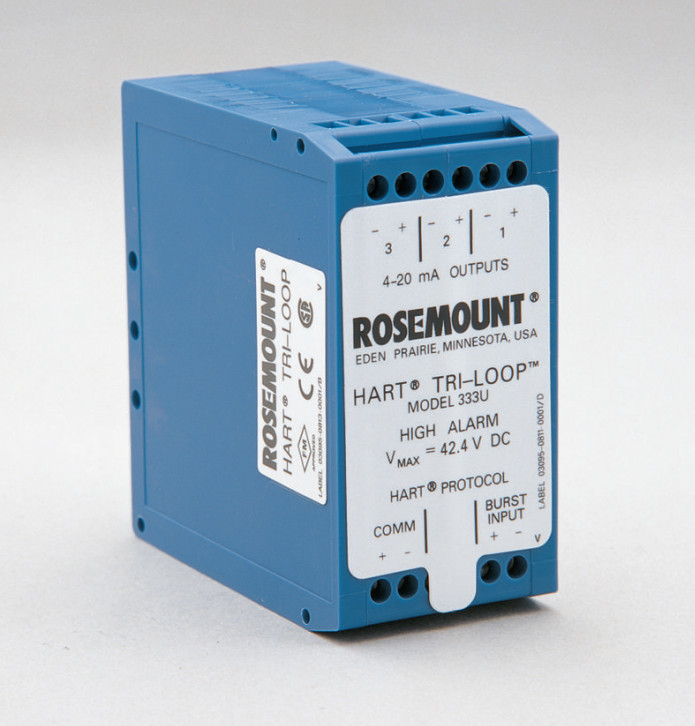

Emerson Rosemount Transmitter 333 HART® Tri-Loop™ Signal Converter
The Rosemount 333 HART Tri-Loop Signal Converter provides three additional analog outputs by converting a digital HART multivariable signal into three independent 4-20 mA analog process variables. This eliminates the need for additional transmitters and wiring. Available in high-alarm or low-alarm configurations, it features DIN rail mount options and electrically isolated analog output channels for flexible system integration.
Product Specifications
Attribute Value
Output Signal 3 additional analog signals
Ambient Temperature Effect ±0.15% of span
Stability ±0.1% of span for 12 months
Ambient Temperature Range 50 to 104 °F (10 to 40 °C)
Storage Temperature Range –40 to 158 °F (–40 to 70 °C)
Reference Accuracy ±0.045% of span
Dimensions 1.57 x 3.11 x 3.36 in. (40 x 79 x 85.5 mm)
Weight 0.27 lb (0.12 kg)
Model Configuration
Base Model
Code Description
333 HART® Tri-Loop™
Alarm Options
Code Description
U High alarm
D Low alarm
Configuration Options
Code Description
C2 Custom configuration (Configuration Data Sheet must be completed)
Dimensional Drawing
Emerson Rosemount Transmitter 333 HART Tri Loop Signal Converter 333U 0
Related Part Numbers
1056-01-22-38-AN
1056-01-25-38-AN
1056-02-20-38
1056-03-22-32-AN
1057-02-20-32-42
1066-CL-HT-73
1066-P-HT-73
3900-1-10
3900-02-103
3900-10-1
3900VP-01-10
4847B61G01
5081-P-HT-20-73
21501-08
23242-02
23294-00-99
23502-08
23554-00
23820-00
24091-00
24263
33521-00
33523-00
211001L1NAQ4
499ACL-01-54-VP
Emerson Rosemount Transmitter 333 HART Tri Loop Signal Converter 333U 1
