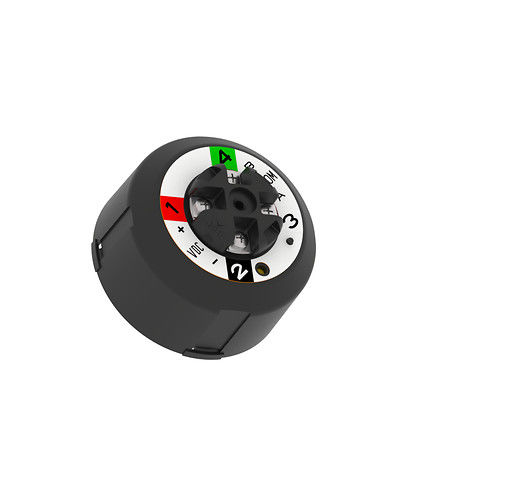

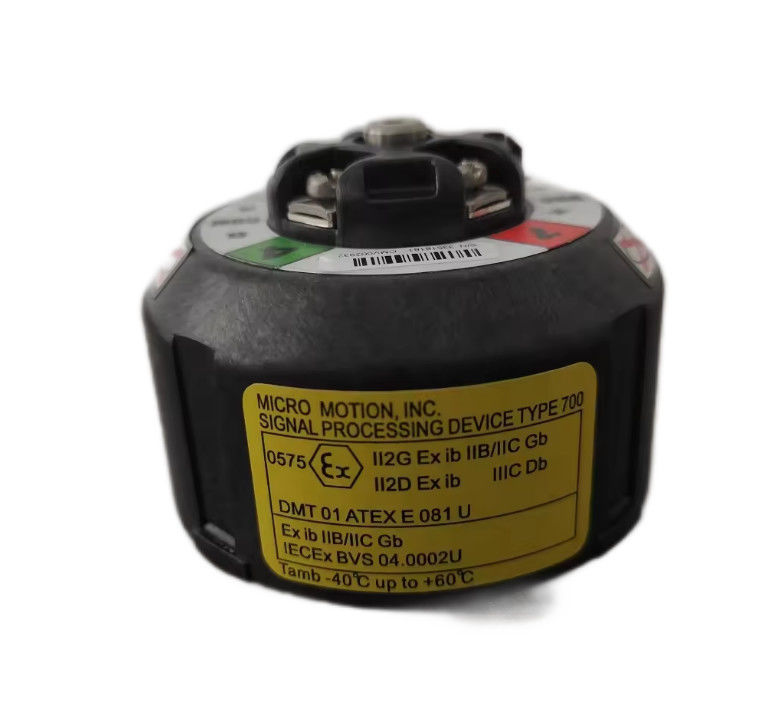

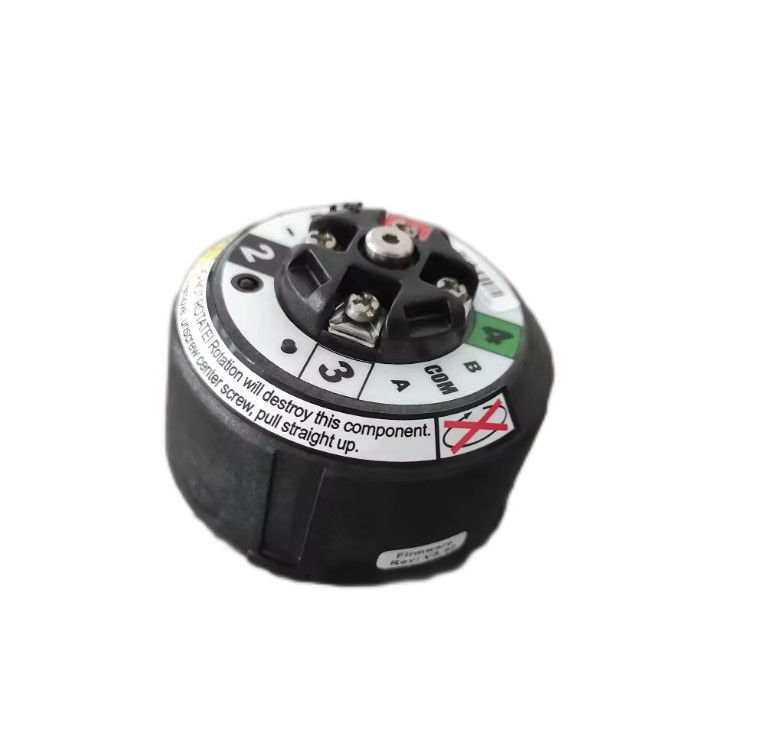

Micro Motion TYPE700 Core Processor Assembly For Emerson Flow Meters

Process connections: DN40 PN40

Case options: Compact case

Electronics interface: 4-wire polyurethane-painted aluminum integral enhanced core processor for remote mount transmitters

Conduit connections: M20 brass/nickel cable gland Cable diameter 0.335 in (8.5 mm) to 0.394 in (10.0 mm)

Model: FVM

Sensor calibration range and performance: Viscosity accuracy ±0.2 cP (0-10 cP range) then ±1% of FS of calibrated range, viscosity limit 20, 000 cP

Stem length: 0 mm: no stem extension and with standard spigot

Materials of wetted parts (including process connection): 316L stainless steel, electro-polished tines

manufacturer: Micro Motion

Model Number: TYPE800

Type: core processor

Medium temperature: -40-60

Model: F025

Process connections: 0.5 in CL150 ASME B16.5 F316/F316L Weld neck flange Raised face

Case options: Compact case

Electronics interface: For integrally mounted 1700 or 2700 transmitter

Output options: Intrinsically safe analog outputs – two mA, one frequency

Installation types: Remote mount 9-wire (painted aluminum housing)

Wire gauge: Not applicable

Maximum length: 60 ft (20 m)
