Analogue output MTL7700 DIN Rail Safety Barrier MTL7787+ For 4/20mA Transmitters

Large Image : Analogue output MTL7700 DIN Rail Safety Barrier MTL7787+ For 4/20mA Transmitters

Product Details:

Place of Origin:	India
Brand Name:	MTL
Certification:	CE
Model Number:	MTL7787+

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Analogue output MTL7700 DIN Rail Safety Barrier MTL7787+ For 4/20mA Transmitters

Description

TYPE:	Analogue Output	Application:	Transmitters, 2-wire, 4/20mA
Maximum Safe-area Voltage:	250V AC/DC	Weight:	140g Approx
Mounting And Earthing:	By 35mm Top Hat DIN Rail	Casing Material:	Polycarbonate
Highlight:	MTL7700 DIN Rail Safety Barrier , Safety Barrier MTL7787+ , mounting Safety Barriers

MTL7700 Range DIN-rail Mounting Safety Barriers MTL7787+

Product Specifications

Attribute	Value
TYPE	Analogue output
Application	Transmitters, 2-wire, 4/20mA
Maximum safe-area voltage	250V AC/DC
Weight	140g approx
Mounting and earthing	By 35mm Top Hat DIN rail
Casing Material	Polycarbonate

Product Overview

Since its introduction in 1984, the MTL700 range has established itself as the worldwide standard for safety barriers. Known for its quality and reliability, the MTL700 range is widely used in applications across the globe.

The MTL7700 range builds upon this legacy as a DIN rail mounting barrier, offering quick and easy installation without requiring special hardware.

Key Features

Removable terminals for easy installation and maintenance
Loop disconnect capability by simply unplugging terminals
Angled wire entry for simplified wiring in limited space enclosures
Secure clamping onto standard T-section DIN rail
Reliable IS earth connection integrated with mounting

MTL7700 Range Key Barriers

TYPE	APPLICATION	KEY BARRIER
Analogue input (low-level)	Resistance temperature detectors Thermocouples, ac sensors	7756ac 7760ac
Analogue input (high-level)	Transmitters, 2-wire, 4/20mA	7706+ 7787+
Analogue output	Controller outputs, one line earthed Controller outputs, neither line earthed	7728+ 7787+
Digital (on/off) input	Switches	7787+ 7741/3
Digital (on/off) output	Solenoids, alarms, LEDs	7728

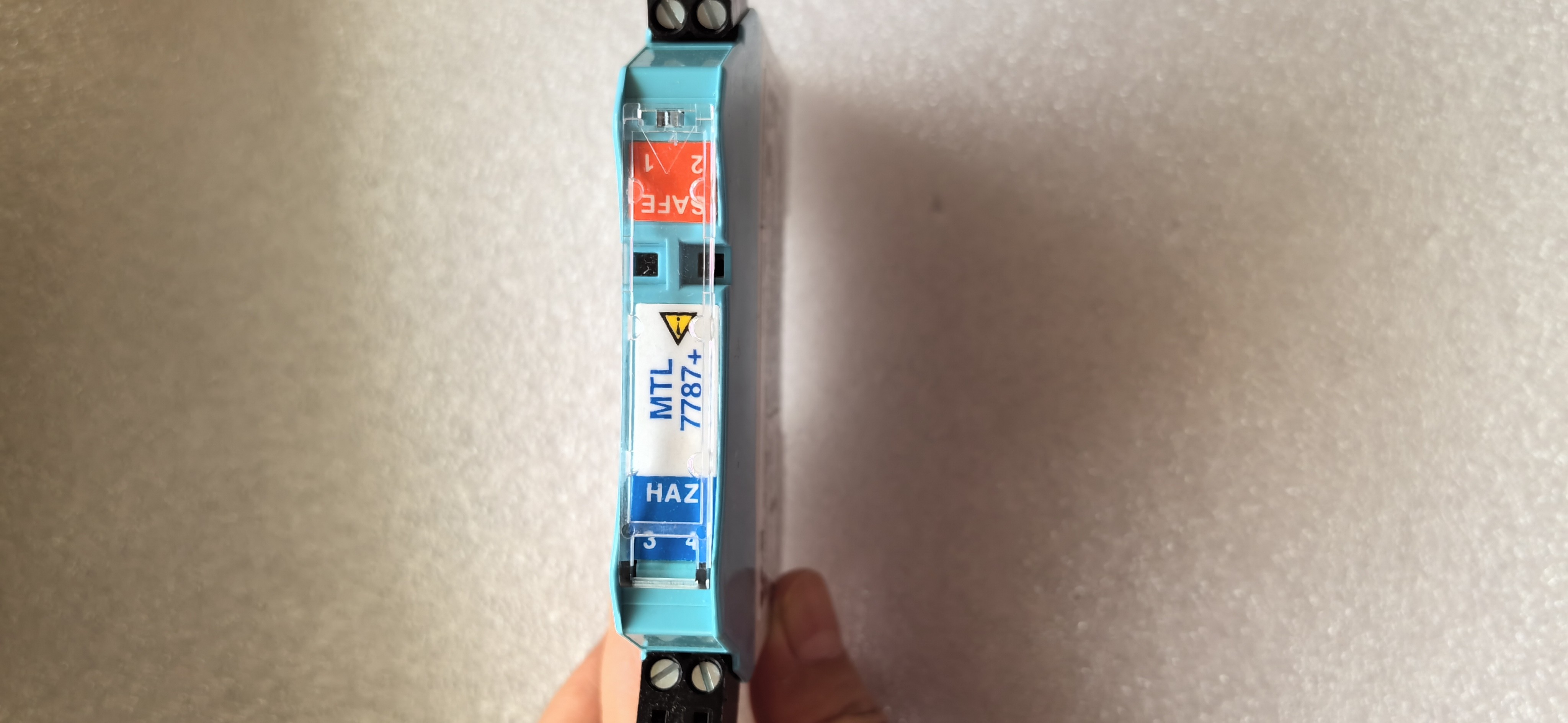

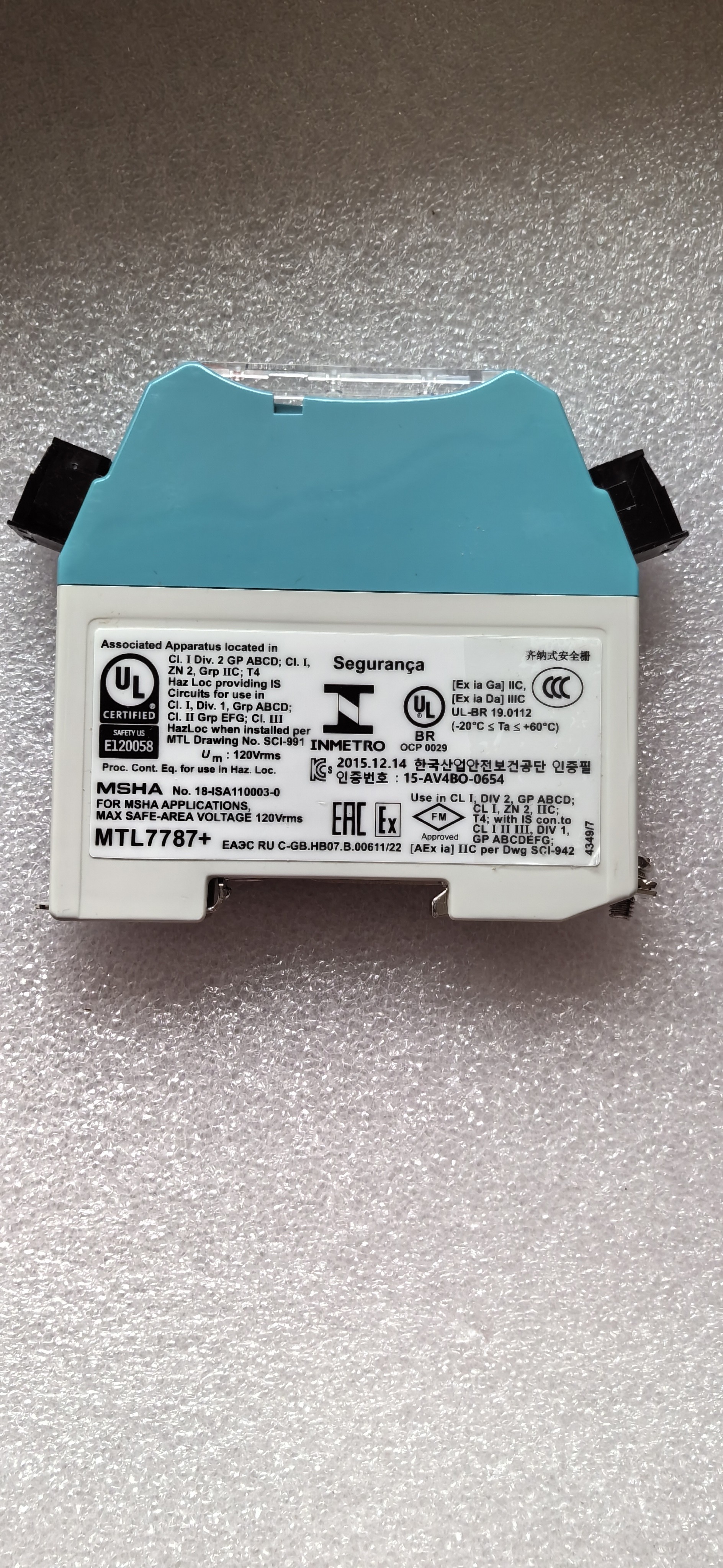

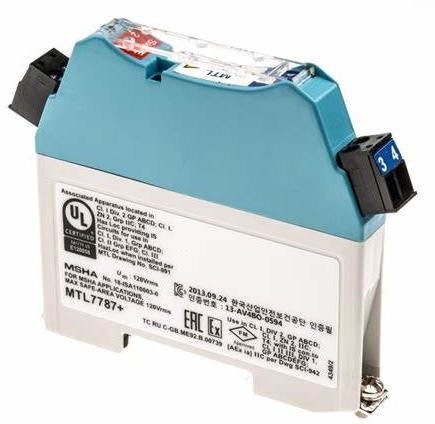

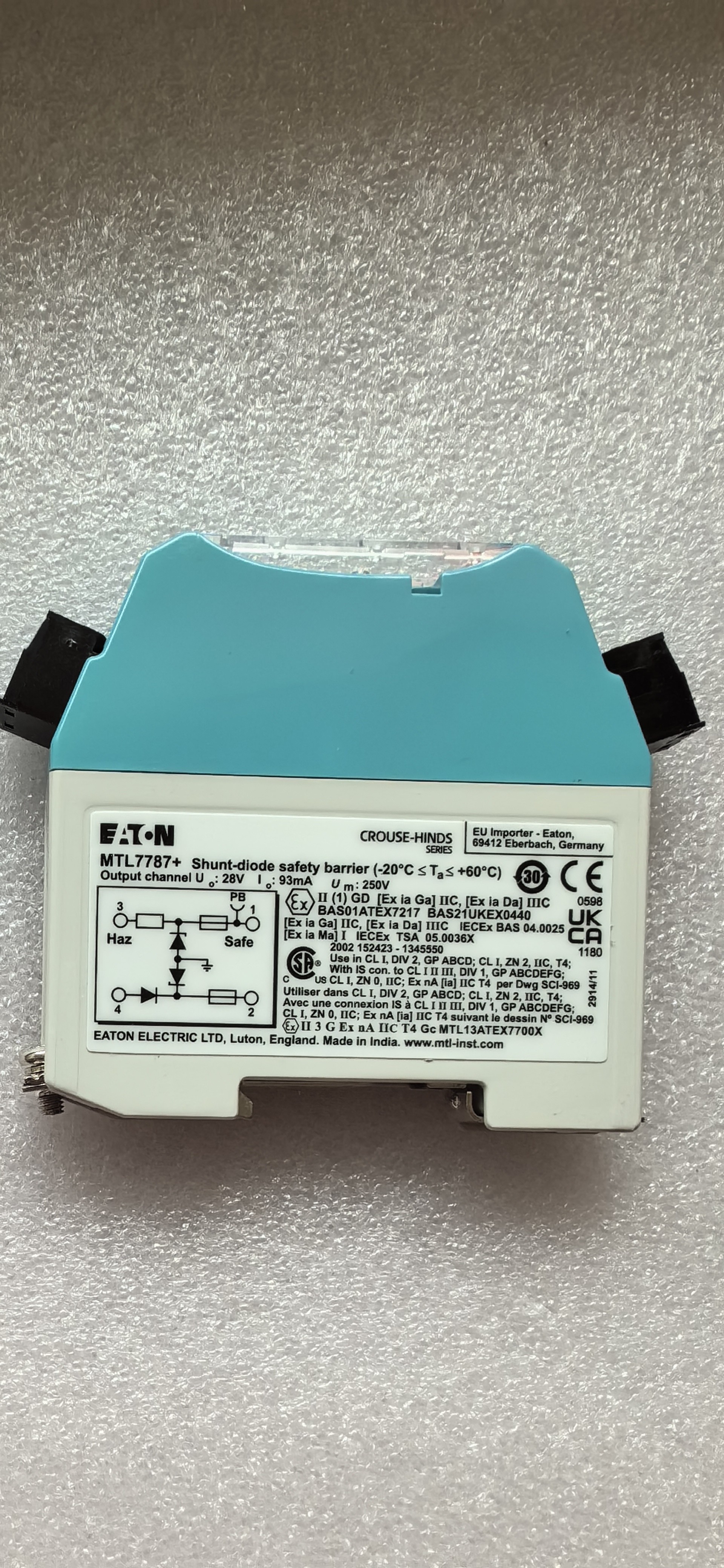

Product Images

Tag:

mtl barriers,

mtl zener barrier,

zener safety barrier

Contact Details

SC Automation Limited

Contact Person: Ms. Joy chen

Tel: +8615012673027

Fax: 86--15012673027
