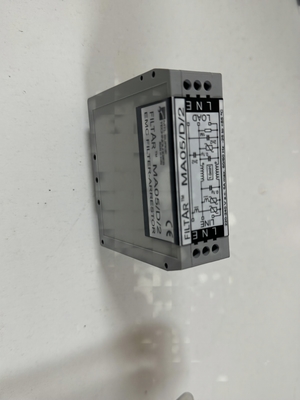

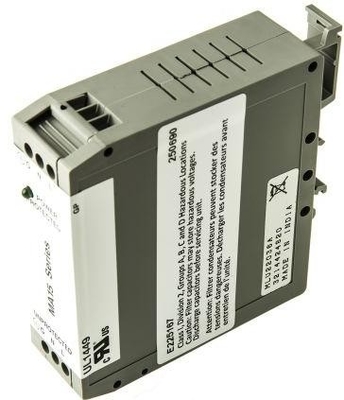

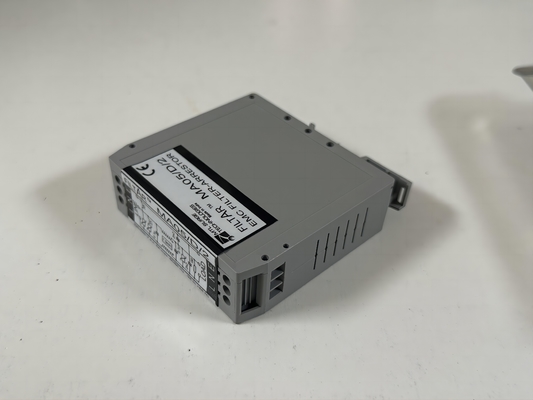

MTL MA05/D/2 DIN Rail Surge Protector MTL Safety Barrier 240V 5A 800V Limiting

Large Image : MTL MA05/D/2 DIN Rail Surge Protector MTL Safety Barrier 240V 5A 800V Limiting

Product Details:

Place of Origin:	India
Brand Name:	MLT
Certification:	CE
Model Number:	A05/D/2

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

MTL MA05/D/2 DIN Rail Surge Protector MTL Safety Barrier 240V 5A 800V Limiting

Description

Maximum Surge Current:	6.5kA (8/20µs)	Maximum Leakage Current:	<0.3mA At Working Voltage
Rated:	5A At 30°C	5A At 30°C:	1A/10°C Above 35°C
Working Voltage:	240V	Limiting Voltage:	<800V
Highlight:	MTL MA05/D/2 , MTL Safety Barrier 240V , Surge Protector MTL Safety Barrier

MTL MA05/D/2 Surge Protection for Limiting Voltage 800V and High Temperature Performance

Product Specifications

Attribute	Value
Maximum surge current	6.5kA (8/20µs)
Maximum leakage current	<0.3mA at working voltage
Rated current	5A at 30°C
Current derating	1A/10°C above 35°C
Working voltage	240V
Limiting voltage	<800V

Product Overview

The MTL surge protection MA05/D/2 combines filtering, surge and ring suppression for comprehensive protection against electrical disturbances on AC power cabling.

High-quality filtering with ring suppression technology
Available in three mounting configurations: Wall/floor (I), DIN-rail (D), or standard filter case (SC)
Includes thermal fuse protection for added safety
Exceeds IEC61000-4-5, level 4 compliance for EMC performance

The MA05 range protects electronic equipment and computer networks against industrial noise and surges caused by lightning, switching devices, thyristor controls, transmission system overloads, and power-factor correction circuits.

Available in multiple configurations: 'SC' models feature safety-shrouded spade terminations in standard filter cans; 'I' units for wall/floor mounting in plastic enclosures with screw terminals; and 'D' models for DIN-rail mounting in control panels.

Ordering Information

MA05/SC/1	'filter-can' 110V, 5Amp
MA10/SC/1	'filter-can' 110V, 10Amp
MA05/SC/2	'filter-can' 240V, 5Amp
MA10/SC/2	'filter-can' 240V, 10Amp
MA05/D/1	'DIN-rail' 110V, 5Amp
MA10/D/1	'DIN-rail' 110V, 10Amp
MA05/D/2	'DIN-rail' 240V, 5Amp
MA10/D/2	'DIN-rail' 240V, 10Amp
MA05/I/1	Wall/floor mounting 110V, 5Amp
MA10/I/1	Wall/floor mounting 110V, 10Amp
MA05/I/2	Wall/floor mounting 240V, 5Amp
MA10/I/2	Wall/floor mounting 240V, 10Amp
