Sensor Radar Vega VEGAPULS 6X For Liquid Level Measurement 120m Range

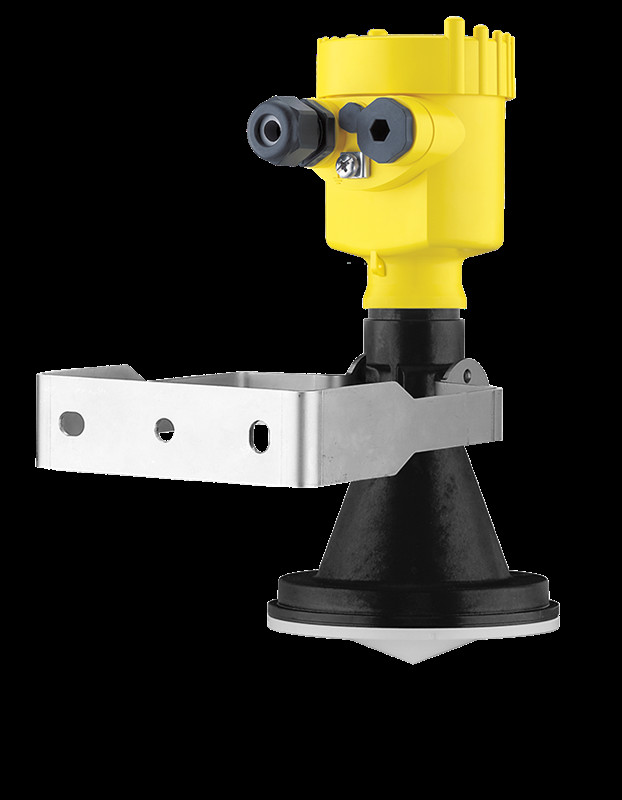

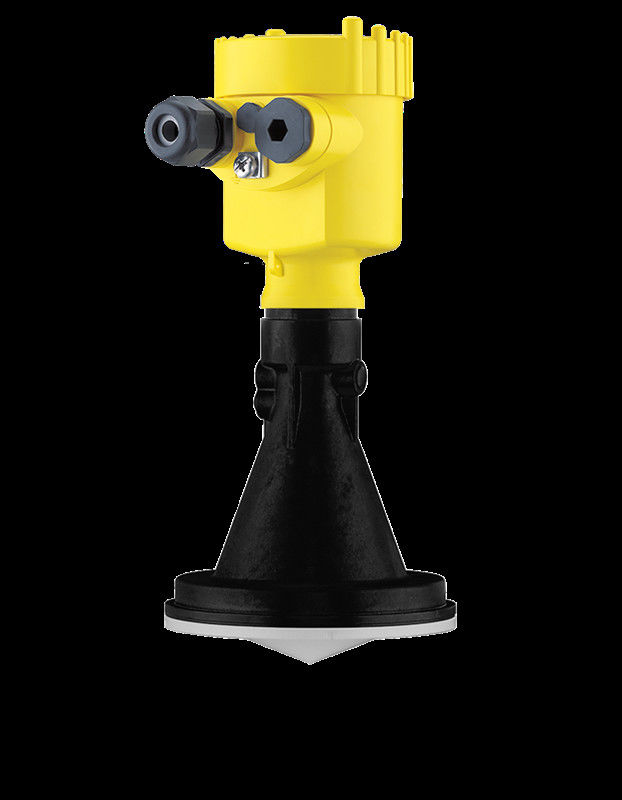

Large Image : Sensor Radar Vega VEGAPULS 6X For Liquid Level Measurement 120m Range

Product Details:

Place of Origin:	Germany
Brand Name:	VEGA
Certification:	ATEX
Model Number:	PS61

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Sensor Radar Vega VEGAPULS 6X For Liquid Level Measurement 120m Range

Description

Measuring Range - Distance:	120 M [Meter - Foot]	Process Temperature:	-196 ... 450 °C [°C - °F]
Process Pressure:	-1 ... 160 Bar [Bar - KPa - Psi]	Accuracy:	± 1 Mm
Frequency:	6 GHz 26 GHz 80 GHz	Beam Angle:	≥ 3°
Highlight:	Sensor Radar Vega VEGAPULS 6X , Liquid Level Sensor Radar Vega , vega 6x radar 160bar

VEGAPULS VEGA Instrumentation 6X Radar Sensor For Continuous Level Measurement

Product Specifications

Attribute	Value
Measuring range - Distance	120 m [Meter - Foot]
Process temperature	-196 ... 450 °C [°C - °F]
Process pressure	-1 ... 160 bar [Bar - kPa - psi]
Accuracy	± 1 mm
Frequency	6 GHz / 26 GHz / 80 GHz
Beam angle	≥ 3°

Product Description

VEGAPULS 6X Radar sensor for continuous level measurement of liquids

Application Area

VEGAPULS 6X is a universal sensor for continuous level measurement of liquids and bulk solids under all process conditions. Its application-oriented configuration and setup provide reliable and economical solutions for all level applications. The variable antenna systems ensure maintenance-free operation.

Key Benefits

Precise measurement results independent of process conditions
Maintenance-free operation through non-contact measuring principle
Application-oriented configuration simplifies device selection

Technical Details

Materials, wetted parts	PTFE, PVDF, 316L, PP, PEEK
Threaded connection	≥ G¾, ≥ ¾ NPT
Flange connection	≥ DN20, ≥ ¾"
Housing material	Plastic, Aluminium, Stainless steel (precision casting), Stainless steel (electropolished)
Protection rating	IP66/IP68 (0.2 bar), IP66/IP67, IP66/IP68 (1 bar), IP69K
Output	Profibus PA, 4-20 mA/HART (two-wire), Modbus, 4-20 mA/HART (four-wire), Ethernet APL
Ambient temperature	-40 to 80 °C

Related Part Numbers

WE61.XXANDRKMX

PS69.IXTTDBHXAJKXX

VB63LXAGDRANX

PS69.AXCSABHXAMKRX

VB62.XXTGCRKMX

PS69.AXCSABHXAMKRX

VB62.XXCGDRKMX

PS68.XXEGD2HKMXX

VB61.XXAGDRKMX

PS68.XXEGD2HKMXK

VB61.XXAGDRAMX

PS68.XXEGD2HKMAX

VB61.XXAGDRAMX

PS68.XXE1Q2BDMAX

VB61.GXAGDRAMX

PS67.XXBXXHAMXX

SONS62.EXXX

PS67.XXBXXH8MXX

SON63.XXACVDMAX

PS67.XXBAEHKNAX

SON62.XXAGHKMXX

PS67.XXBAEHKNAX

SON62.XXAGDRKMX

PS67.XXBAEHKMXX

SON62.CXAGHANAX

PS66.XXHFKHHKMX

SON61.UXANHKNX

PS66.XXHFK3HKMXX

SN64.XXBASVDMAX

PS66.XXHFK2HKMXX

SN62.XXAGVDMXX

PS66.XXHFC2HKMAX

SN62.XXAGHAMAX

PS62.CXDAKHHKNXX

SN61.XXAGHKMXX

PS61.XXBAHHKMXX

SG51.XXSGATPQ

PS61.XXANPHKMAX

CAP62.XXAGARKMX

PS61.XXAGPHAMAX

CAP62.XXAGARAMX

PLICSCOM.XB

BR66.XXANGP1EHTMXX

FX62.AGD1VDMXX

BR64.XXFT1EHVMX

FX61.XXAGB1HKMXX

BR64.XXBA1CHAMXX

FX61.DXAGB1HDMXX

BR52.XXGNIBHKNAE

CP62.XXBGARAMX

BR52.XXGG1DHKMXE

CP62.XXBGARAMX

BR52.XXGG1DHAMAE

CL63.XXFGDHVMXX

BR52.XXFT1RHPMXH

CAP98.XPYDS

BR52.XXBB1THKMXE

BAR53.XXGVXUHAMAX
