43501-01-04-01 Bently Nevada Low Pressure Cable Seal

43501-01-04-01 Bently Nevada Low Pressure Cable Seal
43501-01-04-01 Bently Nevada Low Pressure Cable Seal
43501-01-04-01 Bently Nevada Low Pressure Cable Seal 43501-01-04-01 Bently Nevada Low Pressure Cable Seal
Basic Information
Place of Origin: USA
Brand Name: Bently Nevada
Certification: CE
Model Number: 43501-01-04-01
Document: 3300XL Transducer accessori...es.pdf
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Original packaging
Delivery Time: 12-16 weeks
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now
Band: Bently Nevada Model: 43501-01-04-01
High Pressure Side Thread Size: 1/2-14 NPT Low Pressure Side Thread Size: 1/2-14 NPT
Origin: USA Weight: 500g
Highlight:

Bently Nevada low pressure cable seal

,

Bently Nevada vibration monitoring cable

,

industrial vibration monitoring system cable

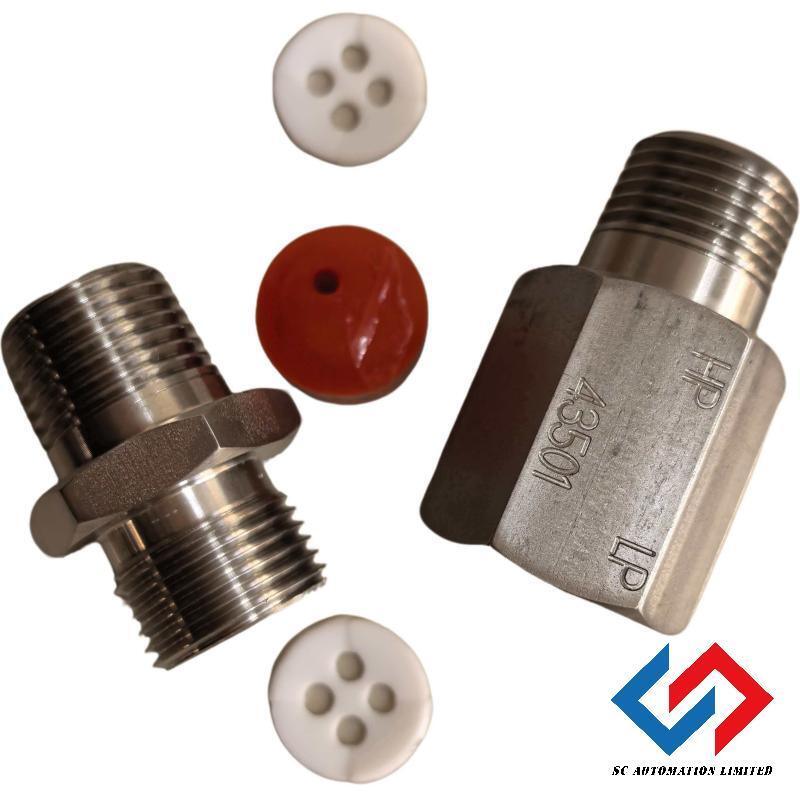

43501-01-04-01  Bently Nevada Low Pressure Cable Seal

The 43501 Low Pressure Cable Seal provides a means to pass through a single hole in a machine case or other barrier one to four 95- ohm transducer cables or one to two 25mm DE and 50mm DE transducer cables. A molded silicone rubber grommet provides a seal to prevent leakage of fluids along the outer jacket of the cable(s). The seal mounts in a hole tapped with either ½-NPT or ¾-NPT pipe threads in the machine and has external pipe threads on both ends to mate to the tapped hole and to mating conduit or housings.

The seal is rated to 345 kPa (50 psi) across grommet high pressure to low pressure. The seal is rated only on the cable outer jacket and seal body itself. It does not seal leaks through the cable braid or center conductor due to pinholes or cuts in the cable jacket or through the probe or connector. The primary intended usage is to seal lube oil to exit bearing housings and machine cases.

The seal is rated to 1.0 psi absolute, but is limited in practice by the cable, probe, and connector as with pressure.

Ordering Information


43501-AXX-BXX-CXX
A: High Pressure Side Thread Size
01 1/2-14 NPT
02 3/4-14 NPT
B:Cable Grommet and Washer
00 Solid grommet (no holes). Holes must be punched in grommet.
02

Grommet will accommodate up

to two 25mm and 50mm DE

cables. One hole is punched

and one is partially pre-drilled.
04

Grommet will accommodate up

to 4 cables. One hole is punched

and three are partially pre-

drilled
C:Low Pressure Side Thread Size
01 1/2-14 NPT
02 3/4-14 NPT

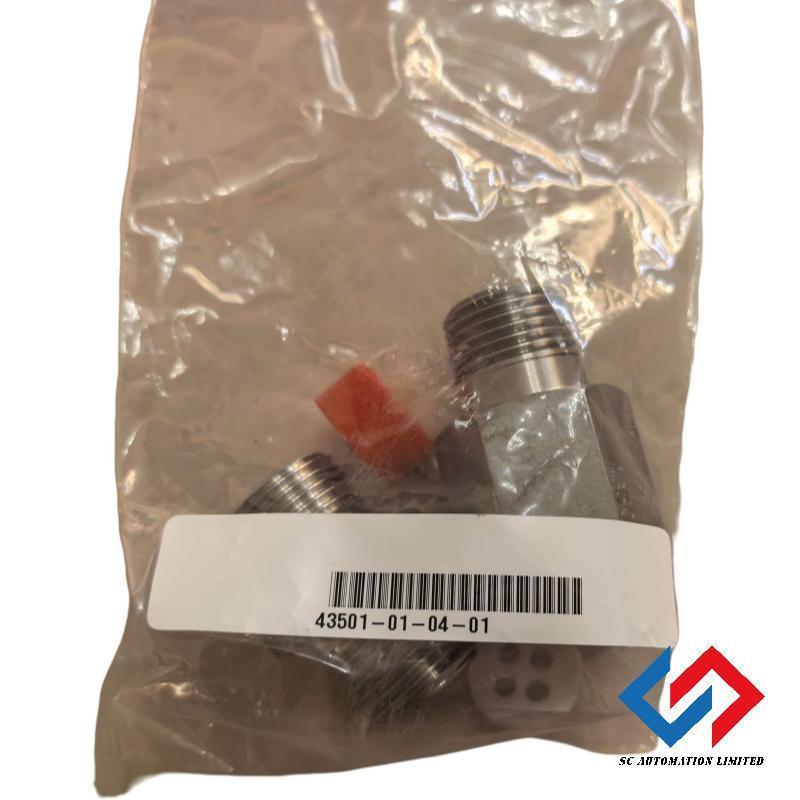

43501-01-04-01 Bently Nevada Low Pressure Cable Seal 0
