Name: E+H Deltabar PMD75 Differential Pressure Transmitter with Piezoresistive Sensor and Welded Metallic Membrane for SIL2/3 Safety Applications
Brand: SC Automation Limited
SKU: PMD75-3495/0(PMD75-ABJ7B21DAAA)
Availability: InStock

E+H Deltabar PMD75 Differential Pressure Transmitter

Product Overview

The Deltabar PMD75 differential pressure transmitter with piezoresistive sensor and welded metallic membrane is used in all industries for continuous measurement in liquids, vapors and gases. The 3-key operation enables simple and reliable commissioning and operation. The integrated HistoROM data module allows easy management of process and device parameters. Designed according to IEC 61508 for use in SIL2/3 safety applications.

For level, volume or mass measurement in liquids, differential pressure monitoring as well as flow measurement (volume or mass flow) in conjunction with primary elements in gases, vapors and liquids.

Process connections: Threads
Process temperature: -40 to +85°C (-40 to +185°F)
Measuring ranges: 0.25mbar to 40bar (0.0036 to 600psi)
Accuracy: ±0.05%, "Platinum" ±0.035% (optional)
International explosion protection certificates, overfill prevention WHG, SIL, hygienic approvals, marine approvals

Technical Specifications

Measuring principle	Differential pressure
Characteristic	Digital transmitter with metallic measuring diaphragms Modular transmitter Long-term stability High static pressure/Overload resistance Secondary process barrier
Supply voltage	4...20 mA HART 10,5...45V DC (Non Ex): Ex ia: 10,5...30V DC PROFIBUS PA: 9...32 V DC (Non Ex) FOUNDATION Fieldbus: 9...32 V DC (Non Ex)
Reference Accuracy	Standard: 0.05% Platinum: up to 0.035%
Long term stability	0.03 % of URL/ year 0.05 % of URL/ 5 years 0.08 % of URL/ 10 years
Process temperature	-40°C...85°C (-40°F...185°F)
Ambient temperature	-50°C...85°C (-58°F...185°F)
Measuring cell	10 mbar...250 bar (0.15 psi...3750 psi)
Smallest calibratable span	1 mbar (0.015 psi)
Vacuum resistance	50 mbar (0.73 psi)
Max. Turn down	100:1
Process connection	1/4-18NPT RC1/4"
Material process membrane	316L, AlloyC, Tantal, Gold-Rhodium
Material gasket	Viton, PTFE, EPDM, NBR
Fill fluid	Silicone oil Inert oil
Material housing	316L, Die-cast aluminum
Communication	4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus
Certificates / Approvals	ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, EAC, UK Ex
Safety approvals	SIL
Design approvals	NACE MR0103 EN10204-3.1
Marine approvals	GL/ ABS
Specialities	Diagnostic functions
Successor	PMD75B

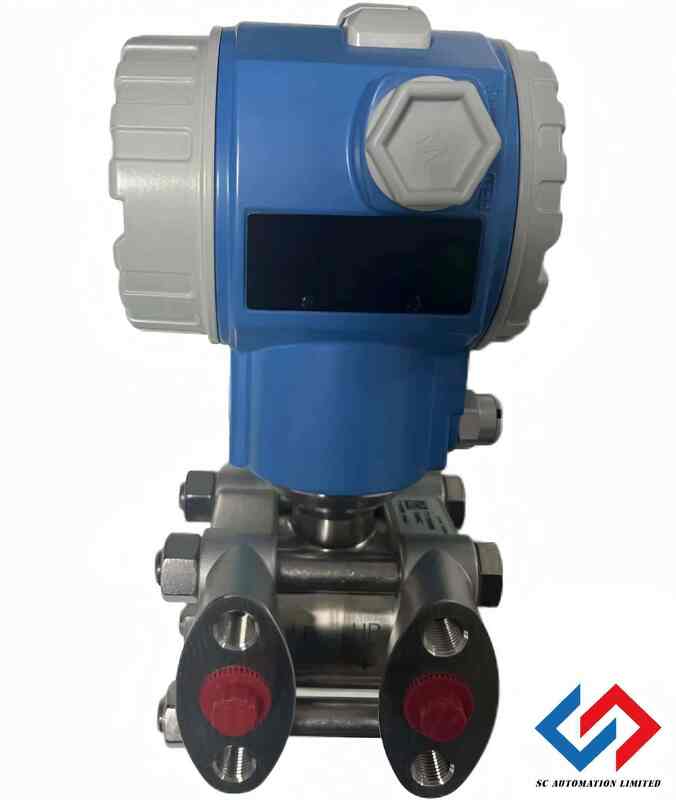

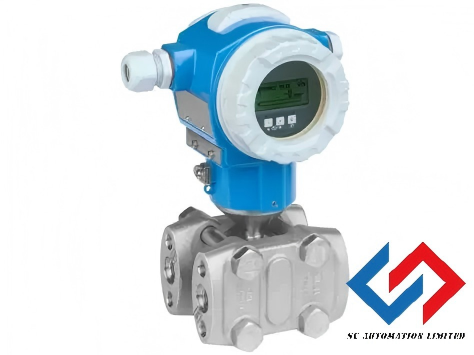

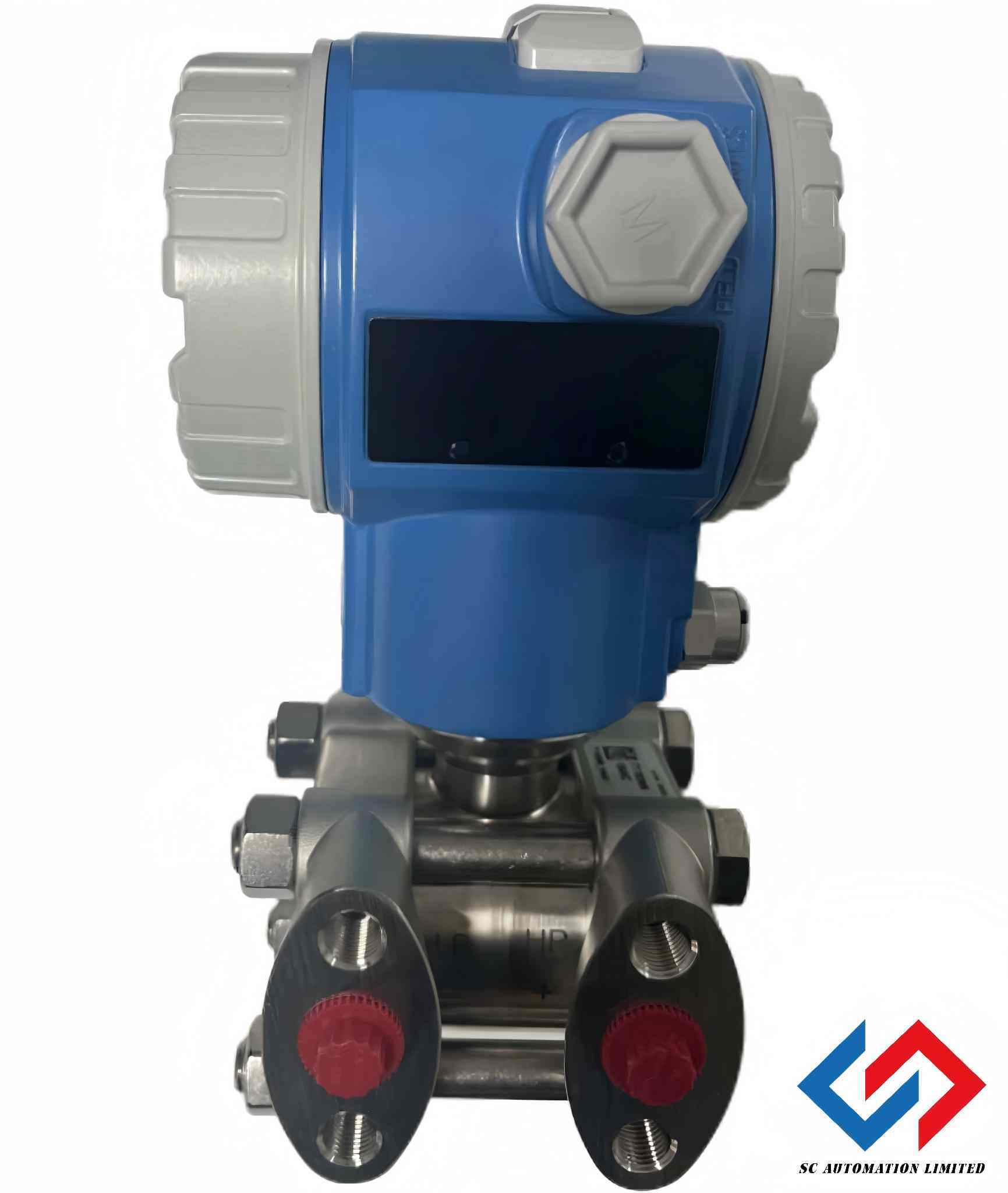

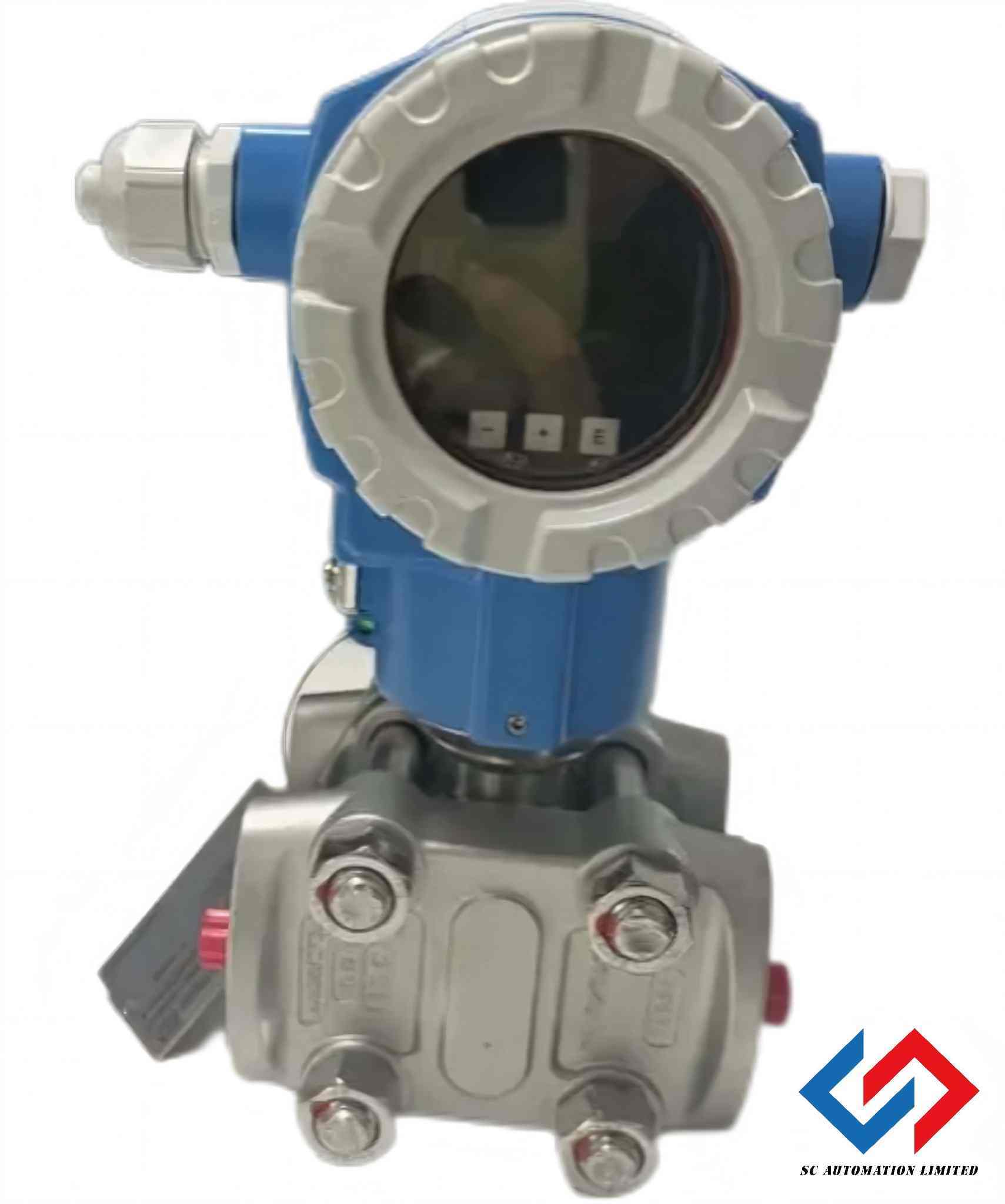

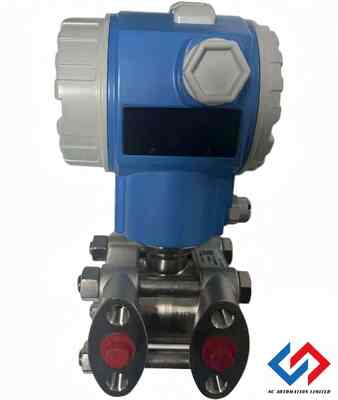

Product Images
