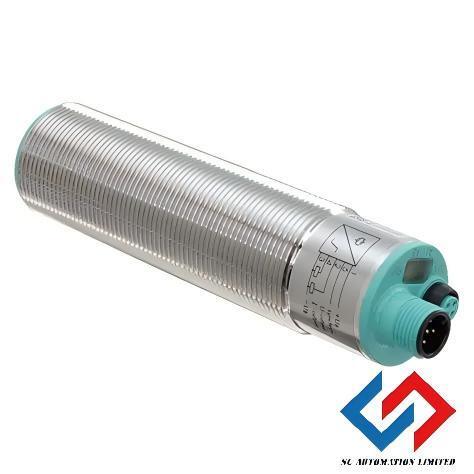

UCC1000-30GM-IUR2-V15 P+F Ultrasonic Sensor

Basic Information

Contact Now Chat Now

Sensing Range:	80 ... 1000 Mm	Adjustment Range:	100 ... 1000 Mm
Dead Band:	0 ... 80 Mm	Standard Target Plate:	100 Mm X 100 Mm
Degree Of Protection:	IP65	Mass:	170 G
Highlight:	P+F ultrasonic proximity sensor , UCC1000 ultrasonic sensor with warranty , P+F industrial ultrasonic sensor

Key Benefits

High chemical resistance through PTFE coated transducer surface
Parameterization interface for the application-specific adjustment of the sensor setting via the service program ULTRA 3000
Analog current and voltage output
Synchronization options
Adjustable acoustic power and sensitivity
Temperature compensation

General specifications

Sensing range	80 ... 1000 mm
Adjustment range	100 ... 1000 mm
Dead band	0 ... 80 mm
Standard target plate	100 mm x 100 mm
Transducer frequency	approx. 175 kHz
Response delay	65 ms minimum 195 ms factory setting
