Home ProductsEndress Hauser InstrumentsTMT85-A1A2A+B3 | Endress+Hauser TMT85 temperature transmitter

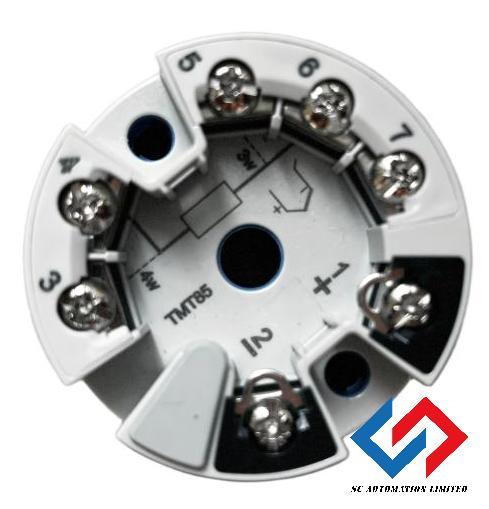

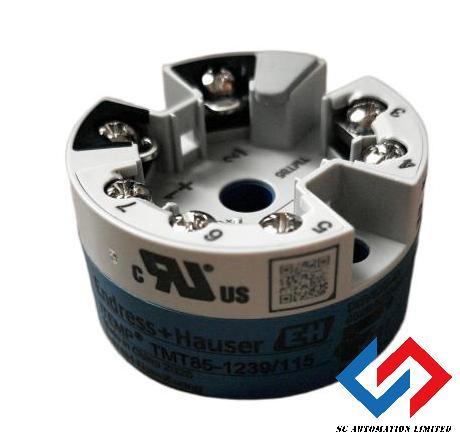

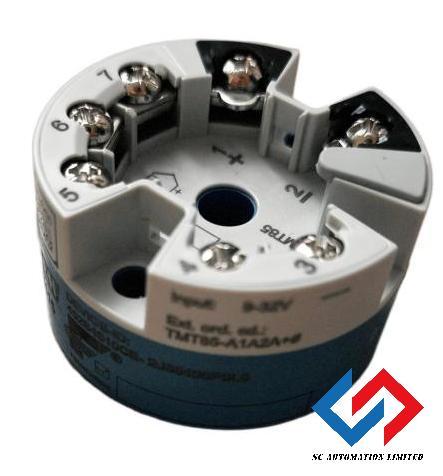

TMT85-A1A2A+B3 | Endress+Hauser TMT85 temperature transmitter

TMT85-A1A2A+B3 | Endress+Hauser TMT85 temperature transmitter
TMT85-A1A2A+B3 | Endress+Hauser TMT85 temperature transmitter TMT85-A1A2A+B3 | Endress+Hauser TMT85 temperature transmitter TMT85-A1A2A+B3 | Endress+Hauser TMT85 temperature transmitter
Basic Information
Place of Origin: CN
Brand Name: Endress+Hauser
Certification: CE
Model Number: TMT85-A1A2A+B3
Document: TMT85.pdf
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Original packaging
Delivery Time: 8-12 weeks
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now
Measuring Principle: Head Transmitter Input: 2 X RTD, TC, Ohm, MV
Output: FOUNDATION Fieldbus H1 Electrical Connection:: Screw Terminals, Housing Form B, DIN EN 50446
Net Weight: 0.060 Kilogram Country Of Origin: CN

TMT85-A1A2A+B3 | Endress+Hauser TMT85 temperature transmitter

The iTEMP TMT85 is a configurable head-mounted temperature transmitter with two universal input channels, converting signals from RTDs (Pt100, etc.), thermocouples, resistance (Ω) and millivolt sensors into standardized FOUNDATION Fieldbus H1​ digital output. The TMT85-A1A2C+B3 configuration is built for critical process applications where signal reliability, long-term stability and advanced diagnostics matter more than price.


Techinical date


Inputs
2 × universal: RTD, TC, Ω, mV
Sensor types
Pt100 / Pt1000 / Ni / Cu RTD; Type J/K/T/E/N/L/U/B/R/S; 2-, 3-, 4-wire
Measurement span
-200 … +850 °C (sensor dependent)
Reference accuracy
≤ 0.1 K (Pt100, sensor matching) / ≤ 0.15 K (TC, internal CJ)
Long-term drift
< 0.05 % / year
Output protocol
FOUNDATION Fieldbus H1 (31.25 kbit/s)
Power supply
9 … 32 V DC bus; 9 … 17.5 V DC under FISCO / FNICO
Bus current
≤ 17.5 mA (typical ~12 mA)
Isolation
Galvanically isolated input / bus
Mounting
DIN EN 50446 Form B head; field housing / wall / pipe mount options
Terminal type
Spring-cage (push-in) — confirm exact variant per suffix
Display option
TID10 plug-on local display (optional)
Ambient temp.
-40 … +85 °C (head mount, sensor-dependent)
Enclosure rating
IP67 / NEMA 4X with suitable head
Hazardous area
ATEX, IECEx, FM, CSA; Ex ia / Ex d variants per approval
Functional safety
SIL 2 / SIL 3 capable (IEC 61508)
EMC / ESD
IEC/EN 61326-1/2/3; surge 6 kV



Details


TMT85-A1A2A+B3 | Endress+Hauser TMT85 temperature transmitter




TMT85-A1A2A+B3 | Endress+Hauser TMT85 temperature transmitter
