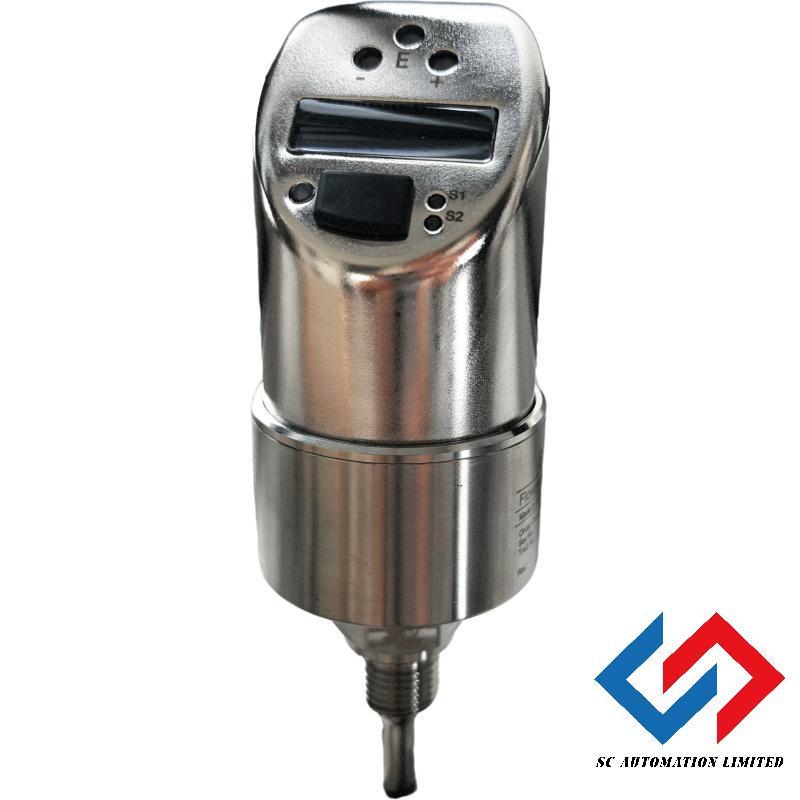

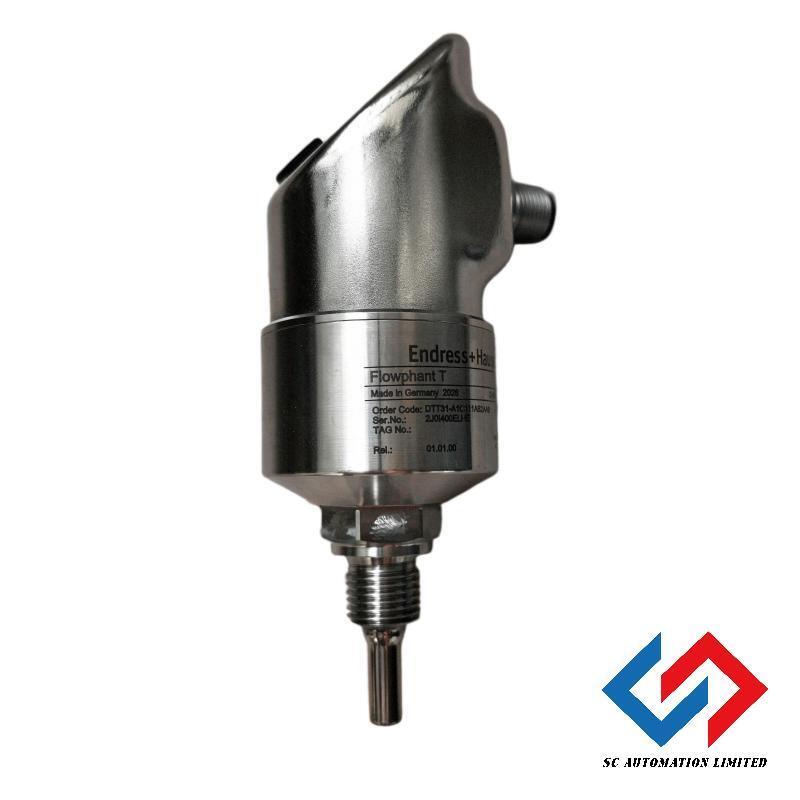

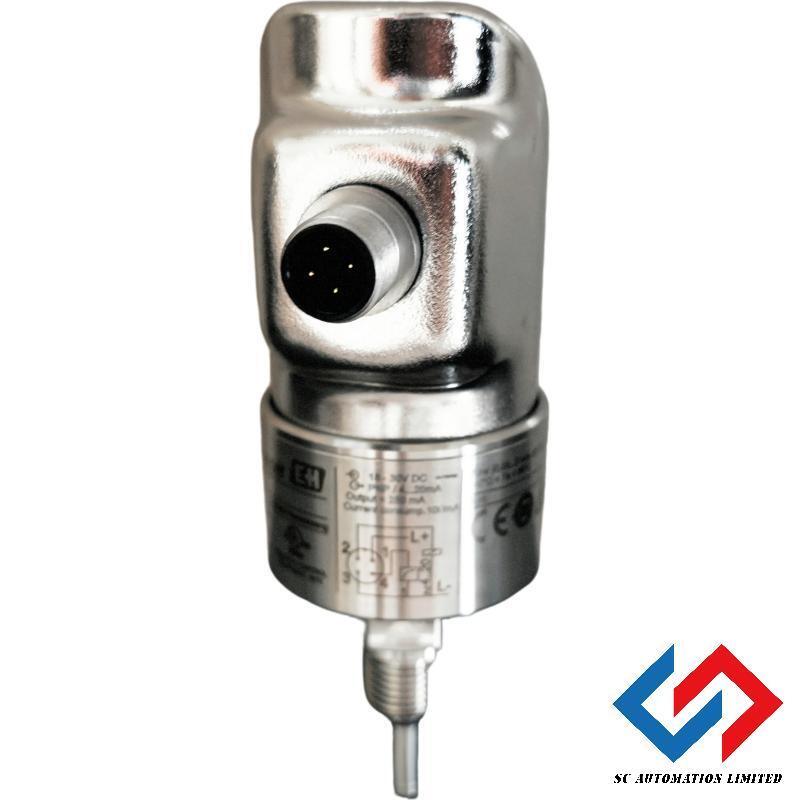

DTT31-A1C111AB2AAB | Endress+Hauser DTT31 Flow switch

Basic Information

Place of Origin:	DE
Brand Name:	Endress+Hauser
Certification:	CE
Model Number:	DTT31-A1C111AB2AAB
Document:	DTT31,DTT35.pdf

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	Original packaging
Delivery Time:	8-12 weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Measuring Principle:

Thermal

Max. Process Pressure:

100 Bar (1.740 Psi)

Degree Of Protection:

IP66

Display/Operation:

LED LCD-Display

Outputs:

1 X PNP Switchable Output + 1 X 4...20 MA Analog Output

Net Weight:

0.260 Kilogram

DTT31-A1C111AB2AAB | Endress+Hauser DTT31 Flow switch

Endress+Hauser Flowphant T DTT31-A1C111AB2AAB thermal dispersion flow switch for liquids: no moving parts, 0.03–3 m/s measuring range, 1× PNP switch + 4–20 mA analog output, 6 mm probe with 30 mm insertion length, M12 connector, 18–30 V DC. Monitors flow and temperature in one device — ideal for cooling water, lube oil, seal water and leak detection. 310° rotatable display, IP67, chemical-resistant PEEK/PVDF wetted parts.

Techinical date

Model	Flowphant T DTT31
Full order code	DTT31-A1C111AB2AAB
Measuring principle	Thermal dispersion / calorimetric
Medium	Liquids (water, oils, coolants, chemicals)
Flow range	0.03 … 3 m/s
Temperature range (medium)	-20 … +85 °C
Temperature measurement	Integrated (flow + temp in one device)
Switch output	1 × PNP, normally open / closed configurable
Analog output	1 × 4–20 mA (active)
Power supply	18 … 30 V DC
Electrical connection	M12 × 1, 4-pin (A-coded)
Probe diameter	6 mm
Insertion length	30 mm
Process connection	G ½ (standard for DTT31 insertion)
Wetted materials	Probe: 316L (1.4404); housing: PEEK / PVDF options
Display	Digital, 310° rotatable
Protection class	IP66 / IP67
Response time	< 1 s (typical, depends on setpoint)
Pressure rating	≤ 10 bar (verify per nameplate)
Ambient temp.	-20 … +60 °C
Approvals	CE, cULus (per variant); non-hazardous area base
