20kHz Bently Nevada 200150 200155 200157 Vibration Accelerometer

Large Image : 20kHz Bently Nevada 200150 200155 200157 Vibration Accelerometer

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CE
Model Number:	200155-00-CN

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	12-16weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

20kHz Bently Nevada 200150 200155 200157 Vibration Accelerometer

Description

Sensitivity @ 80 Hz (± 12%):	10.2 MV/(m/s2) (100 MV/g)	Mounted Resonant Frequency:	>20 KHz (>1200 Kcpm)
Size:	17.5 Mm X 45.7 Mm (	Weight:	58 G (2.0 Oz), Typical
Mounting Thread:	3/8-24 Female	Mounting Torque:	2.7 To 6.8 N•m (2 To 5 Ft•lbf)
Sensing Element:	Ceramic	Sensing Geometry:	Shear
Highlight:	20kHz Bently Nevada Vibration Monitoring System , Bently Nevada Vibration Monitoring System 200157 , Bently Nevada 200150

20kHz Bently Nevada Vibration Monitoring System 200150 200155 200157 Accelerometers

Technical Specifications

Attribute	Value
Sensitivity @ 80 Hz (± 12%)	10.2 mV/(m/s2) (100 mV/g)
Mounted Resonant Frequency	>20 kHz (>1200 kcpm)
Size	17.5 mm x 45.7 mm
Weight	58 g (2.0 oz), typical
Mounting Thread	3/8-24 female
Mounting Torque	2.7 to 6.8 N•m (2 to 5 ft•lbf)
Sensing Element	Ceramic
Sensing Geometry	Shear

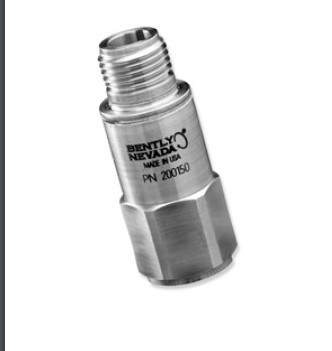

Bently Nevada 200150, 200155 and 200157 Accelerometers

These general purpose, wide frequency, case-mounted seismic transducers are designed for use with Trendmaster ProTIMs. The 200150 Accelerometer also operates with the Trendmaster 2000 system.
The accelerometer interfaces with the 200100 Dual Acceleration to Velocity flexiTIM Module and the 89130-01 Acceleration-to-Velocity TIM (Transducer Interface Module), as well as the 1900/25 and 1900/27 monitors.
The 20015x Accelerometers feature a hermetically sealed, stainless steel case, providing an extremely rugged transducer suited for harsh industrial environments. The transducer's top-mounted, 5-pin connector allows for easy installation and removal of the interconnecting signal cable. A 3/8-24 threaded hole on the bottom of the sensor's casing accommodates several mounting options.

Ordering Information

200150-AA-BB General Purpose Trendmaster 2000 or Trendmaster Pro Accelerometer

A: Mounting Stud Option

00	No mounting stud provided
01	3/8-24 thread, 2 adhesive mount frames with adhesive
02	3/8-24 to 3/8-24 UNF 1-3/8 inch hex plate stud
03	3/8-24 to 1/2-20 UNF 1-3/8 inch hex plate stud
04	3/8-24 to 1/4 NPT 1-3/8 inch hex plate stud
05	3/8-24 to 1/4-28 UNF 1-3/8 inch hex plate stud
06	3/8-24 to 1/4 NPT, 3/4 inch hex stud
07	3/8-24 to 3/8 NPT, 3/4 inch hex stud
08	3/8-24 to 1/2 NPT 1 inch hex stud
09	3/8-24 to 3/4 NPT, 1-1/4 inch hex stud
10	3/8-24 to 1 NPT, 1-3/8 inch hex stud
11	3/8-24 to 1-1/4 NPT, 1-3/4 inch hex stud
12	3/8-24 to 1/4-20 UNC, 3/4 inch hex stud
13	3/8-24 to 5/16-18 UNC, 3/4 inch hex stud
14	3/8-24 to 3/8-24 UNF, 3/4 inch hex stud
15	3/8-24 to 3/8-16 UNC, 3/4 inch hex stud
16	3/8-24 to 1/2-13 UNC, 3/4 inch hex stud
17	3/8-24 to 3/8-16 UNC 1-3/8 inch hex plate stud
18	3/8-24 to M8x1 1-3/8 inch hex plate stud
19	Quick-Set XDCR adapter, 1-inch hex stud
20	3/8-24 thread, 1 magnetic mount base
21	3/8-24 outer diameter to M6x1 inner diameter 1-3/8 inch hex plate stud
22	3/8-24 to M8x1.25 1-3/8 inch hex plate stud
23	3/8-24 to M16x2.0 1-3/8 inch hex plate stud

B: Approvals

05	Multiple Approvals (CSA, ATEX, and IECEx)

Accessories

164985	200150, 200155, and 200157 Accelerometers User Guide
162411	Trendmaster System User Guide
149831	Trendmaster Dynamic Scanning Module datasheet
163662	200200 ProTIM-R Module datasheet
163663	200250 ProTIM-C Module datasheet
126709	Trendmaster 2000 for Windows Installation Guide
141574-01	200100 Acceleration-to-Velocity flexiTIM Module datasheet
137230	flexiTIM Operation Manual
190125	1900/25 Vibration Monitor User Guide
141485	1900/25 Vibration Monitor datasheet
190127	1900/27 Vibration Monitor User Guide
141486	1900/27 Vibration Monitor datasheet
141556	89130-01 and 89546-01 Accel-to-Velocity Transducer Interface Module datasheet
142485-01	Housing cable adapter
141887-01	Conduit cable adaptor, single
141887-02	Conduit cable adapter, double
