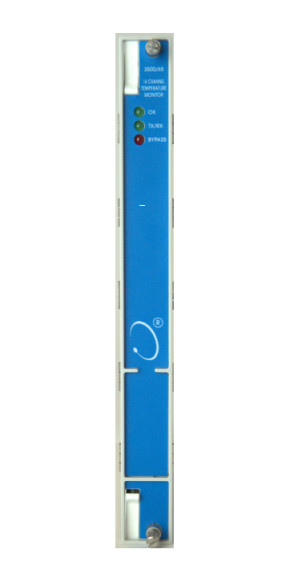

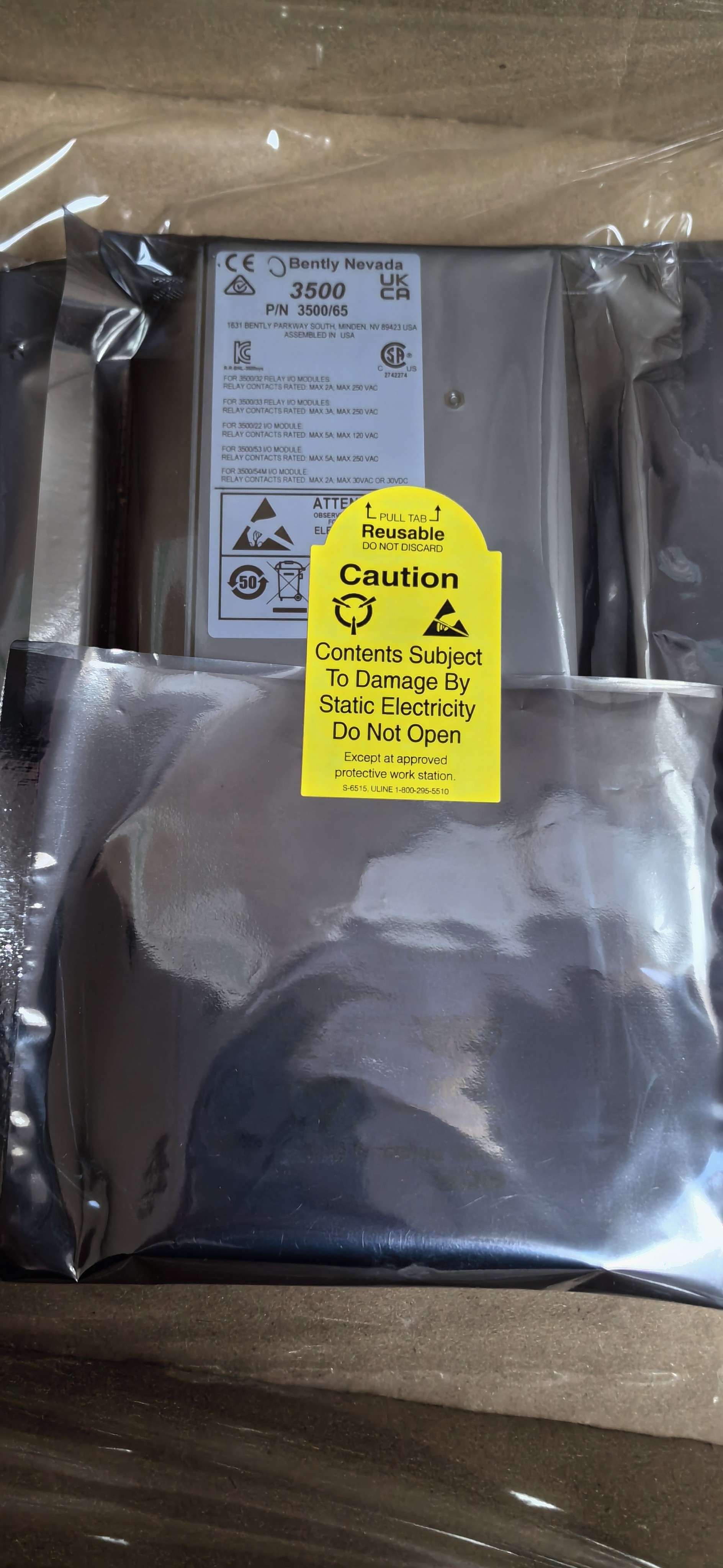

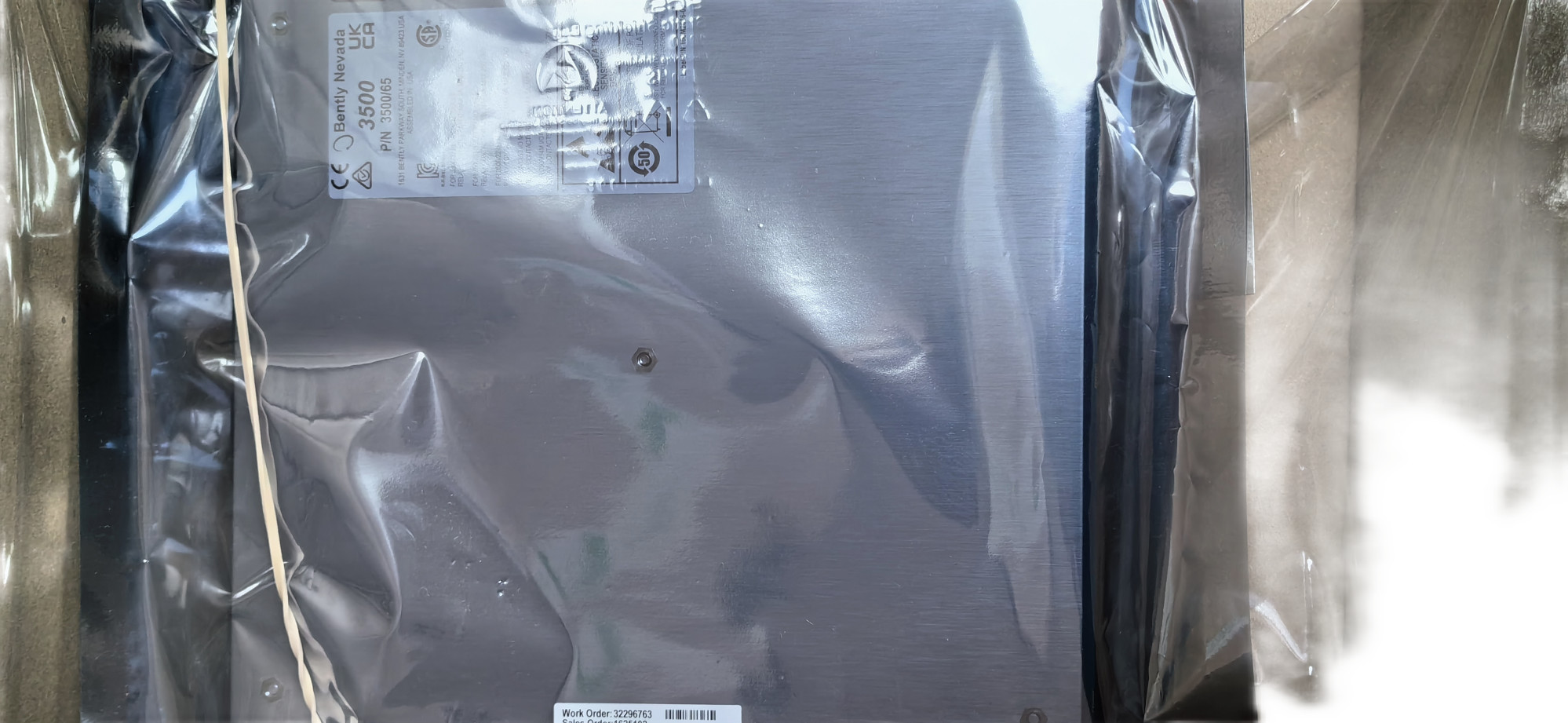

16 Channel Temperature Monitor Bently Nevada 3500/65-01-00

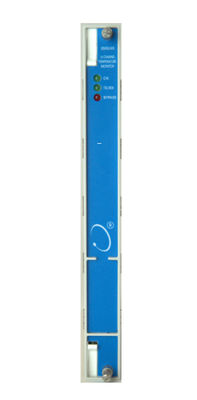

Large Image : 16 Channel Temperature Monitor Bently Nevada 3500/65-01-00

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CE
Model Number:	145988-02 3500/65-01-00

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	12-16weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

16 Channel Temperature Monitor Bently Nevada 3500/65-01-00

Description

Power Consumption:	3 Watts Nominal	Signal:	Accepts From 1 To 16 RTD Or Isolated Tip TC Transducer Signals.
Input Impedance:	Greater Than 1 MΩ For Each Lead Input.	Resolution:	1°C Or 1 °F
Dimensions:	241.3 Mm X 24.4 Mm X 241.8 Mm	Weight:	0.91 Kg (2.0 Lbs.).
Main Module:	1 Full-height Front Slot	I/O Modules:	1 Full-height Rear Slot
Highlight:	16 Channel Temperature Monitor , Temperature Monitor 3500/65-01-00 , Temperature Monitor Bently Nevada

3500/65 Bently Vibration Sensor 16 Channel Multi Channel Temperature Monitor 3500/65-01-00 145988-02

Product Specifications

Attribute	Value
Power Consumption	3 watts nominal
Signal	Accepts from 1 to 16 RTD or isolated tip TC transducer signals
Input Impedance	Greater than 1 MΩ for each lead input
Resolution	1°C or 1 °F
Dimensions	241.3 mm x 24.4 mm x 241.8 mm
Weight	0.91 kg (2.0 lbs.)
Main Module	1 full-height front slot
I/O Modules	1 full-height rear slot

Product Overview

The Bently Nevada 3500/65 16-Channel Temperature Monitor provides comprehensive temperature monitoring with 16 channels, accepting both resistance temperature detector (RTD) and isolated tip thermocouple (TC) inputs. The monitor conditions these inputs and compares them against user-programmable alarm setpoints for precise temperature monitoring.

Key Features

16 channels of temperature monitoring
Accepts RTD and isolated tip thermocouple inputs
User-programmable alarm setpoints
Configurable via 3500 Rack Configuration Software
Supports 3-wire RTD, 4-wire RTD, or combination TC/RTD inputs
Triple Modular Redundant (TMR) configuration capable

Ordering Information

Model: 3500/65-AA-BB

A: I/O Module Type	Description
01	RTD/Isolated Tip TC with Internal Terminations
02	RTD/Isolated Tip TC with External Terminations

B: Agency Approval Option	Description
00	None
01	CSA/NRTL/C
02	CSA/ATEX

Spare Parts

Part Number	Description
172931	3500/65 User Guide
145988-02	3500/65 Monitor
172103-01	3500/65 RTD/Isolated Tip TC I/O Module, Internal Terminations
173005	Connector Header, Internal Termination, 20-position, Black
172109-01	3500/65 RTD/Isolated Tip TC I/O Module, External Terminations
172115-01	RTD/Isolated Tip TC External Termination Block (Euro Style Connectors)
