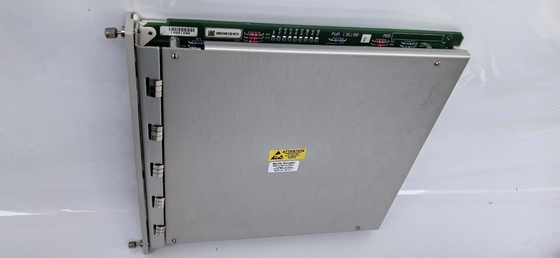

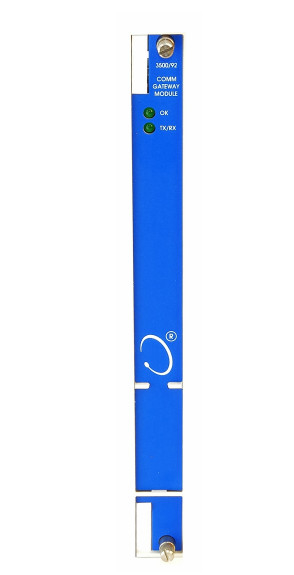

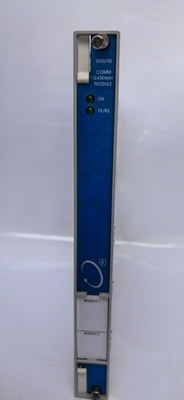

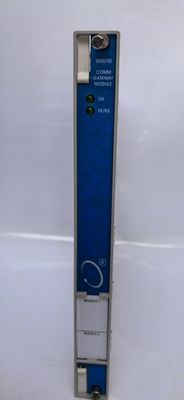

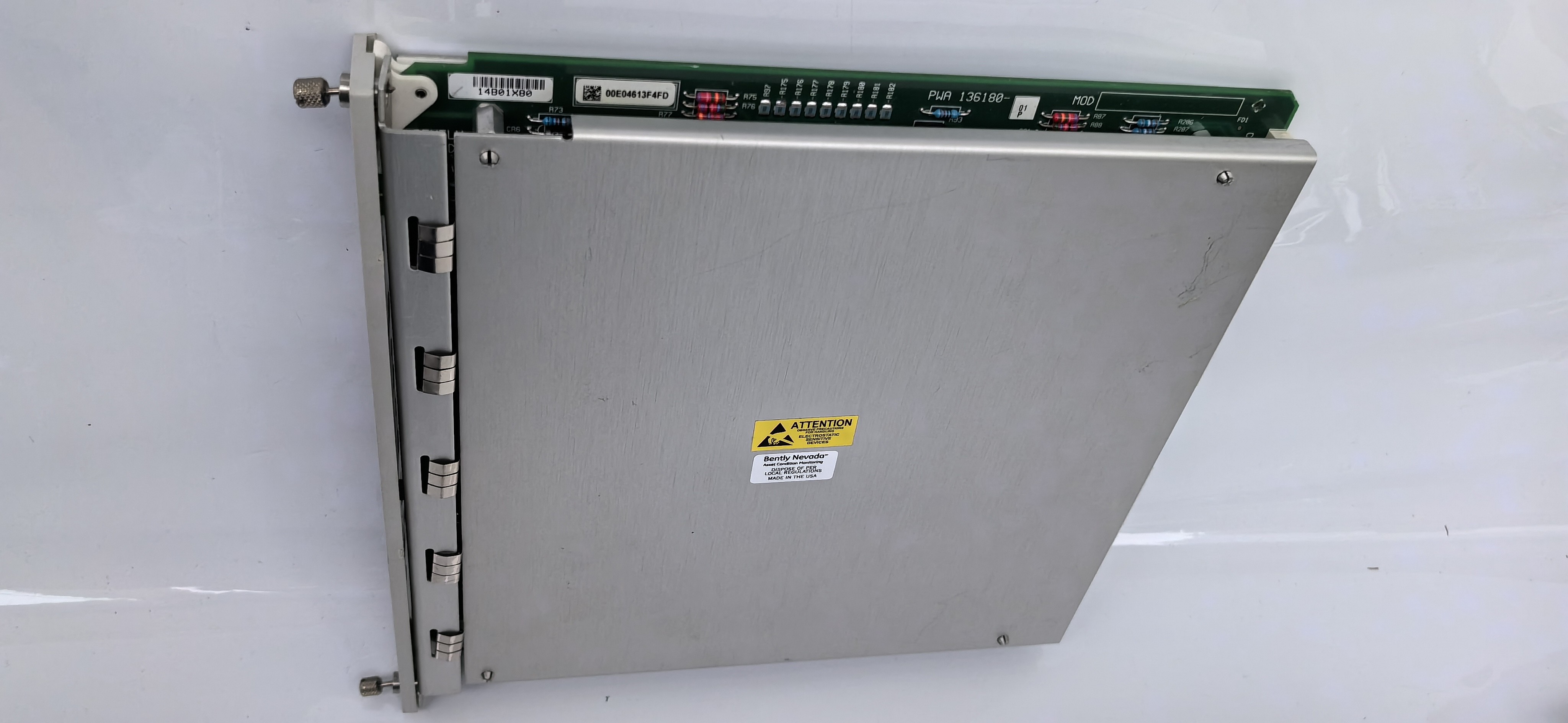

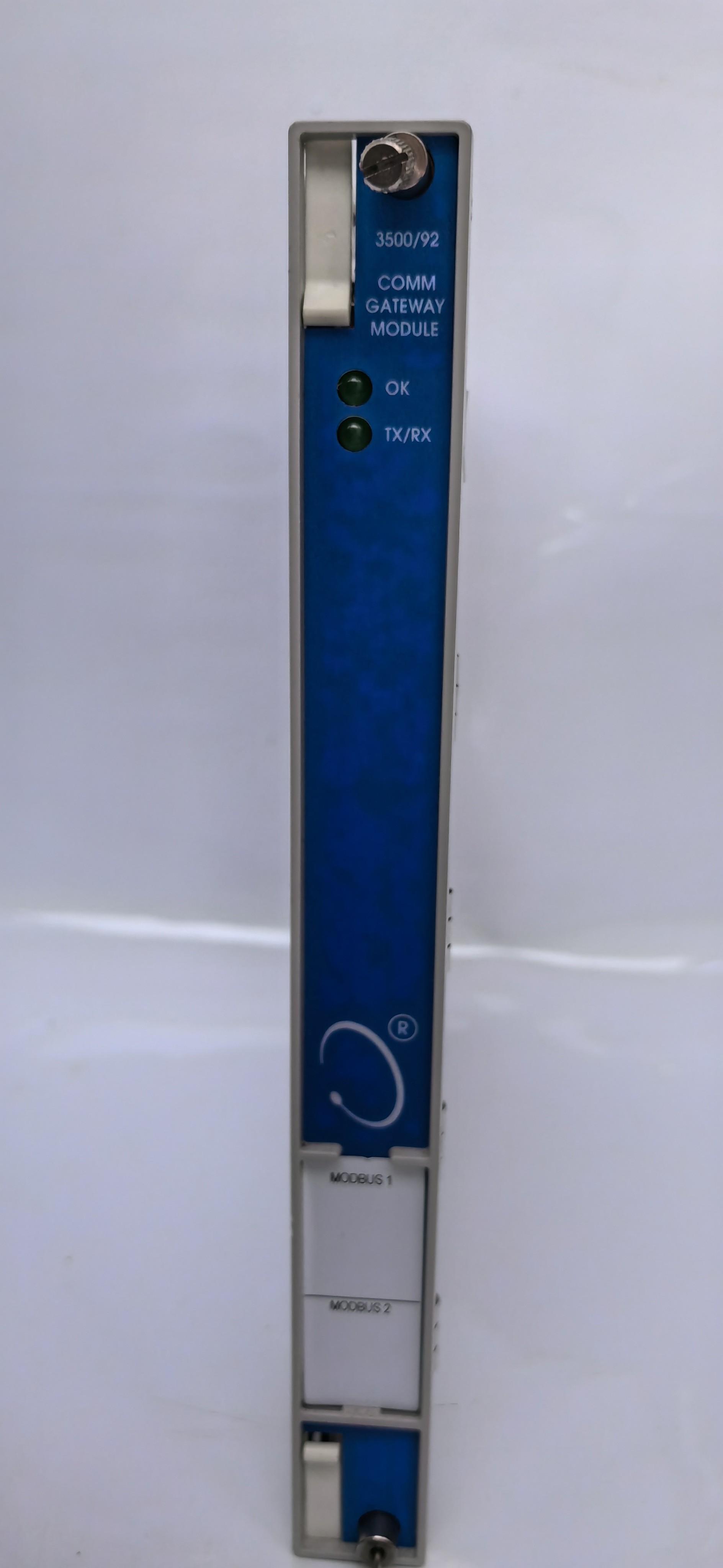

Bently Nevada 3500/92 Communication Gateway With Modbus RS485 I/O

Large Image : Bently Nevada 3500/92 Communication Gateway With Modbus RS485 I/O

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CE
Model Number:	3500/92-02-01-00 3500/92-03-01-00 136180-1 136188-01 133323-01

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	12-16weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Bently Nevada 3500/92 Communication Gateway With Modbus RS485 I/O

Description

Power Consumption:	5.0 Watts Typical With Modbus RS232/ RS422 I/O Module 5.6 Watts Typical With Modbus RS485 I/O Module	OK LED:	Ndicates When The 3500/92 Is Operating Properly.
Dimensions:	241 Mm X 24.4 Mm X 99.1 Mm	Weight:	0.44 Kg (0.96 Lb.)
Monitor Module:	1 Full-height Front Slot	I/O Modules:	1 Full-height Rear Slot
Highlight:	3500/92 Communication Gateway , RS485 I/O communication gateway , 3500/92 communication gateway module

RS232 Bently Nevada 3500 Vibration Probe 3500 92 Communication Gateway 133323-01 3500/92-02-01-00

Product Specifications

Attribute	Value
Power Consumption	5.0 watts typical with Modbus RS232/RS422 I/O Module 5.6 watts typical with Modbus RS485 I/O Module
OK LED	Indicates when the 3500/92 is operating properly
Dimensions	241 mm x 24.4 mm x 99.1 mm
Weight	0.44 kg (0.96 lb.)
Monitor Module	1 full-height front slot
I/O Modules	1 full-height rear slot

Product Description

The 3500/92 Communication Gateway module provides extensive communication capabilities of all rack monitored values and statuses for integration with process control and other automation systems using both Ethernet TCP/IP and serial (RS232/RS422/RS485) communications capabilities. It also permits Ethernet communications with 3500 Rack Configuration Software and Data Acquisition Software.

Supported Protocols:

Modicon Modbus protocol (via serial communications)
Modbus/TCP protocol (a variant of serial Modbus used for TCP/IP Ethernet communications)
Proprietary Bently Nevada protocol (for communication with 3500 Rack Configuration and Data Acquisition Software packages)

The 3500/92 supports the communication interfaces, communication protocols, and other features from the original 3500/90 with the exception of the primary value Modbus registers. The 3500/92 now has a Configurable Modbus Register Utility, which can provide the same functionality originally addressed by the primary value Modbus registers.

Ordering Information

3500/92 Communication Gateway 3500/92-AA-BB-CC

A: I/O Module Type
01	ModbusRS232/RS422 I/O Module
02	ModbusRS485 I/O Module
03	Ethernet/RS232 Modbus I/O Module
04	Ethernet/RS485 Modbus I/O Module
B: Memory Type
01	Low Memory
C: Agency Approval Option
00	None
01	CSA/NRTL/C
02	CSA/ATEX/IECEx

Spare Parts

Part Number	Description
04425545	Grounding Wrist Strap (single use)
137495-01	Firmware IC (Odd bank)
137494-01	Firmware IC (Even bank)
136180-01	3500/92 Communication Gateway Module
125736-01	ModbusRS232/RS422 I/O Module

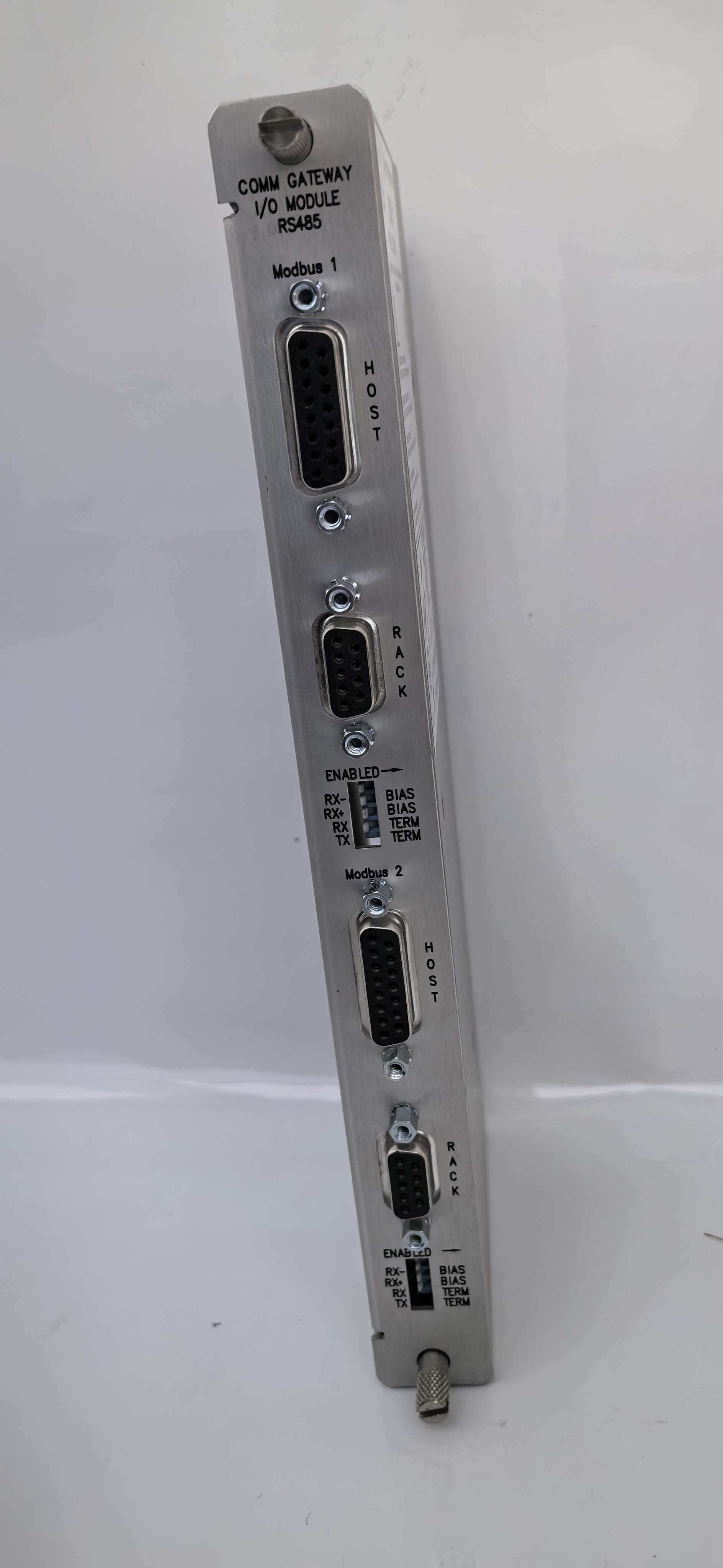

133323-01	1 ModbusRS485 I/O Module

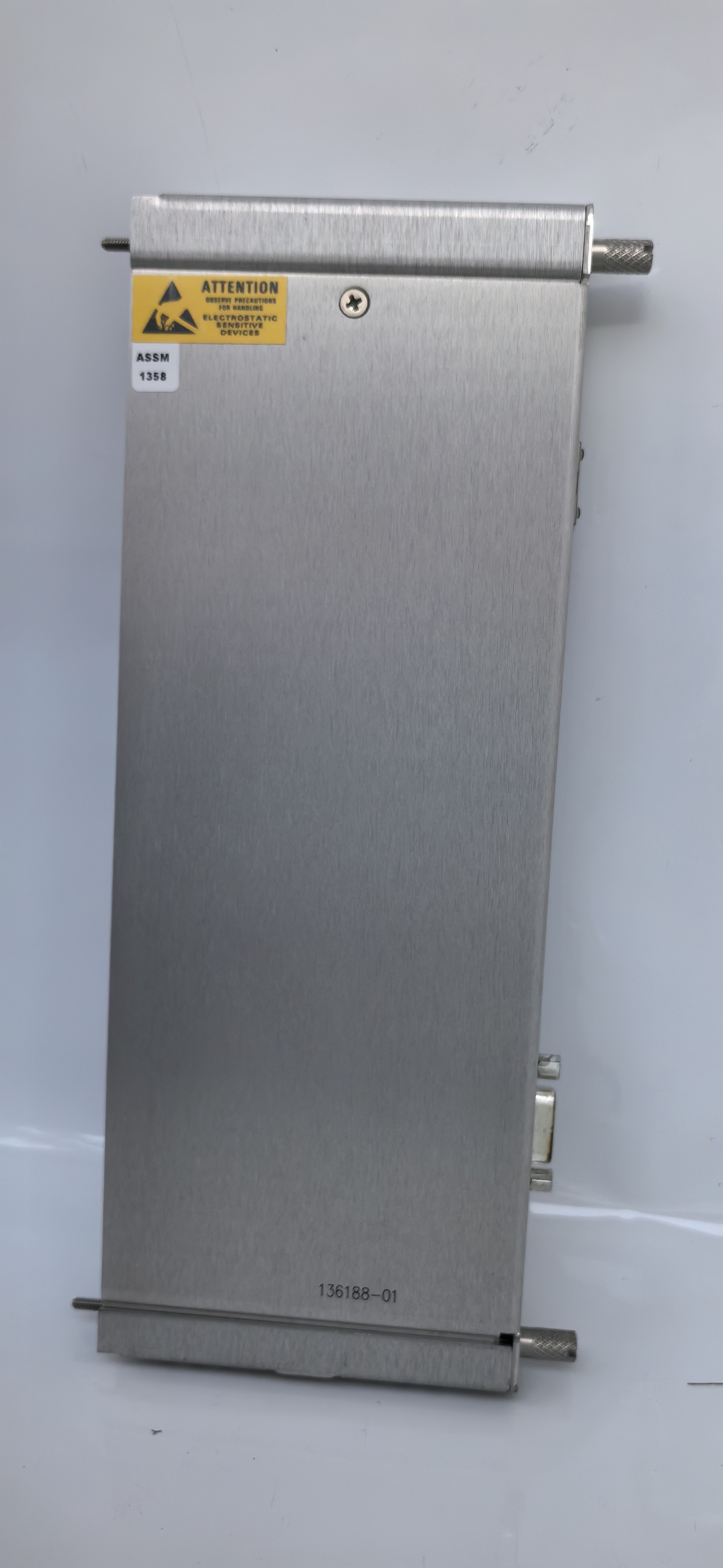

136188-01	Ethernet/RS232 ModbusI/O Module *
136188-02	Ethernet/RS485 ModbusI/O Module *
Bently_ Manuals	International Technical Documentation DVD
