Bently Nevada 3500/42M Proximitor Seismic Monitor 4 Channel

Large Image : Bently Nevada 3500/42M Proximitor Seismic Monitor 4 Channel

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CE
Model Number:	3500/42-01-00 3500/42-09-00 3500/42-10-00 176449-02 128229-01 140482-01 140471-01

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	1 Week
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Bently Nevada 3500/42M Proximitor Seismic Monitor 4 Channel

Description

Signal:	Accepts From 1 To 4 Proximity, Velocity Or Acceleration Transducer Signals	Power Consumption:	7.7 Watts, Typical
Standard I/O:	10 KΩ (Proximitor And Acceleration Inputs)	Output Impedance:	550 Ω
Transducer Power Supply:	-24 Vdc	Recorder:	+4 To +20 MA
Highlight:	550 Ω bently nevada 3500 42 , 4 Channel bently 3500 42 , Proximitor Seismic Monitor 4 Channel

42-09-00 3500 Bently Nevada 3500 System Proximitor Seismic Monitor 3500 42-01-00 3500

Product Specifications

Attribute	Value
Signal	Accepts from 1 to 4 proximity, velocity or acceleration transducer signals
Power consumption	7.7 watts, typical
Standard I/O	10 kΩ (Proximitor and acceleration inputs)
Output Impedance	550 Ω
Transducer Power Supply	-24 Vdc
Recorder	+4 to +20 mA

Product Description

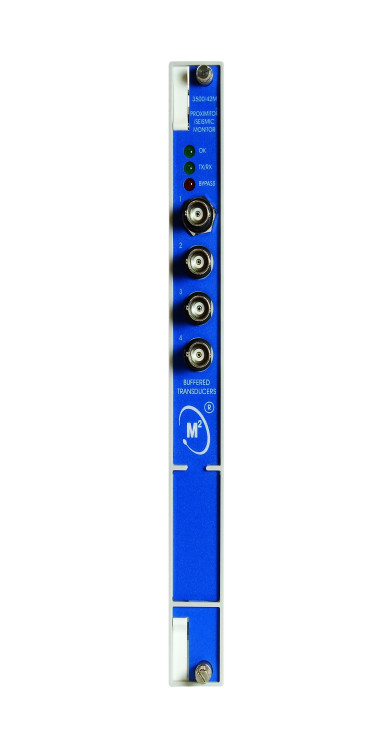

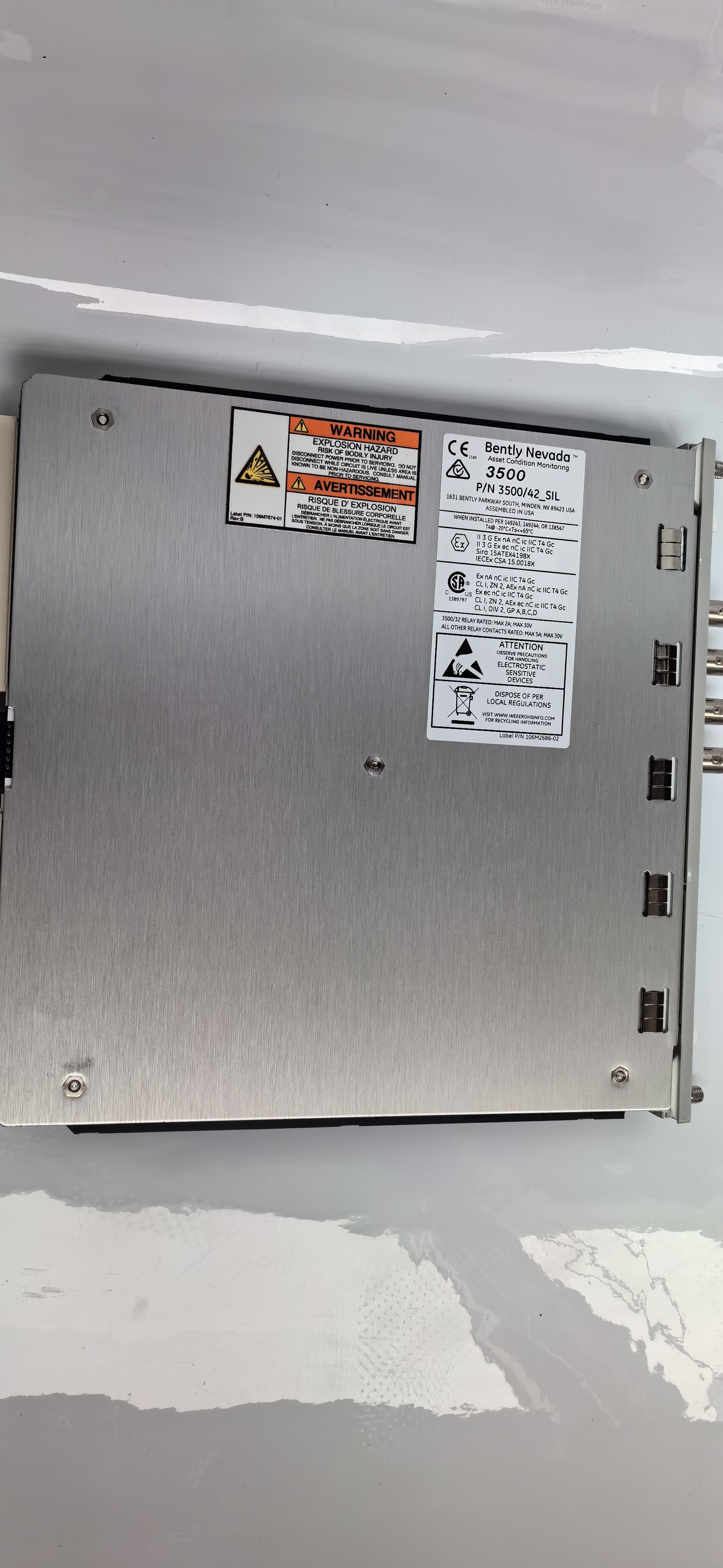

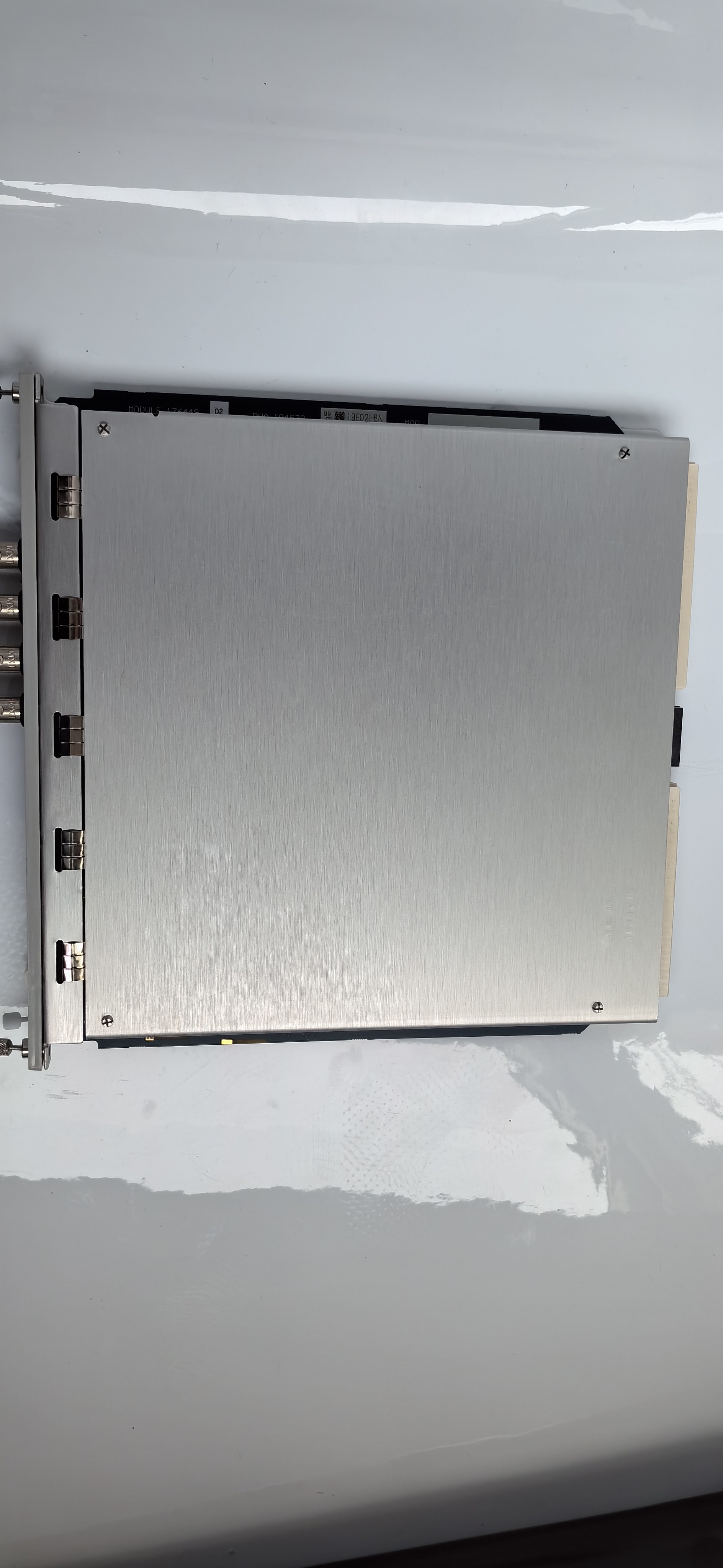

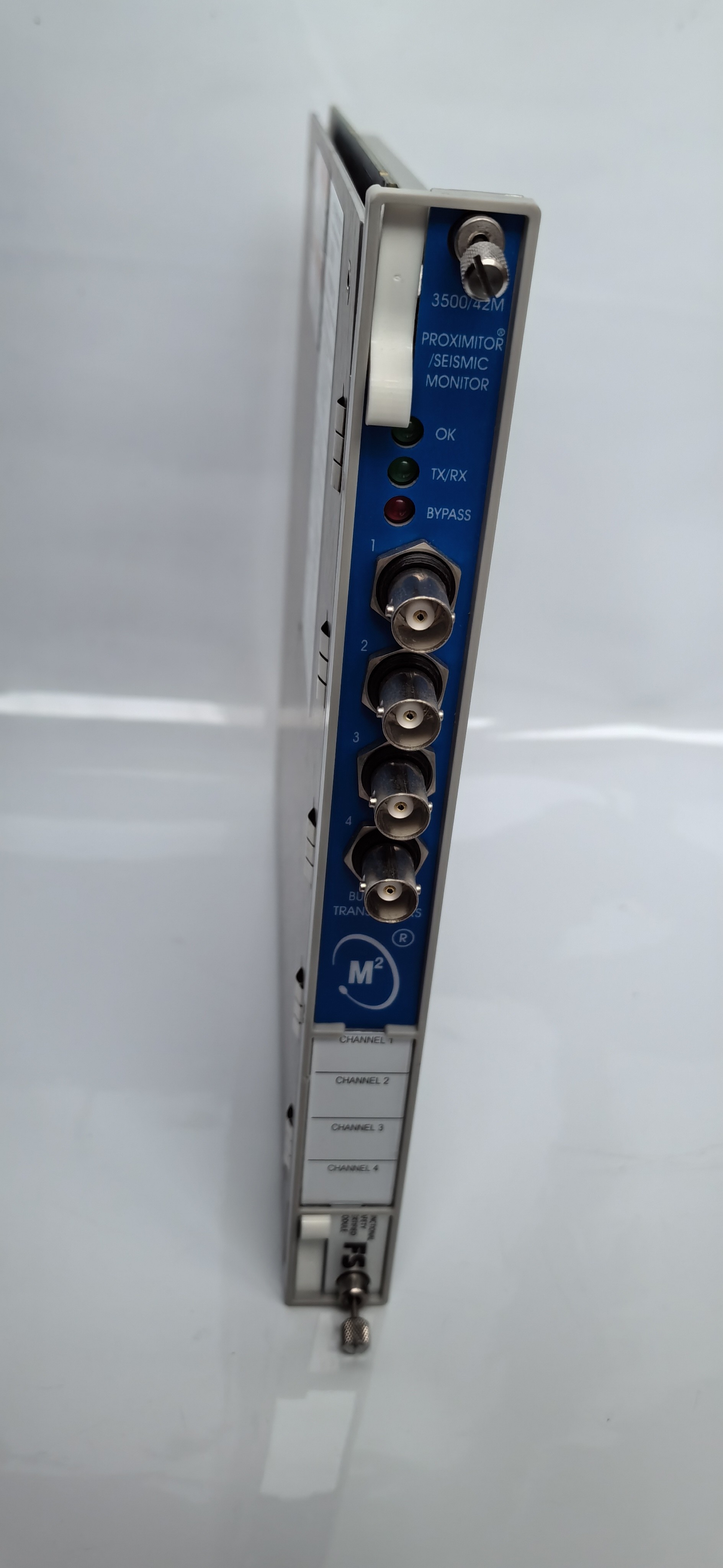

Bently Nevada 3500/42M Proximitor Seismic Monitor

The 3500/42M Proximitor Seismic Monitor is a four-channel monitor that accepts input from proximity and seismic transducers. It conditions the signal to provide vibration and position measurements and compares the conditioned signals with user-programmable alarms.

Protects machinery by continuously comparing monitored parameters against configured alarm setpoints
Communicates essential machine information to both operations and maintenance personnel
Supports proximity, velocity, and acceleration transducer signals

Ordering Information

3500/42 - AA - BB

A: I/O Module Type

AA Ordering Option	I/O Part Number	I/O Description	Transducer Type
01	128229-01	Prox/Seismic I/O Module with internal terminations	Seismoprobe (Prox/Accel and Velomitor supported but not recommended)
02	128240-01	Prox/Seismic I/O Module with external terminations	Seismoprobe (Prox/Accel and Velomitor supported but not recommended)
04	135489-01	I/O Module with internal Barriers, internal terminations, 4 x Prox/Accel	Prox/Accel on channels 1 through 4
05	135489-02	I/O Module with internal barriers, internal terminations, 2 x Prox/Accel and 2 x Velomitor	Prox/Accel on channels 1 and 2, Velomitor on channels 3 and 4
06	135489-03	I/O Module with internal barriers, internal terminations, 4 x Velomitor	Velomitor on channels 1 through 4
07	138708-01	Shaft Absolute I/O Module with internal terminations	Prox/Accel or Velomitor or Seismorprobe
08	138700-01	Shaft Absolute I/O Modules with external terminations	Prox/Accel or Velomitor or Seismorprobe
09	140471-01	Prox/Velom I/O Module with internal terminations	Prox/Accel, Velomitor or HTVS

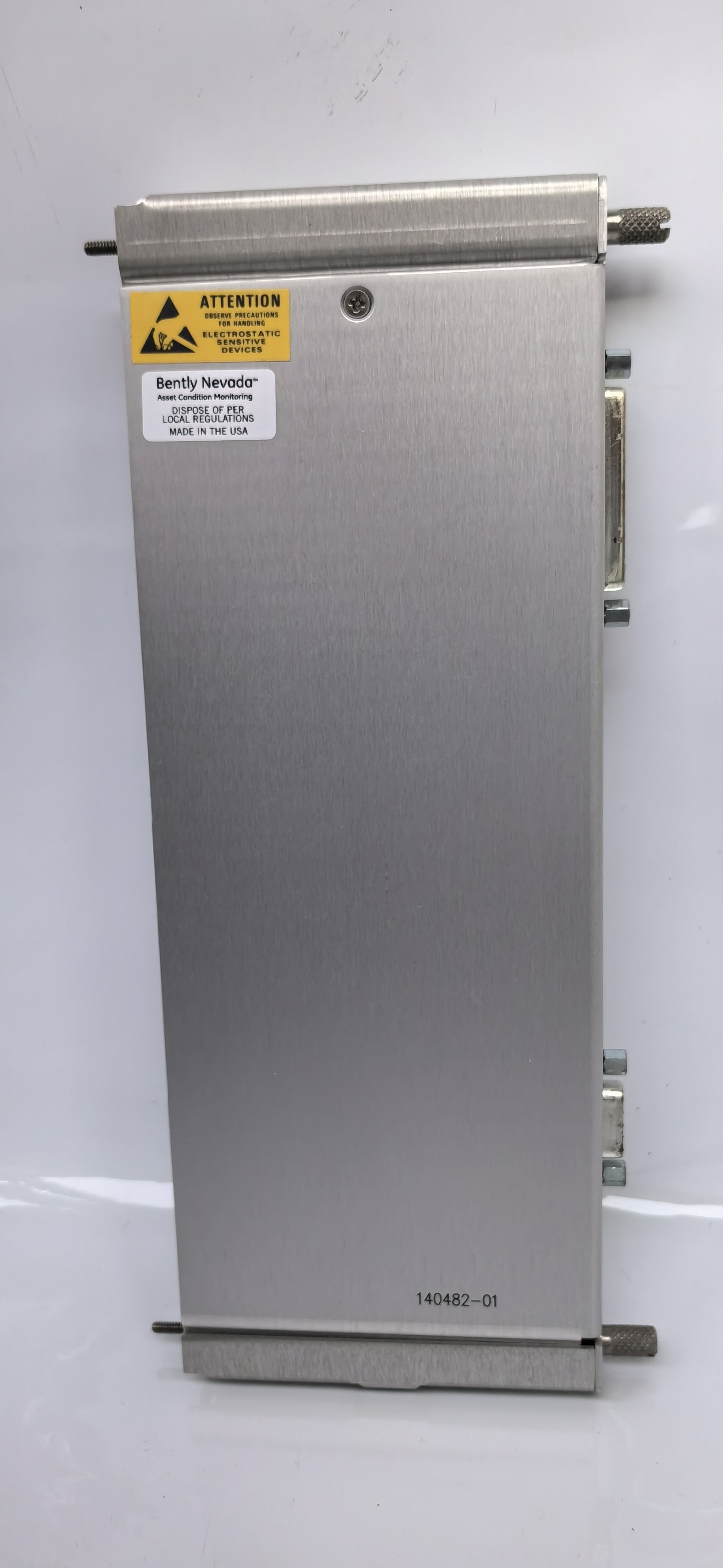

10	140482-01	Prox/Velom I/O Module with external terminations	Prox/Accel, Velomitor or HTVS

B: Hazardous Area Approval Option

Option	Description
00	None
01	cNRTLus (Class 1, Division 2)
02	ATEX / IECEx / CSA (Class 1, Zone 2)

Spare Parts

176449-02 128229-01 128240-01 00530843 143489 135489-01 135489-02 135489-03 138708-01 138700-01 140471-01 140482-01

Related Part Numbers

177230-01-01-CN 991-25-50-01-00 330105-02-12-05-02-00 177313-02-02-00 330106-05-30-05-02-00 330105-02-12-05-02-CN 190501-00-00-CN 330106-05-30-05-02-CN 330105-02-12-10-02-00 200151-060-03-00 330106-05-30-10-02-00 330105-02-12-10-02-CN 200152-150-02-10 CB2W100-32 40180-02
