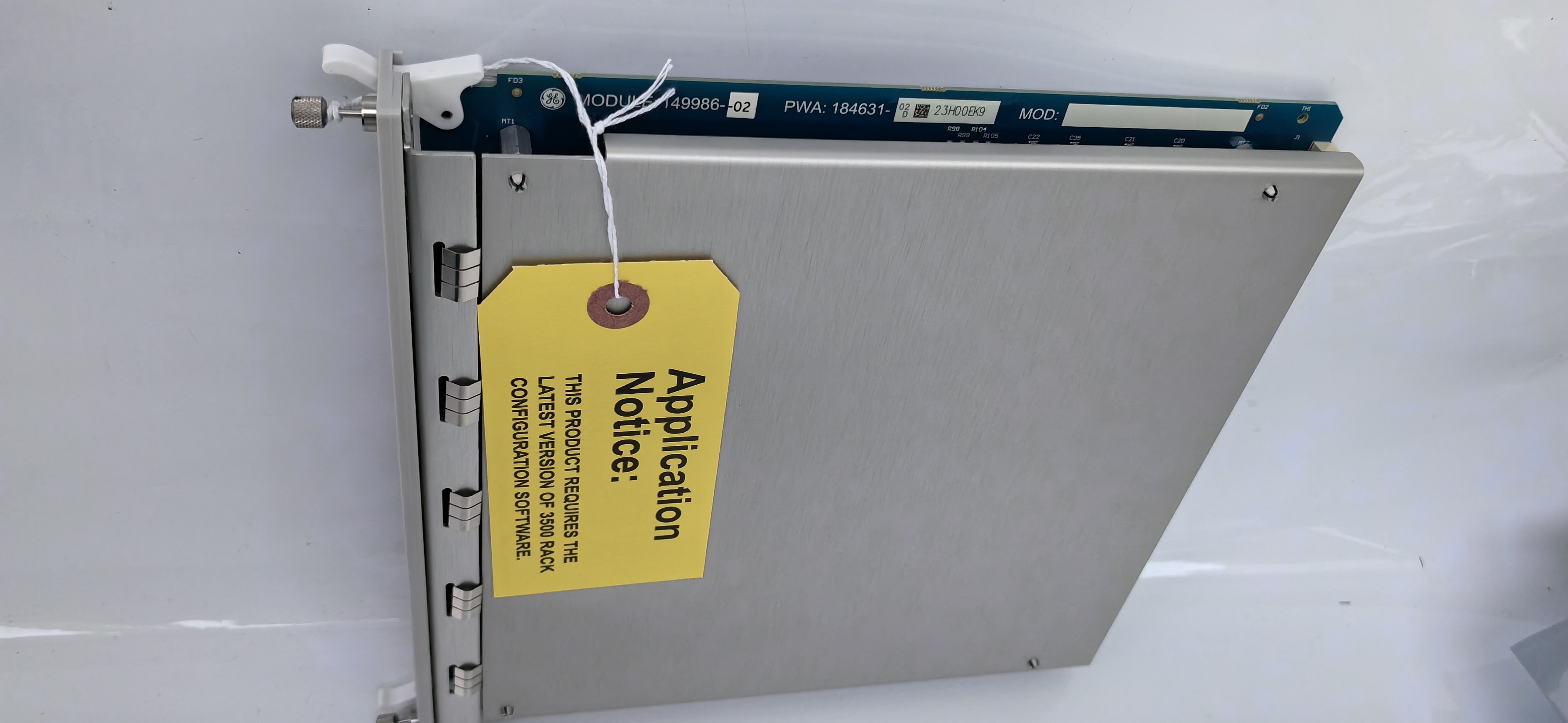

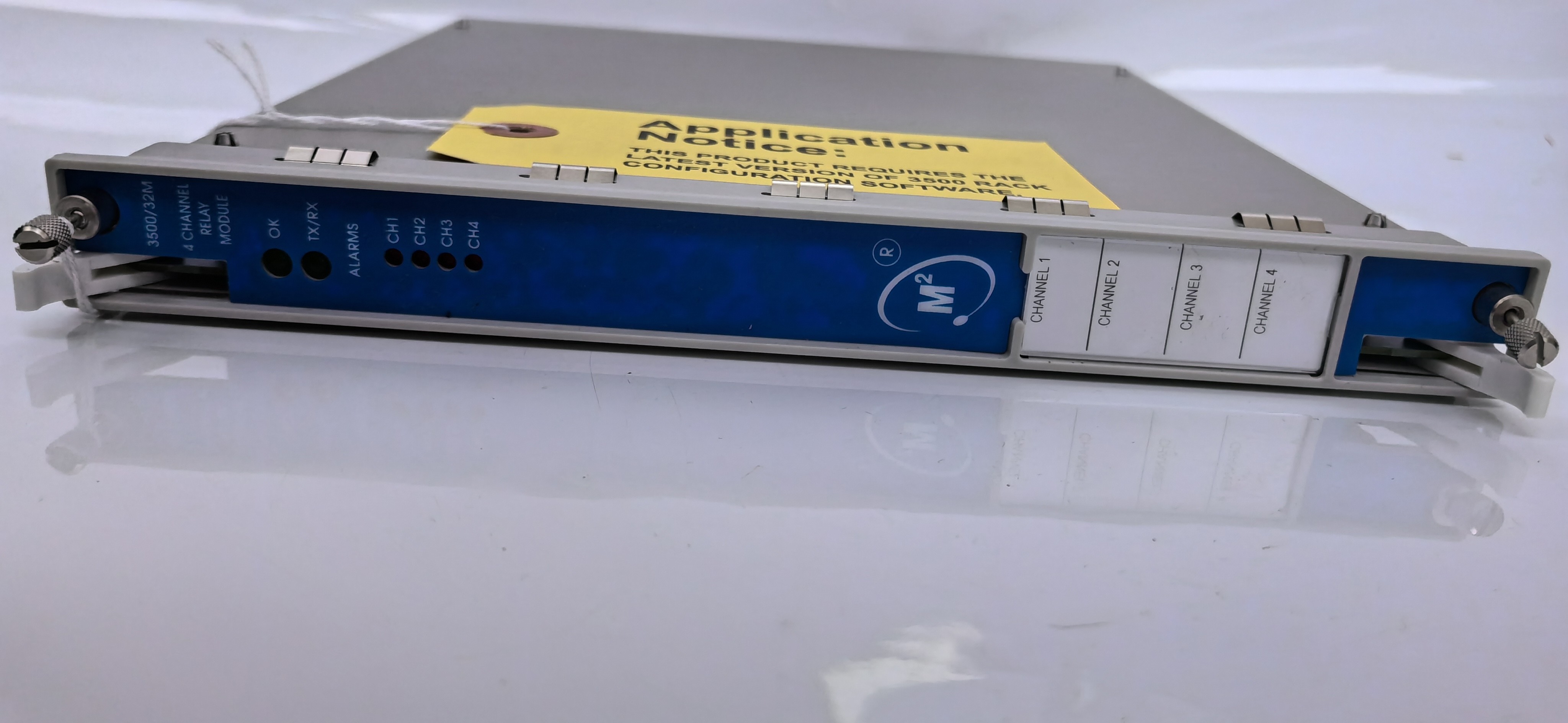

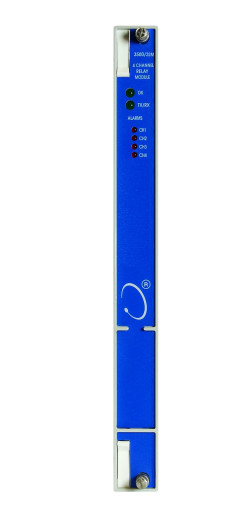

Bently Nevada 3500/32M 4 Channel Relay Module 149986-02

Bently Nevada 3500/32M 4 Channel Relay Module 149986-02
Bently Nevada 3500/32M 4 Channel Relay Module 149986-02 Bently Nevada 3500/32M 4 Channel Relay Module 149986-02 Bently Nevada 3500/32M 4 Channel Relay Module 149986-02

Large Image :  Bently Nevada 3500/32M 4 Channel Relay Module 149986-02

Product Details:
Place of Origin: USA
Brand Name: Bently Nevada
Certification: ROHS
Model Number: 149986-02
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: 12-16weeks
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

Bently Nevada 3500/32M 4 Channel Relay Module 149986-02

Description
Power Consumption: 5.8 Watts Typical Type: Single-pole, Double-throw (SPDT) Relays
Dimensions: 241 Mm X 24.4 Mm X 242 Mm Weight: 0.7 Kg (1.6 Lb.)
Main Module: 1 Full-height Front Slot I/O Modules: 1 Full-height Rear Slot.
Highlight:

3500/32M 4 Channel Relay Module

,

4 Channel Relay Module 149986-02

,

125720-01 bently nevada relay module

Bently Nevada Vibration Probe 3500/32M 4 Channel Relay Module
Product Specifications
Attribute Value
Power Consumption 5.8 watts typical
Type Single-pole, double-throw (SPDT) relays
Dimensions 241 mm x 24.4 mm x 242 mm
Weight 0.7 kg (1.6 lb.)
Main Module 1 full-height front slot
I/O Modules 1 full-height rear slot
Product Description

The Bently Nevada 3500/32M 4-Channel Relay Module is a full-height module that provides four independently programmable relay outputs. Multiple modules can be installed in any slots to the right of the Transient Data Interface Module.

  • Each relay features Alarm Drive Logic with AND/OR programming capability
  • Supports alarming inputs (Alert/Danger statuses), Not-OK, or individual PPLs
  • Compatible with any monitor channel or combination in the rack
  • Configurable using 3500 Rack Configuration Software
Ordering Information

3500/32 -AA-BB

A: Output Module

  • 01 - 4-Channel Relay Output Module

B: Agency Approval Option

  • 00 - None
  • 01 - cNRTLus (Class I, Div 2)
  • 02 - ATEX/IECEx/CSA (Class I, Zone 2)
Spare Parts
  • 149986-02 - Spare 4-Channel Relay Control Module
  • 125720-01 - Spare 4-Channel Relay Output Module (repair only)
  • 125720-02 - Spare 4-Channel Relay Output Module for hazardous area systems
  • 04425545 - Grounding wrist strap (single use)
  • 00580453 - Connector header, internal termination, 16-position, green
  • 00580436 - Connector header, internal termination, 6-position, green
  • 166M2390 - Connector header, push-in spring type (alternative for PN 00580436)
