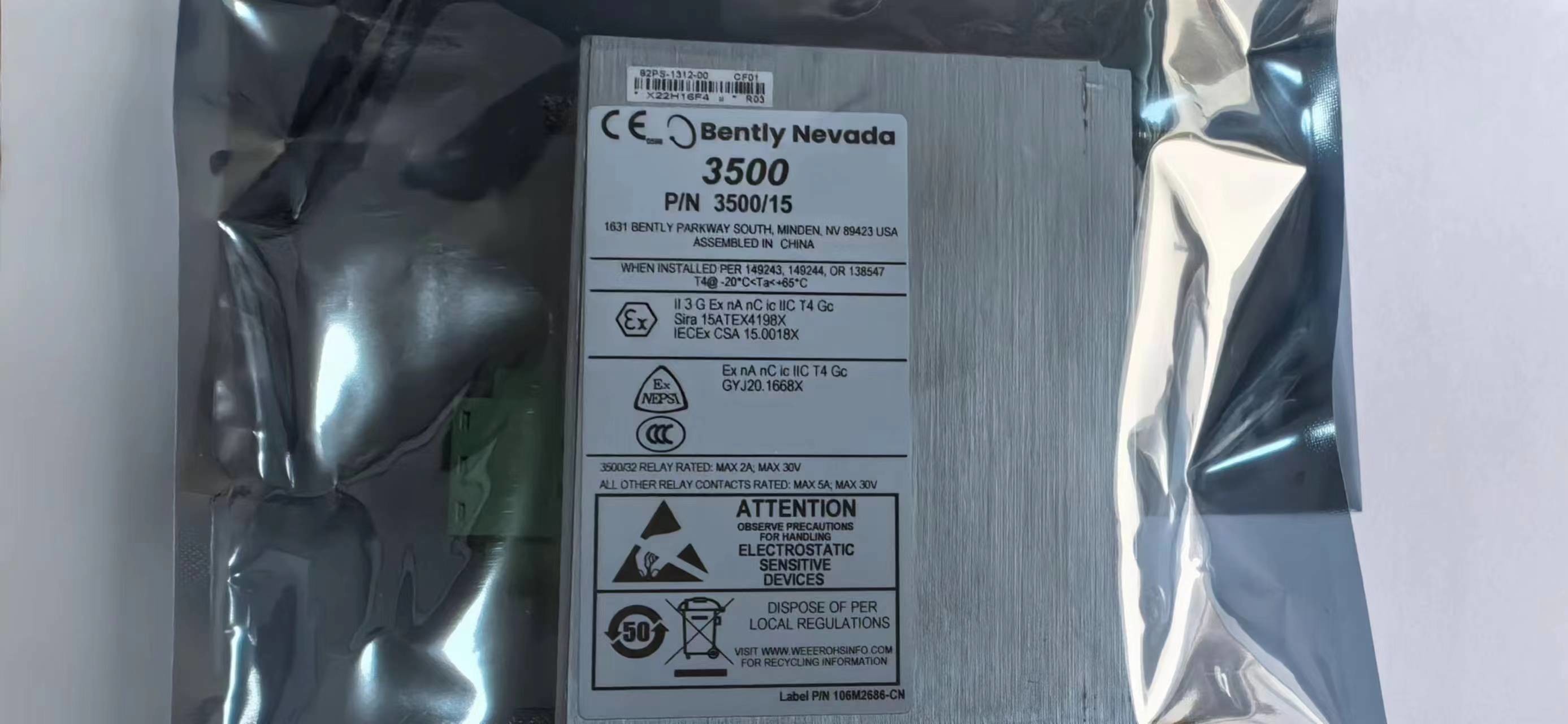

3500/15 Universal AC Bently Nevada Power Supply 85-264V 106M1079-01

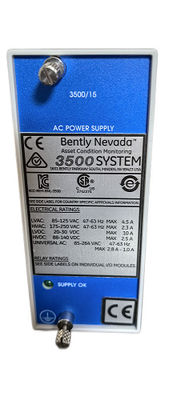

Large Image : 3500/15 Universal AC Bently Nevada Power Supply 85-264V 106M1079-01

Product Details:

Place of Origin:	China
Brand Name:	Bently Nevada
Certification:	CE
Model Number:	3500/15-05-05-00 106M1079-01 106M1081-01

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	factory original
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

3500/15 Universal AC Bently Nevada Power Supply 85-264V 106M1079-01

Description

Brand::	BENTLY NEVADA	Part No.::	106M1079-01
Universal AC Voltage:	85 To 264 Vac Rms	Weight:	1.39 Kg
Dimensions:	120.7 Mm X 50.8 Mm X 251.5 Mm	Color::	Blue
Highlight:	3500/15 bently nevada power supply , bently nevada power supply 106M1079-01 , bently nevada 3500 15 1.39 kg

3500/15 Bently Nevada 3500 System AC And DC Power Supplies 3500/15-05-05-00 106M1081-01

Product Attributes

Attribute	Value
Brand:	BENTLY NEVADA
Part No.:	106M1079-01
Universal AC Voltage	85 to 264 Vac rms
Weight	1.39 kg
Dimensions	120.7 mm x 50.8 mm x 251.5 mm
Color:	Blue

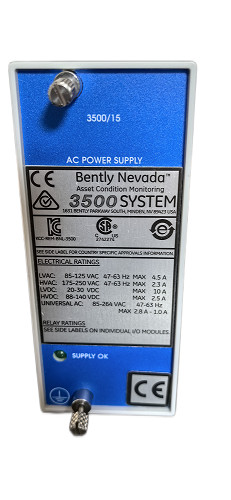

Product Description

The 3500/15 AC and DC Power Supplies are half-height modules designed for installation in designated slots on the left side of the rack. The 3500 rack can accommodate one or two power supplies with any combination of AC and DC configurations. Either supply can power a full rack independently.

Power Supply Configuration

When two power supplies are installed in a rack, the lower slot functions as the primary supply while the upper slot serves as the backup. The system maintains continuous operation when inserting or removing either power supply module as long as a second power supply remains installed.

Voltage Conversion

The 3500/15 AC and DC Power Supplies accept a wide range of input voltages and convert them to voltages suitable for use by other 3500 modules. Available power supply options include:

Universal AC Power
High Voltage DC Power Supply
Low Voltage DC Power Supply

Ordering Information

For detailed country and product specific approvals, refer to the Approvals Quick Reference Guide (108M1756) available from Bently.com.

3500/15 Power Supply Module (3500/15-AA-BB-CC)

Code	Description
03	Legacy High Voltage DC (88 to 140 Vdc)
04	Legacy Low Voltage DC (20 to 30 Vdc)
05	Universal AC Voltage (85 to 264 Vac rms)
06	High Voltage DC Supply
07	Low Voltage DC Supply

Spare Parts

Part Number	Description
106M1079-01	Universal AC Power Supply Module
106M1081-01	Universal AC Power Input Module
129486-01	Legacy High Voltage DC Power Supply Module
129478-01	Legacy High Voltage DC Power Input Module
133292-01	Legacy Low Voltage DC Power Supply Module
133300-01	Legacy Low Voltage DC Power Input Module
114M5329-01	High Voltage DC Power Supply
115M7750-01	High Voltage DC PIM
114M5330-01	Low Voltage DC Power Supply
114M5335-01	Low Voltage DC PIM
01720025	Replacement Fuse (for both AC Power Input Module and Legacy High Voltage DC Power Input Module)
01720045	Replacement Fuse (Low Voltage DC Power Input Module and Legacy Low Voltage DC Power Input Module)
120M3877	Replacement Fuse Fast blow rated at 5A/500 Vac Size 6.3 x 32 mm (Universal AC Power Input Module)
131150-01	Power Supply Blank Front Panel (qty 1, includes screws)
128085-01	Power Supply Rear Input Connector Cover (qty 1)
04310251	Screw for Power Supply Input Cover (qty 2)
129767	3500/15 Power Supply User Guide
118M0915-01	Replacement connector for Universal AC Power Input Module
118M0915-02	Replacement connector for DC Power Input Module
129M0198	Replacement fuse (High Voltage DC Power PIM)

Related Part Numbers

106M1079-01	106M1081-01
129486-01	129478-01
133292-01	133300-01
114M5329-01	115M7750-01
114M5330-01	114M5335-01
01720025	01720045
120M3877	131150-01
128085-01	04310251
129767	118M0915-01
118M0915-02	129M0198
