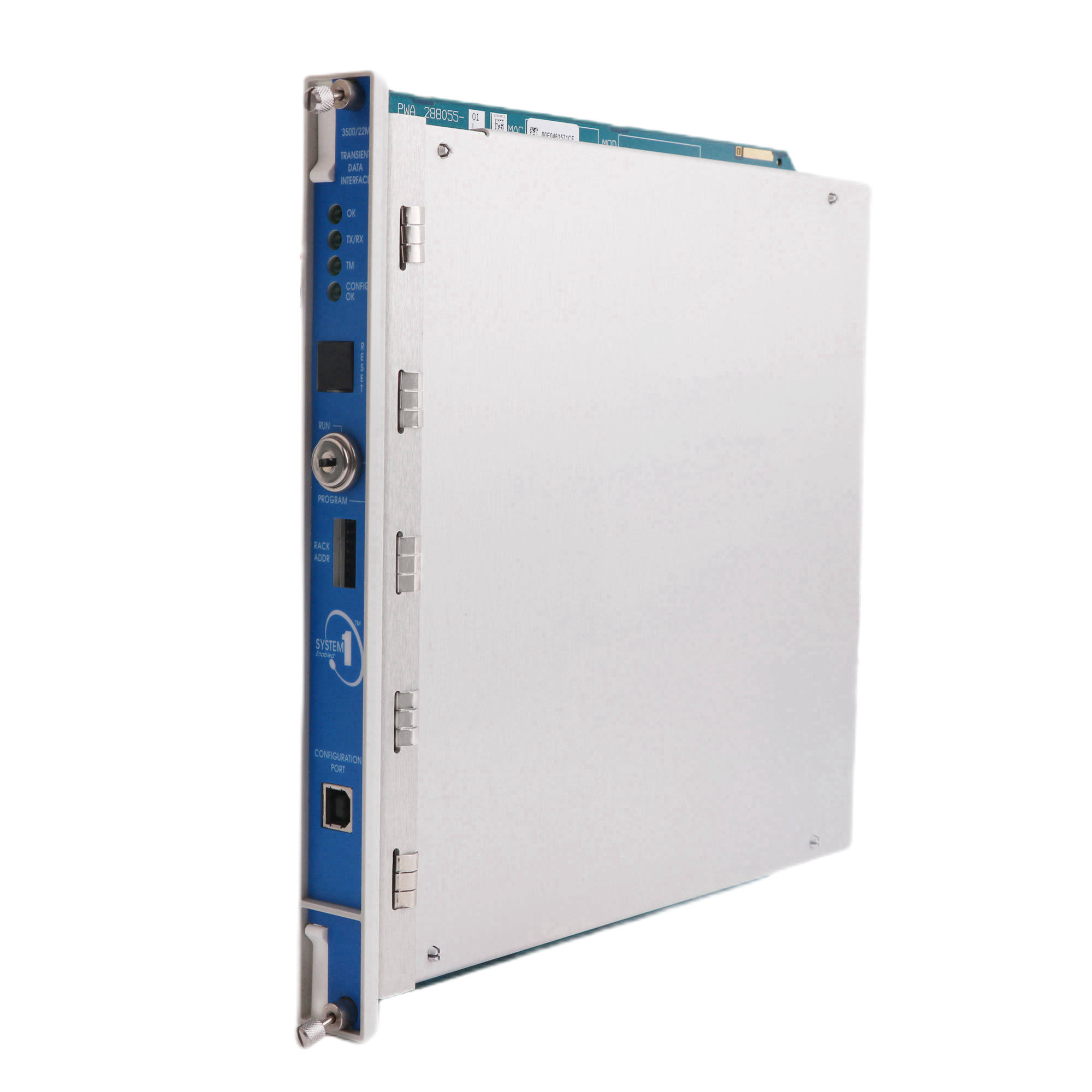

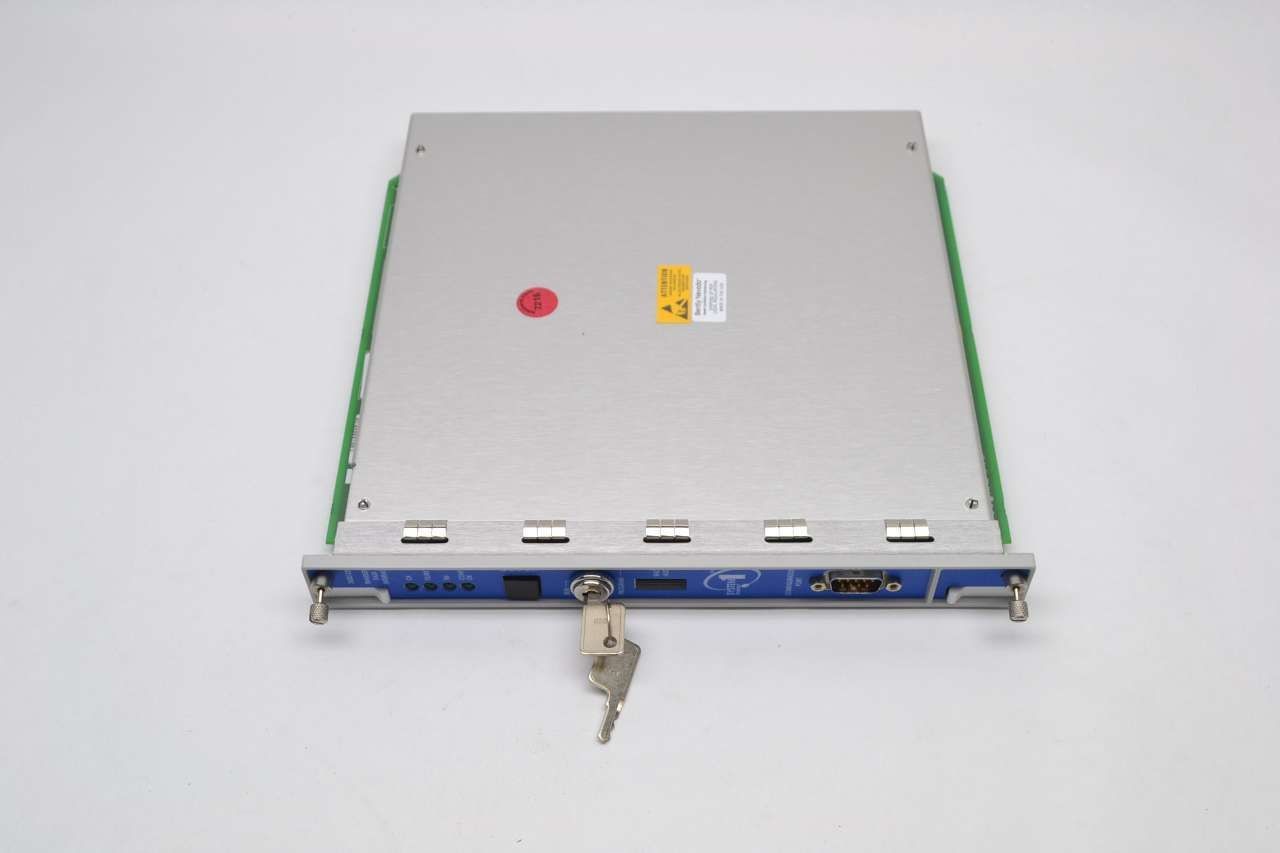

Ethernet I/O Transient Data Interface Bently Nevada 3500/22M 10.5 Watts

Ethernet I/O Transient Data Interface Bently Nevada 3500/22M 10.5 Watts
Ethernet I/O Transient Data Interface Bently Nevada 3500/22M 10.5 Watts Ethernet I/O Transient Data Interface Bently Nevada 3500/22M 10.5 Watts Ethernet I/O Transient Data Interface Bently Nevada 3500/22M 10.5 Watts

Large Image :  Ethernet I/O Transient Data Interface Bently Nevada 3500/22M 10.5 Watts

Product Details:
Place of Origin: USA
Brand Name: Bently Nevada
Certification: CE
Model Number: 3500/22-01-01-00 3500/22-01-02-00 288055-01 146031-01 146031-02
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: 12-16weeks
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

Ethernet I/O Transient Data Interface Bently Nevada 3500/22M 10.5 Watts

Description
Consumption: 10.5 Watts Front Panel: USB-B
10Base-T/ 100Base-TX I/O: 10Base-T Or 100Base-TX Ethernet, Autosensing 100Base-FX I/O: 100Base-FX Fiber-Optic Ethernet

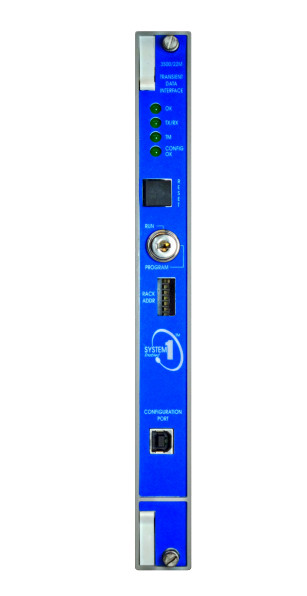

OK LED: Indicates When The 3500/22M Is Operating Properly TX/RX LED: Indicates When The 3500/22M Is Communicating With The Other Modules In The Rack
TM LED: Indicates When The 3500 Rack Is In Trip Multiply Mode CONFIG OK LED: Indicates That The 3500 Rack Has A Valid Configuration
Highlight:

Ethernet I/O Transient Data Interface

,

3500/22M Transient Data Interface

,

Bently Nevada Transient Data Interface

3500/22M Transient Data Interface for Bently Nevada 3500 System
Key Features
Attribute Value
Consumption 10.5 Watts
Front Panel USB-B
10Base-T/100Base-TX I/O 10Base-T or 100Base-TX Ethernet, autosensing
100Base-FX I/O 100Base-FX Fiber-Optic Ethernet
OK LED Indicates when the 3500/22M is operating properly
TX/RX LED Indicates when the 3500/22M is communicating with other modules in the rack
TM LED Indicates when the 3500 rack is in Trip Multiply mode
CONFIG OK LED Indicates that the 3500 rack has a valid configuration
Product Description
The 3500/22M Transient Data Interface (TDI) serves as the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the functionality of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor.
The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data, passing this data through an Ethernet link to the host software.
Static data capture capability is standard with the TDI. Using an optional Channel Enabling Disk allows the TDI to capture dynamic and high-resolution transient data. The TDI incorporates the communication processor function within the 3500 rack.
While the TDI provides functions common to the entire rack, it is not part of the critical monitoring path and doesn't affect the normal operation of the overall monitor system for automatic machinery protection. Every 3500 rack requires one TDI or RIM, which always occupies Slot 1 (next to the power supplies).
Ordering Information
3500/22M TDI Module and I/O
3500/22-AA-BB-CC
A: Transient Data Interface Type
01 - Standard (use for standard monitoring applications)
B: I/O Module Type
01 - 10Base-T/100Base-TX Ethernet
02 - 100Base-FX (Fiber Optic) Ethernet
03 - 10Base-T/100Base-TX Ethernet with gold-plated OK Relay contacts
04 - 100Base-FX (fiber optic) Ethernet with gold-plated OK Relay contacts
C: Agency Approval Option
00 - None
01 - CSA/NRTL/C (Class 1, Division 2)
02 - Multi (CSA, ATEX, IECEx)
Spare Parts
288055-01 Standard Transient Data Interface Module with USB cable
123M4610* 10 foot A to B USB cable
146031-01 10Base-T/100Base-TX I/O Module
146031-02 100Base-FX (Fiber Optic) I/O Module
161580 3500/22M TDI Operation and Maintenance User Guide
164466 Network Accessories Datasheet
