Bently Nevada 200155 Vibration Accelerometer for Machinery Monitoring

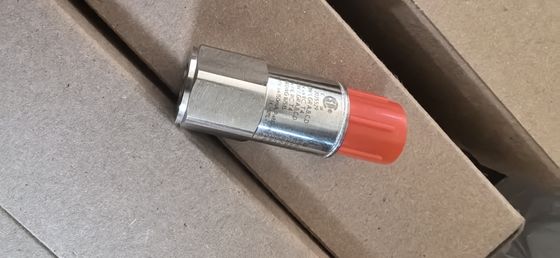

Large Image : Bently Nevada 200155 Vibration Accelerometer for Machinery Monitoring

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CE
Model Number:	200155-18-CN

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	12-16weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Bently Nevada 200155 Vibration Accelerometer for Machinery Monitoring

Description

Used With ProTIM Option:	Low Frequency Accelerationto-Velocity Channel Type (- 05)	Type Of Application:	Fin-Fan, Slow Rotating Shafts
Measurement Range In M/s2 (g):	±196 (±20)	Mounted Resonant Frequency:	>20 KHz (>1200 Kcpm)
Amplitude Linearity (1 To 10g Pk):	±2%	Transverse Sensitivity:	≤7%
Highlight:	Bently Nevada 200155 Machinery Condition Monitoring , Bently Nevada 200155

Bently Nevada 200155 Machinery Condition Monitoring Measurement Range in m/s² g ±196 ±20

Key Specifications

Attribute	Value
Used with ProTIM Option	Low Frequency Acceleration-to-Velocity channel type (-05)
Type of Application	Fin-Fan, slow rotating shafts
Measurement Range in m/s² (g)	±196 (±20)
Mounted Resonant Frequency	>20 kHz (>1200 kcpm)
Amplitude Linearity (1 to 10g pk)	±2%
Transverse Sensitivity	≤7%

Product Overview

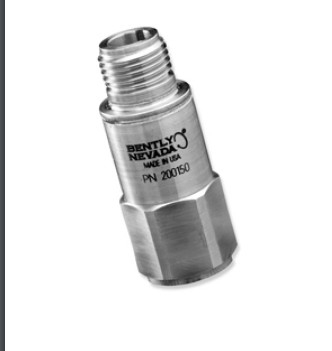

The Bently Nevada 20015x Accelerometers are general purpose, wide frequency, case-mounted seismic transducers designed for use with Trendmaster ProTIMs.

The 20015x Accelerometers feature a hermetically sealed, stainless steel case. This design provides an extremely rugged transducer that is well suited for harsh industrial environments. The transducer's top-mounted, 5-pin connector allows for easy installation and removal of the interconnecting signal cable. A 3/8-24 threaded hole on the bottom of the sensor's casing accommodates several mounting options.

Mounting Options (200155-AA-BB)

A: Mounting Stud Option

No mounting stud provided

3/8-24 thread, 2 adhesive mount frames with adhesive

3/8-24 to 3/8-24 UNF 1-3/8 inch hex plate stud

3/8-24 to 1/2-20 UNF 1-3/8 inch hex plate stud

3/8-24 to 1/4 NPT 1-3/8 inch hex plate stud

3/8-24 to 1/4 NPT, 3/4 inch hex stud

3/8-24 to 3/8 NPT, 3/4 inch hex stud

3/8-24 to 1/2 NPT 1 inch hex stud

3/8-24 to 3/4 NPT, 1-1/4 inch hex stud

3/8-24 to 1 NPT, 1-3/8 inch hex stud

3/8-24 to 1-1/4 NPT, 1-3/4 inch hex stud

3/8-24 to 1/4-20 UNC, 3/4 inch hex stud

3/8-24 to 5/16-18 UNC, 3/4 inch hex stud

3/8-24 to 3/8-24 UNF, 3/4 inch hex stud

3/8-24 to 3/8-16 UNC, 3/4 inch hex stud

3/8-24 to 1/2-13 UNC, 3/4 inch hex stud

3/8-24 to 3/8-16 UNC 1-3/8 inch hex plate stud

3/8-24 to M8x1 1-3/8 inch hex plate stud

Quick-Set XDCR adapter, 1-inch hex stud

3/8-24 thread, 1 magnetic mount base

3/8-24 outer diameter to M6x1 inner diameter 1-3/8 inch hex plate stud

3/8-24 to M8x1.25 1-3/8 inch hex plate stud

3/8-24 to M16x2.0 1-3/8 inch hex plate stud

B: Approvals

Multiple Approvals (CSA, ATEX, and IECEx)

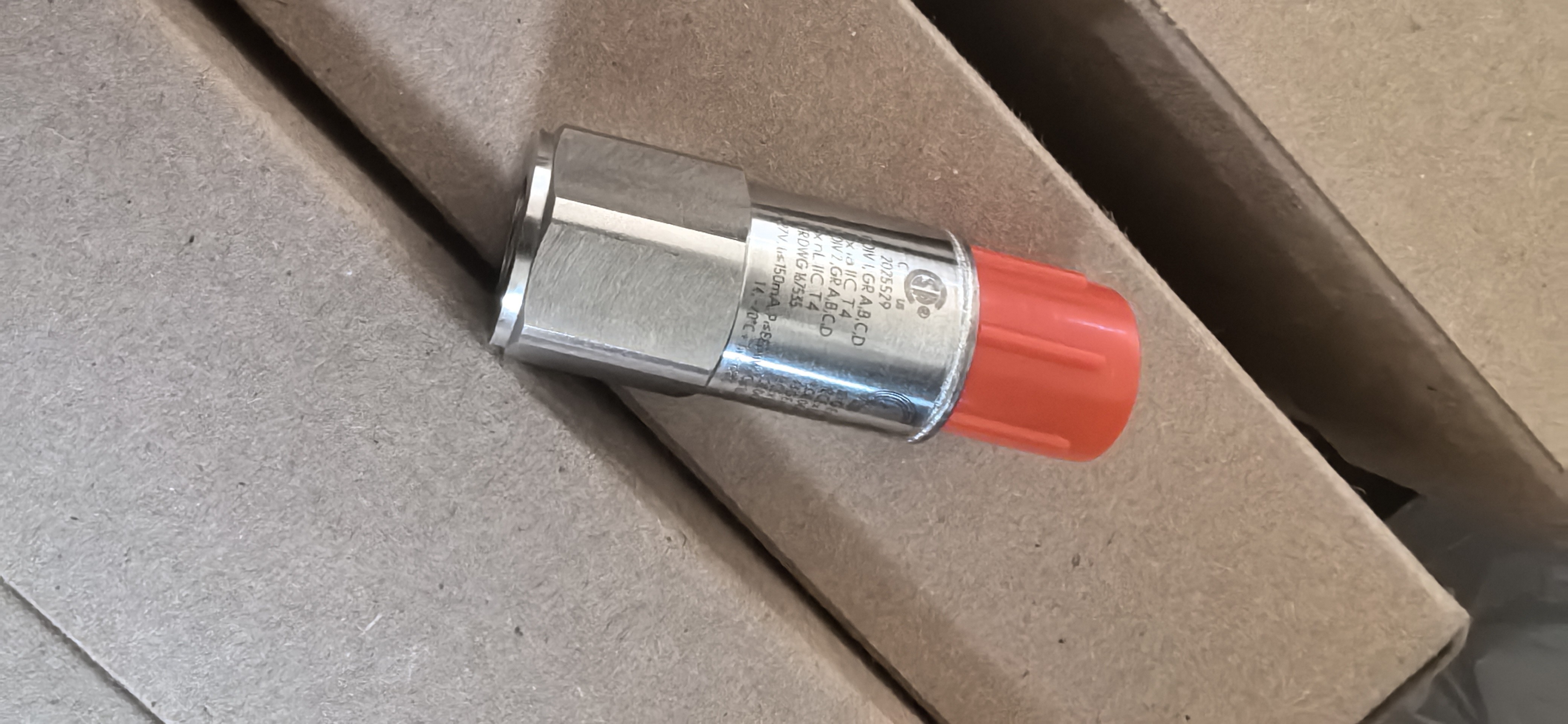

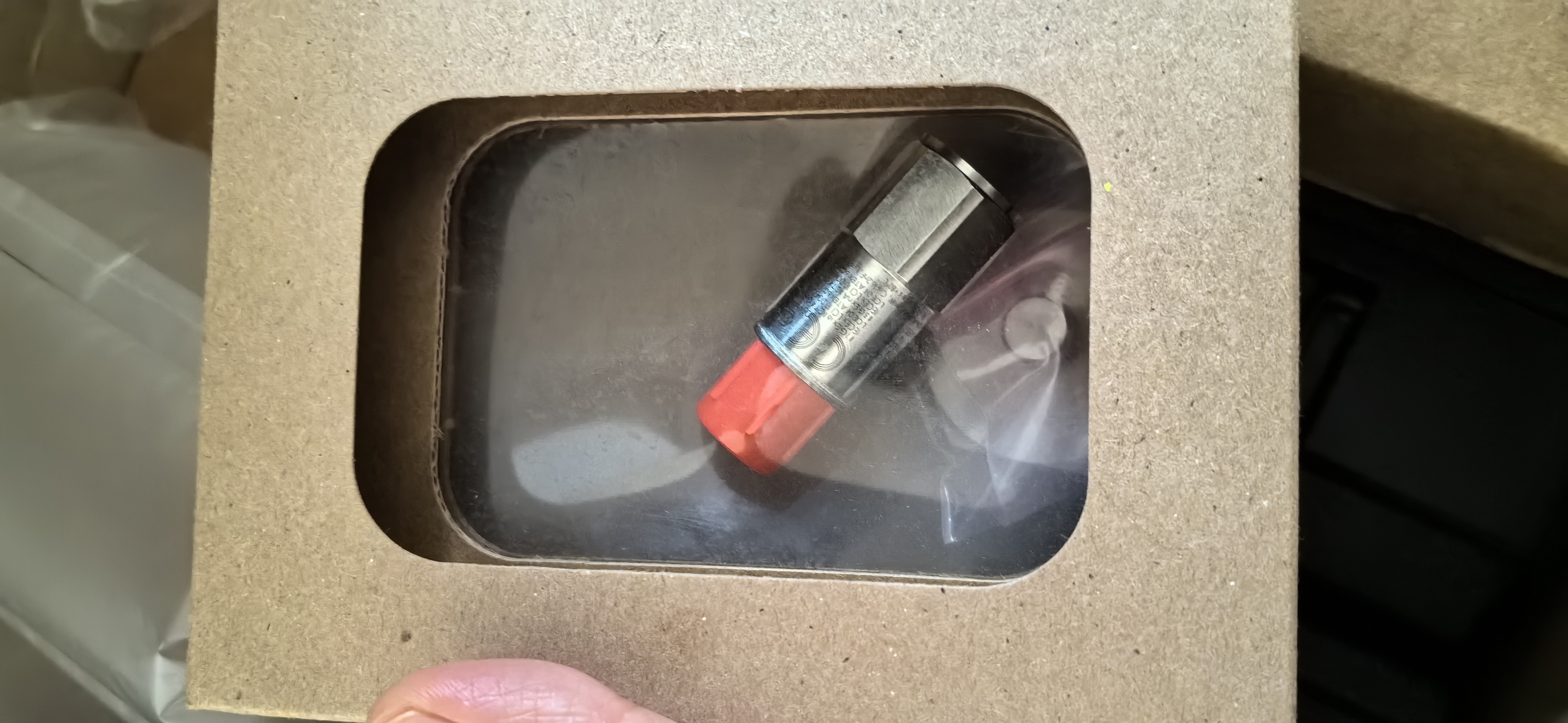

Product Images
