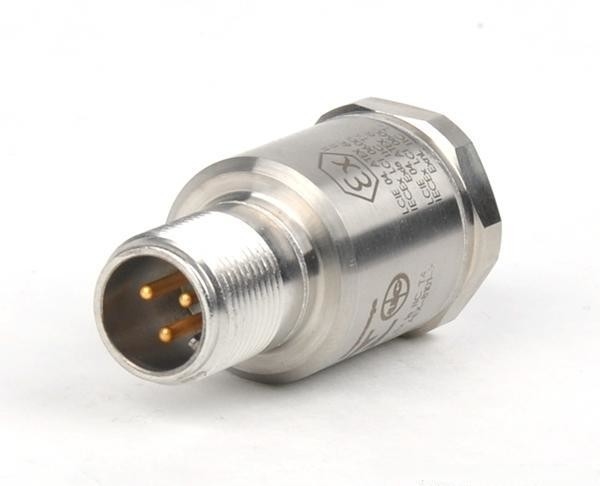

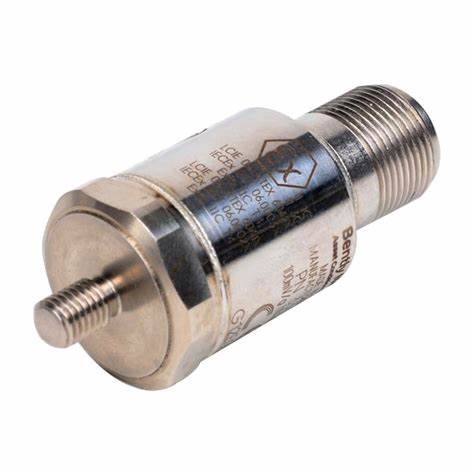

Bently Nevada 330400 Accelerometer 100 MV/G Sensitivity 50g Peak

Large Image : Bently Nevada 330400 Accelerometer 100 MV/G Sensitivity 50g Peak

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CE

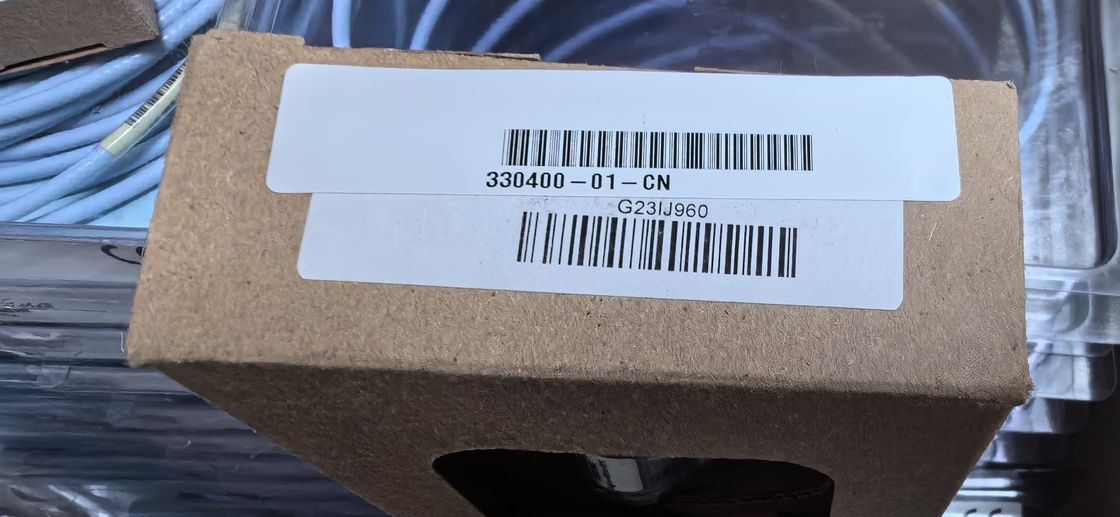

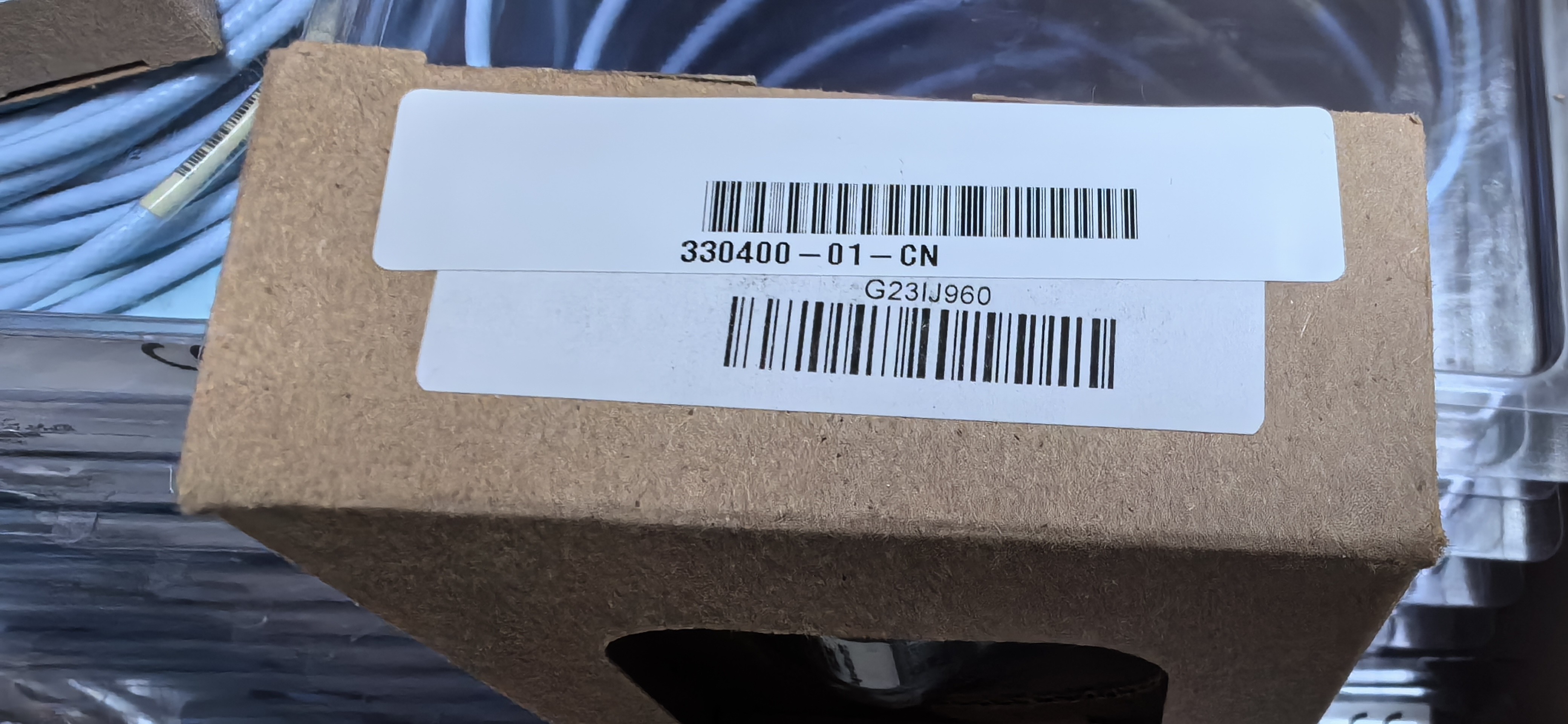

Model Number:	330400-01-CN

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	12-16weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Bently Nevada 330400 Accelerometer 100 MV/G Sensitivity 50g Peak

Description

Sensitivity:	10.2 MV/m/s2 (100 MV/g) ±5%.	Acceleration Range:	490 M/s2 (50 G) Peak Overall Acceleration Within The 10 Hz To 15 KHz Frequency Span. Vibration At Frequencies Above 15 KHz, Especially At The Transducers Resonance Will Significantly Decrease This Range.
Amplitude Linearity:	±1% To 490 M/ S2 (50 G) Peak.	Broadband Noise Floor (10 Hz To 15 KHz):	0.039 M/s2 (0.004 G) Rms.
Frequency Response:	10 Hz To 15 KHz (600 Cpm To 900,000 Cpm) ±3dB; 30 Hz To 10 KHz (1800 Cpm To 600,000 Cpm) ±10%	Temperature Sensitivity:	-11% To +3% Typical Over The Operating Temperature Range.
Highlight:	bently nevada accelerometer 100 mV/g , bently nevada 330400 accelerometer , 330400 accelerometer 330400-01-CN

Bently Nevada Machinery Condition Monitoring 330400 Temperature Sensitivity -11% to 3%

Product Specifications

Attribute	Value
Sensitivity	10.2 mV/m/s2 (100 mV/g) ±5%
Acceleration range	490 m/s2 (50 g) peak overall acceleration within the 10 Hz to 15 kHz frequency span. Vibration at frequencies above 15 kHz, especially at the transducers resonance will significantly decrease this range.
Amplitude Linearity	±1% to 490 m/s2 (50 g) peak
Broadband Noise Floor (10 Hz to 15 kHz)	0.039 m/s2 (0.004 g) rms
Frequency Response	10 Hz to 15 kHz (600 cpm to 900,000 cpm) ±3dB; 30 Hz to 10 kHz (1800 cpm to 600,000 cpm) ±10%
Temperature Sensitivity	-11% to +3% typical over the operating temperature range

Product Description

The Bently Nevada 330400 accelerometer is designed for critical machinery applications requiring casing acceleration measurements, particularly in gear mesh monitoring applications. This model meets the requirements of American Petroleum Institute Standard 670 for accelerometers.

Key features include:

50 g peak amplitude range
100 mV/g sensitivity
Compliant with API Standard 670
Robust design for industrial environments

Model Variants

330400-AA-BB

Where:

A: Mounting Thread Option
- 01 - ¼-28 UNF integral stud
- 02 - M8 X 1 integral stud
B: Agency Approval Option
- 00 - None
- 05 - Multiple approvals (CSA, ATEX, IECEx)
