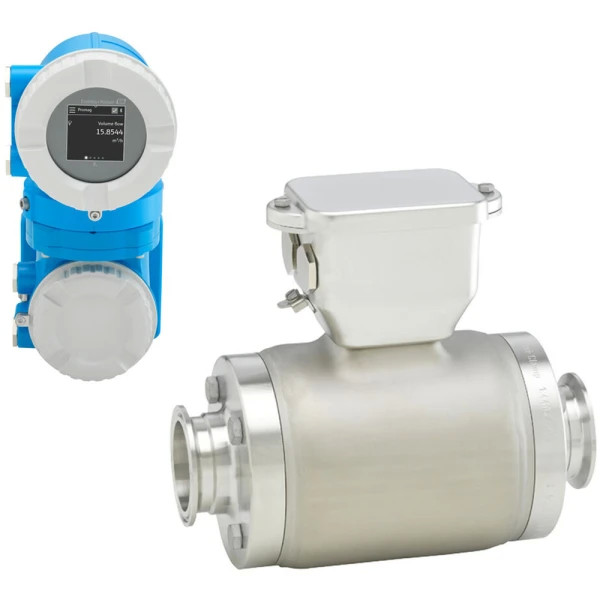

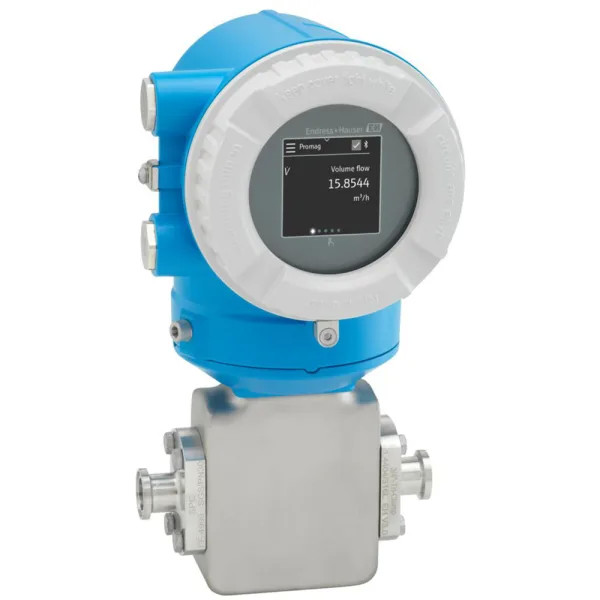

Endress Hauser Proline Promag H 10 Electromagnetic Flowmeter DN 2-150

Endress Hauser Proline Promag H 10 Electromagnetic Flowmeter DN 2-150
Endress Hauser Proline Promag H 10 Electromagnetic Flowmeter DN 2-150 Endress Hauser Proline Promag H 10 Electromagnetic Flowmeter DN 2-150

Large Image :  Endress Hauser Proline Promag H 10 Electromagnetic Flowmeter DN 2-150

Product Details:
Place of Origin: Germany
Brand Name: Endress+Hauser
Certification: CE
Model Number: 5HBB50-AAADBJA0AFDAS0AA1+AA(5HBB50-3RW7/0)
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

Endress Hauser Proline Promag H 10 Electromagnetic Flowmeter DN 2-150

Description
Medium Temperature Range: –20 To +150 °C (–4 To +302 °F) Max. Measurement Error: Volume Flow (standard): ±0.5 % O.r. ± 1 Mm/s (0.04 In/s)
Measuring Range: 0.06 Dm³/min To 600 M³/h (0.015 To 2650 Gal/min) Max. Process Pressure: PN 40, Class 150, 20K
Nominal Diameter Range: DN 2 To 150 (¹⁄₁₂ To 6") Power Supply: DC 24 V AC 100 To 230 V AC 100 To 230 V / DC 24 V (non-hazardous Area)
Highlight:

Endress+Hauser Proline Promag H 10

,

H 10 Electromagnetic Flowmeter

,

PN 40 endress hauser proline promag

Endress+Hauser Proline Promag H 10 Electromagnetic Flowmeter 5HBB50 For Non-Hazardous Area
Product Specifications
Attribute Value
Medium temperature range –20 to +150 °C (–4 to +302 °F)
Max. measurement error Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Measuring range 0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min)
Max. process pressure PN 40, Class 150, 20K
Nominal diameter range DN 2 to 150 (¹⁄₁₂ to 6")
Power supply DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area)
Product Description

The Endress+Hauser Proline Promag H 10 electromagnetic flowmeter is the preferred sensor for hygienic applications in the food and beverage and life sciences industries. With its straightforward hardware and software design, the Promag H 10 simplifies every step in its lifecycle from engineering to servicing while maintaining Endress+Hauser quality standards. Heartbeat Technology ensures measurement reliability and extends recalibration cycles.

  • Bidirectional measuring principle virtually independent of pressure, density, temperature and viscosity
  • Ideal for applications with sanitary requirements
  • PFA liner for chemical resistance
  • Stainless steel sensor housing (3-A, EHEDG compliant)
  • CIP-/SIP-cleanable wetted materials
  • System integration with HART, Modbus RS485, IO-Link
  • Flexible operation with app and optional display
Product Image
Endress Hauser Proline Promag H 10 Electromagnetic Flowmeter DN 2-150 0
Related Models
50P50-EA2A1AA0BAAA Successor type:5P3B50-AAIBAEAFADED5K2AA2 | 5P3B50-2JKV5/0
53W65-HHOB1BA0ABAA Successor type:5W3B65-BDEDBAEAFAAHD3S0BA2+D8LA | 5W3B65-64E6/0
80E08-AD2SAABAABAA Successor type:8E3B08-BDDBAEAFAASAD2SHA2 | 8E3B08-R5J6/0
50W1Z-HC0A1AA0ABAA Successor type:5W4C1Z-AAELHA0AHD3K0A | 5W4C1Z-4FC0/0
53P1H-ECOB1BA0ABAA Successor type: 5P3B1H-BDDBAEAFAAED3K0BA2 | 5P3B1H-1VJ61/0
50P1H-EC1A1A10AAAA Successor type: 5P3B1H-AAIBAEAFAAED3K1AA2 | 5P3B1H-W4T6/0
50W3H-HCOA1AA0ABAA Successor type: 5W4C3H-AAELHA0AHD3K0A | 5W4C3H-D530/0
10W40-UAGA1AA0B4AA Successor type: 5WBB40-AAEAEBKA0DUD5KGAA1 | 5WBB40-AQ56/0
50W4F-HC0A1AK2ABAA Successor type: 5W4C4F-AAGLHP2AHD3K0A+CB | 5W4C4F-FMV7/0
50W40-UL1A1AA0A4AA Successor type:5W4C40-AAELHA0AUA1K1A | 5W4C40-6JK1/0
50W80-HC0A1AK1ABAA Successor type: 5W4C80-AAELHP1AHD3K0A+CB | 5W4C80-U5C3/0
50W2H-UL1A1AA0A4AA Successor type: 5W4C2H-AAELHA0AUA1K1A | 5W4C2H-2QTR7/0
50P50-EA1A1ACOAAAA Successor type:5P5B50-AAIBAEAAFAAAAAED5K1AA2 | 5P5B50-PRP0/0
50P40-EA1A1AAOBAAW Successor type: 5P3B40-AAIBAAAFADED5K1AA2 | 5P3B40-1F7J6/0
10W32-UAGA1AA0A4AA Successor type: 5WBB32-AAGAEBKA0AUD5KGAA1 | 5WBB32-5HV2/0
53W1H-UAOB1AAOAAAA Successor type:5W4C1H-AAELHA0AUD5K0B | 5W4C1H-W2M0/0
10W1H-UCGA1AA0B4AA Successor type:5WBB1H-AAEAEBKA0DUD3KGAA1 | 5WBB1H-RE98/0
83F40-AD2SAA3AAGAA Successor type:8F3B40-BDEBAEAFAASAD2SAA2 | 8F3B40-2CQ12/0
50W1F-H50A1A10B7AW Successor type:5W4C1F-AAELHA0DHM3K0A | 5W4C1F-2URK6/0
50W2H-UB0A1AA0AAAW Successor type: 5W4C2H-AAELHA0AUD4K0A | 5W4C2H-LX75/0
50W1H-HCOA1AK2AAAA Successor type:5W4C1H-AAELHP2AHD3K0A+CB | 5W4C1H-ML98/0
53P15-EA0B1AAOAAAJ 5P3B15-AAILAAAFAAED5K0BA2 | 5P3B15-129A2/0
50W50-UL1A1AA0A4AA 5W4C50-AAELHA0AUA1K1A | 5W4C50-F9C8/0
50088281
50W80-UL1A1AA0A4AA 5W4C80-AAELHA0AUA1K1A | 5W4C80-27D22/0
