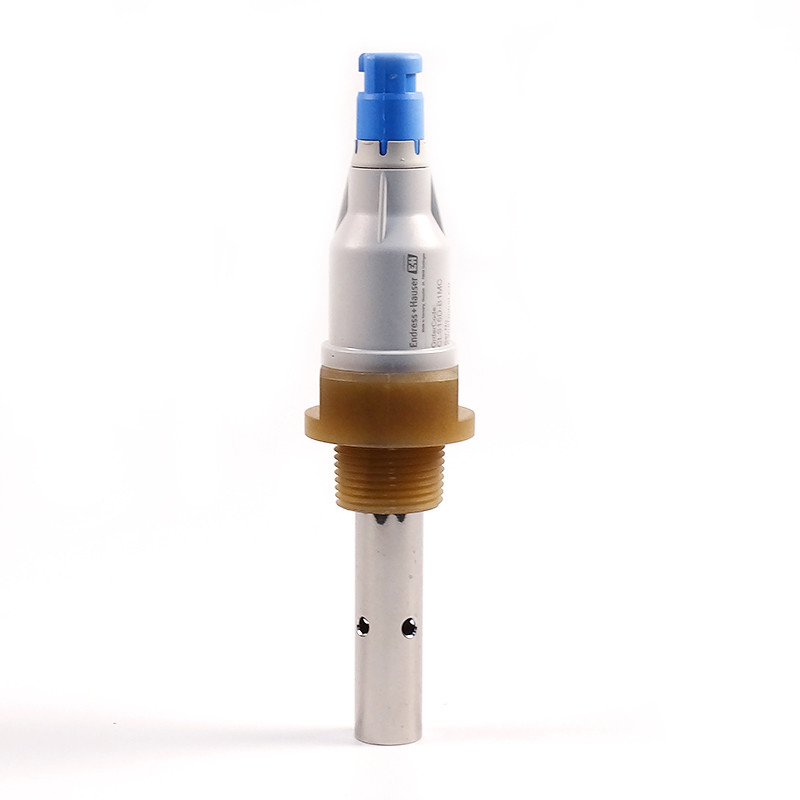

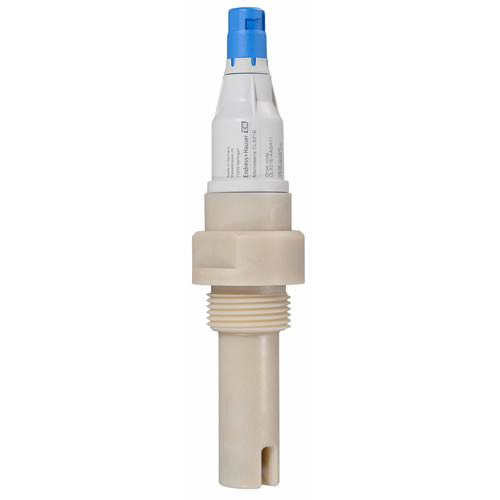

Endress Hauser CLS21E Digital Conductivity Sensor with Graphite Electrodes

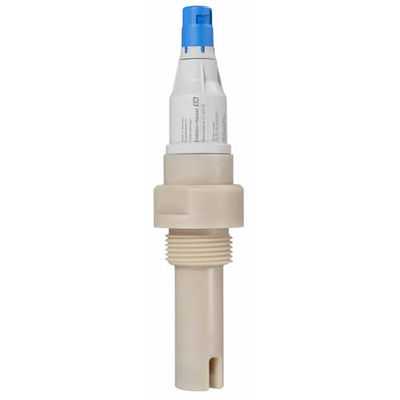

Large Image : Endress Hauser CLS21E Digital Conductivity Sensor with Graphite Electrodes

Product Details:

Place of Origin:	Germany
Brand Name:	Endress+Hauser
Certification:	CE
Model Number:	CLS21E-AAGA11

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Endress Hauser CLS21E Digital Conductivity Sensor with Graphite Electrodes

Description

Measuring Principle:	Conductive Conductivity Cell With Graphite Electrodes	Characteristic:	Digital 2-electrode Conductivity Sensor
Measuring Range:	K=1: 10 µS/cm To 20 MS/cm	Design:	2-electrode Conductivity Cell With Parallel Arranged Electrodes
Material:	Sensor Shaft: PES Electrodes: Graphite
Highlight:	Memosens CLS21E conductivity sensor , Endress+Hauser CLS21E conductivity sensor , Endress+Hauser Digital conductivity sensor

Endress+Hauser Digital Conductivity Sensor Memosens CLS21E PES Sensor Shaft with Graphite Electrodes

Product Specifications

Attribute	Value
Measuring principle	Conductive conductivity cell with graphite electrodes
Characteristic	Digital 2-electrode conductivity sensor
Measuring range	k=1: 10 µS/cm to 20 mS/cm
Design	2-electrode conductivity cell with parallel arranged electrodes
Material	Sensor shaft: PES Electrodes: graphite

Product Overview

The Memosens CLS21E is a robust digital conductivity sensor designed for water applications with medium conductivities. It delivers precise, reliable measurements for optimal quality monitoring. The corrosion-free construction and high mechanical stability ensure extended operational life.

Key Features

Memosens 2.0 digital technology for maximum process and data integrity
Facilitates predictive maintenance and IIoT services
International explosion protection approvals (ATEX, FM, CSA, NEPSI)
Suitable for hazardous area applications

Typical Applications

Potable water treatment
Desalination plants
Industrial water treatment
River/lake monitoring

Related Models

CLS21E-BAGA11	CLS21E-AAHA11
CLS21E-CIGA11	CLS21E-BAHA11
CLS21E-HRGA11	CLS21E-AAHA11
CLS21E-IAGA11	CLS21E-CIHA11
CLS21E-JAGA11	CLS21E-HRHA11
CLS21E-KAGA11	CLS21E-IAHA11
CLS21E-MAGA11	CLS21E-JAHA11
CLS21E-NAGA11	CLS21E-JAHA11
CLS21E-UAGA11	CLS21E-JAHA11
CLS21E-NAHA11	CLS21E-JAHA11
