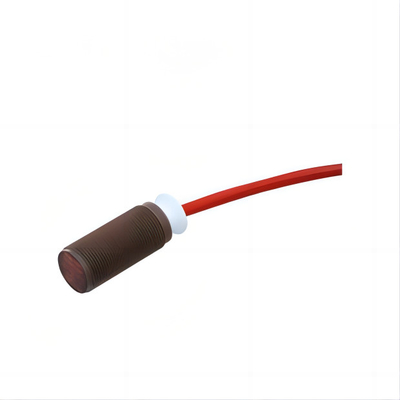

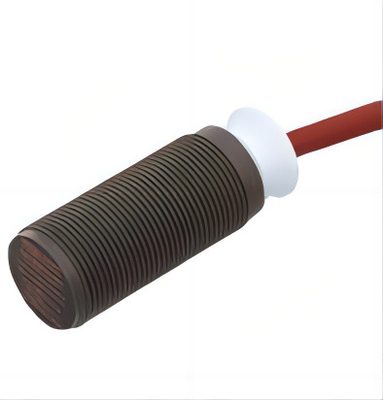

P+F 2 Wire Inductive Proximity Sensor NJ5-18GK-N-150 NC Flush

P+F 2 Wire Inductive Proximity Sensor NJ5-18GK-N-150 NC Flush
P+F 2 Wire Inductive Proximity Sensor NJ5-18GK-N-150 NC Flush P+F 2 Wire Inductive Proximity Sensor NJ5-18GK-N-150 NC Flush

Large Image :  P+F 2 Wire Inductive Proximity Sensor NJ5-18GK-N-150 NC Flush

Product Details:
Place of Origin: Germany
Brand Name: P+F
Certification: CE
Model Number: NJ5-18GK-N-150
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

P+F 2 Wire Inductive Proximity Sensor NJ5-18GK-N-150 NC Flush

Description
Switching Function: Normally Closed (NC) Output Type: 2-wire
Rated Operating Distance: 5 Mm Installation: Flush
Assured Operating Distance: 0 ... 4.05 Mm Reduction Factor RAl: 0.4
Reduction Factor RCu: 0.3 Reduction Factor R304: 0.85
Highlight:

2 Wire Inductive Proximity Sensor

,

P+F Inductive Proximity Sensor

,

NJ5-18GK-N-150

2 Wire P+F Sensors Inductive Proximity Sensor NJ5-18GK-N-150
Key Specifications
Attribute Value
Switching function Normally closed (NC)
Output type 2-wire
Rated operating distance 5 mm
Installation flush
Assured operating distance 0 ... 4.05 mm
Reduction factor rAl 0.4
Reduction factor rCu 0.3
Reduction factor r304 0.85
Product Description

Inductive Proximity Sensor NJ5-18GK-N-150 is a high-performance sensor designed for industrial applications requiring reliable object detection.

General Specifications
  • Switching function: Normally closed (NC)
  • Output type: NAMUR
  • Rated operating distance: 5 mm
  • Installation: flush
  • Assured operating distance: 0 ... 4.05 mm
  • Reduction factor rAl: 0.4
  • Reduction factor rCu: 0.3
  • Reduction factor r304: 0.85
  • Output type: 2-wire
Nominal Ratings
  • Nominal voltage: 8.2 V (Ri approx. 1 kΩ)
  • Switching frequency: 0 ... 500 Hz
  • Hysteresis: 1 ... 10 typ. 5 %
  • Current consumption:
    • Measuring plate not detected: min. 3 mA
    • Measuring plate detected: ≤ 1 mA
Functional Safety Related Parameters
  • Safety Integrity Level (SIL): SIL 2
  • MTTFd: 4566 a
  • Mission Time (TM): 20 a
  • Diagnostic Coverage (DC): 0 %
Compliance with Standards and Directives
  • NAMUR EN 60947-5-6:2000
  • IEC 60947-5-6:1999
  • EN 60947-5-2:2007
  • EN 60947-5-2/A1:2012
  • IEC 60947-5-2:2007
  • IEC 60947-5-2 AMD 1:2012
Approvals and Certificates
  • IECEx approval
  • ATEX approval
  • UL approval: cULus Listed, General Purpose
  • CCC approval
  • NEPSI approval
  • TIIS approval on request
  • ANZEx 18.3018X
  • KCC approval
  • Marine approval DNVGL TAA00001A5
Ambient Conditions
  • Ambient temperature: -25 ... 100 °C (-13 ... 212 °F)
Mechanical Specifications
  • Connection type: cable
  • Housing material: PBT/PPS
  • Sensing face: PBT
  • Degree of protection: IP66 / IP68
  • Cable specifications:
    • Diameter: 6 mm ± 0.2 mm
    • Bending radius: > 10 x cable diameter
    • Material: PVC
    • Core cross section: 0.75 mm²
    • Length: 2 m
  • Dimensions:
    • Length: 39 mm
    • Diameter: 18 mm
