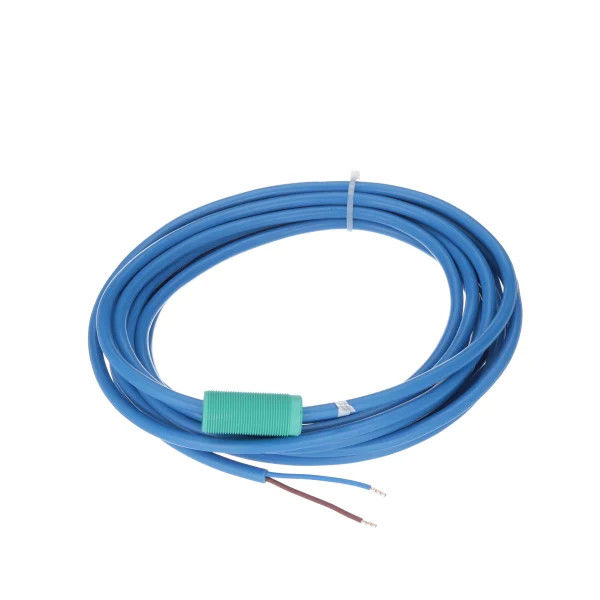

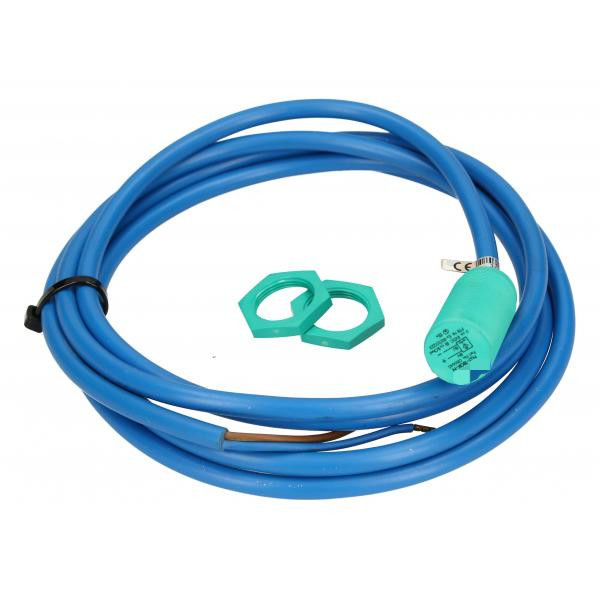

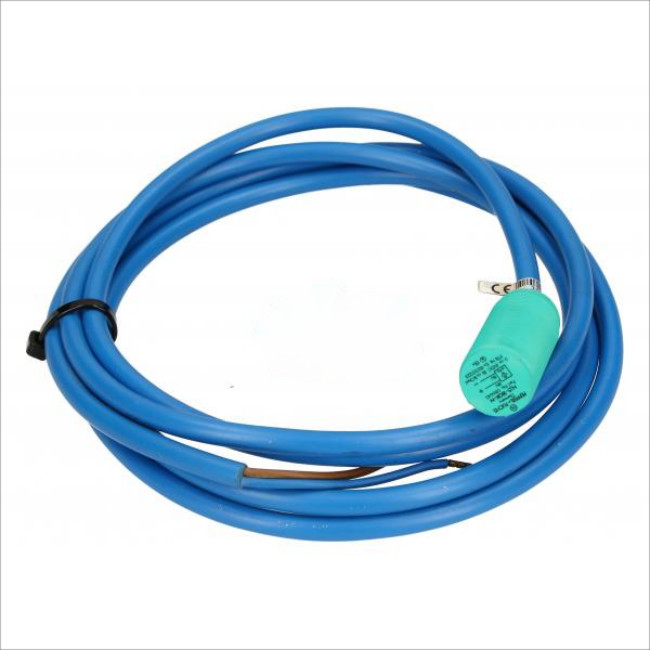

P&F Sensors NJ5-18GK-N Inductive Sensor 5mm NAMUR SIL 2 IP66/IP68

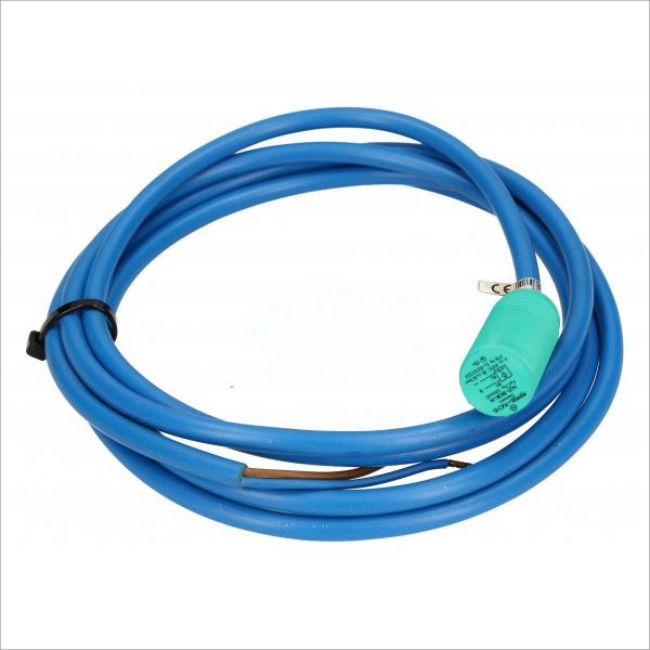

Large Image : P&F Sensors NJ5-18GK-N Inductive Sensor 5mm NAMUR SIL 2 IP66/IP68

Product Details:

Place of Origin:	Germany
Brand Name:	P+F
Certification:	CE
Model Number:	NJ5-18GK-N

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

P&F Sensors NJ5-18GK-N Inductive Sensor 5mm NAMUR SIL 2 IP66/IP68

Description

Rated Operating Distance:	5 Mm	Safety Integrity Level (SIL):	SIL 2
Mission Time (TM):	20 A	Standards:	EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012
Marine Approval:	DNVGL TAA00001A5	Connection Type:	Cable
Ambient Temperature:	-25 ... 100 °C (-13 ... 212 °F)	Degree Of Protection:	IP66 / IP68
Highlight:	P&F Sensors NJ5-18GK-N , NJ5-18GK-N Inductive Sensor , Inductive Sensor 5mm

5mm P+F Sensors Inductive Sensor EN 60947 NJ5-18GK-N

Product Attributes

Attribute	Value
Rated operating distance	5 mm
Safety Integrity Level (SIL)	SIL 2
Mission Time (TM)	20 a
Standards	EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012
Marine approval	DNVGL TAA00001A5
Connection type	cable
Ambient temperature	-25 ... 100 °C (-13 ... 212 °F)
Degree of protection	IP66 / IP68

Product Description

Inductive sensor NJ5-18GK-N

Extended temperature range
Switching function: Normally closed (NC)
Output type: NAMUR
Installation: flush
Output type: 2-wire
Thread mold: M18
Construction type: Cylindrical, thread
Series: Cylindrical type
Safety Integrity Level (SIL): SIL 2
Type of voltage: DC

Technical Data

General specifications

Switching function	Normally closed (NC)
Output type	NAMUR
Rated operating distance	5 mm
Installation	flush
Assured operating distance	0 ... 4.05 mm
Reduction factor rAl	0.4
Reduction factor rCu	0.3
Reduction factor r304	0.85
Output type	2-wire

Nominal ratings

Nominal voltage	8.2 V (Ri approx. 1 kΩ)
Switching frequency	0 ... 500 Hz
Hysteresis	1 ... 10 typ. 5 %
Current consumption	Measuring plate not detected: min. 3 mA Measuring plate detected: ≤ 1 mA

Functional safety related parameters

Safety Integrity Level (SIL)	SIL 2
MTTFd	4566 a
Mission Time (TM)	20 a
Diagnostic Coverage (DC)	0 %

Compliance with standards and directives

Standard conformity

NAMUR: EN 60947-5-6:2000, IEC 60947-5-6:1999

Standards: EN 60947-5-2:2007, EN 60947-5-2/A1:2012, IEC 60947-5-2:2007, IEC 60947-5-2 AMD 1:2012

Approvals and certificates

IECEx approval	Equipment protection level Gb: IECEx PTB 11.0037X Equipment protection level Da: IECEx PTB 11.0037X Equipment protection level Mb: IECEx PTB 11.0037X
ATEX approval	Equipment protection level Gb: PTB 00 ATEX 2048 X Equipment protection level Da: PTB 00 ATEX 2048 X
UL approval	cULus Listed, General Purpose
CCC approval	Hazardous Location: 2020322315002255
NEPSI approval	NEPSI certificate: GYJ16.1393X
CML approval	on request
ANZEx	18.3018X
KCC approval	Hazardous Location: 19-AV4BO-0227
Marine approval	DNVGL TAA00001A5

Ambient conditions

Ambient temperature

-25 ... 100 °C (-13 ... 212 °F)

Mechanical specifications

Connection type	cable
Housing material	PBT/PPS
Sensing face	PBT
Degree of protection	IP66 / IP68
Cable	Cable diameter: 6 mm ± 0.2 mm Bending radius: > 10 x cable diameter Material: PVC Core cross section: 0.75 mm² Length: 2 m
Dimensions	Length: 39 mm Diameter: 18 mm

General information

Use in the hazardous area: see instruction manuals
