SIL 3 HART Multiplexer Master KFD2-HMM-16 16-Channel

SIL 3 HART Multiplexer Master KFD2-HMM-16 16-Channel
SIL 3 HART Multiplexer Master KFD2-HMM-16 16-Channel SIL 3 HART Multiplexer Master KFD2-HMM-16 16-Channel SIL 3 HART Multiplexer Master KFD2-HMM-16 16-Channel SIL 3 HART Multiplexer Master KFD2-HMM-16 16-Channel

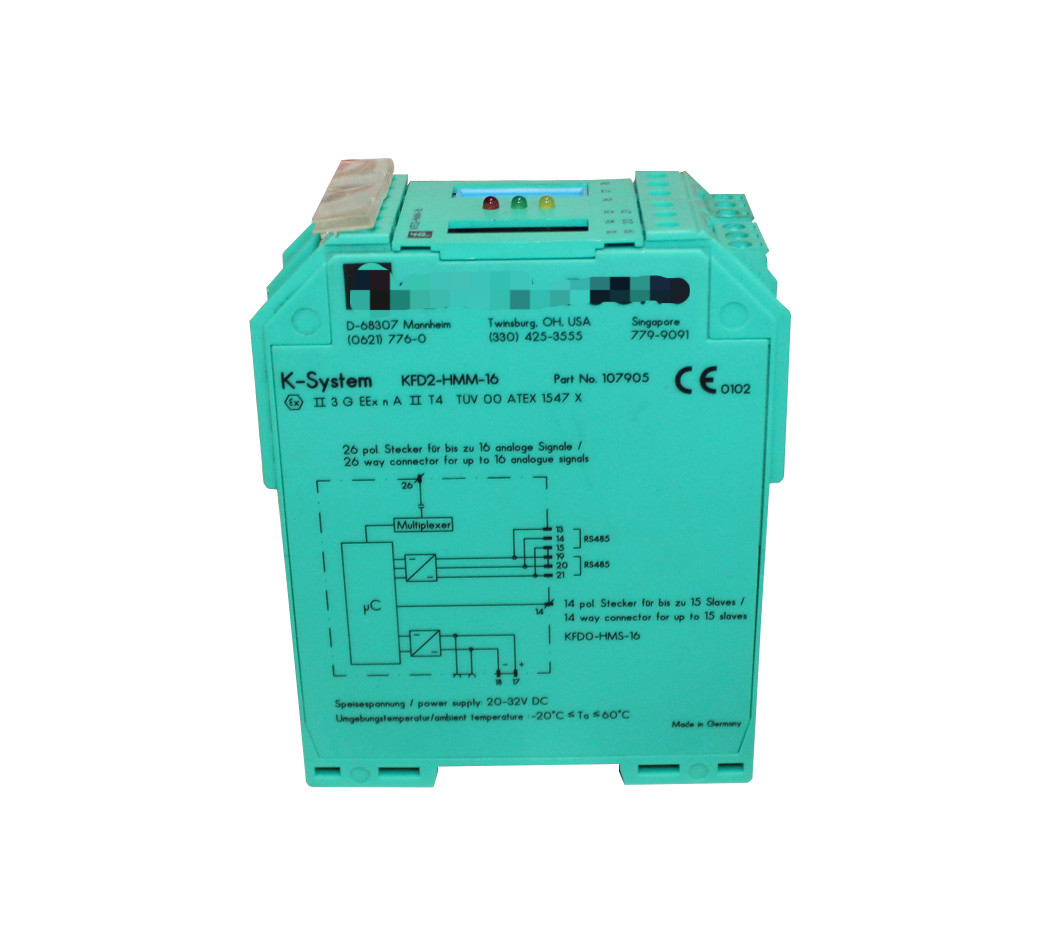

Large Image :  SIL 3 HART Multiplexer Master KFD2-HMM-16 16-Channel

Product Details:
Place of Origin: Germany
Brand Name: P+F
Certification: PF 07 CERT 1143 X
Model Number: KFD2-HMM-16
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

SIL 3 HART Multiplexer Master KFD2-HMM-16 16-Channel

Description
Labeling: Space For Labeling At The Front Safety Integrity Level (SIL): SIL 3
Degree Of Protection: IEC 60529:2001 Supply Connection: Terminals 17+, 18-
Ambient Temperature: -20 ... 60 °C (-4 ... 140 °F) Dimensions: 40 X 107 X 115 Mm (1.6 X 4.2 X 4.5 Inch) (W X H X D) , Housing Type C1
Highlight:

SIL 3 Multiplexer Master

,

Multiplexer Master

,

KFD2-HMM-16

SIL 3 HART Multiplexer Master KFD2-HMM-16
Key Attributes
Attribute Value
Labeling Space for labeling at the front
Safety Integrity Level (SIL) SIL 3
Degree of protection IEC 60529:2001
Supply Connection Terminals 17+, 18-
Ambient temperature -20 ... 60 °C (-4 ... 140 °F)
Dimensions 40 x 107 x 115 mm (1.6 x 4.2 x 4.5 inch) (W x H x D), housing type C1
Product Overview

The Multiplexer Master KFD2-HMM-16 is a 16-channel device with 24 V DC supply (Power Rail) and HART field device input (revision 5 to 7). It supports connection of up to 15 KFD0-HMS-16 slave units and achieves Safety Integrity Level (SIL) 3 according to IEC/EN 61508.

Technical Specifications
Functional Safety
  • Safety Integrity Level (SIL): 3
Power Supply
  • Connection: terminals 17+, 18-
  • Rated voltage: 20 ... 32 V DC typical at 100 mA
  • Power consumption: max. 3 W
HART Signal Channels
  • Conformity: HART field device input (revision 5 to 7)
  • Connection: 26-pin flat cable for analog connections
  • 14-pin flat cable for master-slave connection between KFD2-HMM-16 and KFD0-HMS-16
  • Leakage current: < 3 µA at -20 ... 85 °C (-4 ... 185 °F)
  • Terminating resistor: external 230 ... 500 Ω standard (up to 1000 Ω possible)
  • Output voltage: ≥ 400 mV ss (with the terminator resistance specified above)
  • Output resistance: 100 Ω or smaller, capacitive coupling
  • Input impedance: according to HART specification
  • Input voltage range: 0.08 ... 4 V ss ; typ. ± 5.2 V as local reference
Interface
  • Transfer rate: 9600, 19200, or 38400 Bit/s (selectable with DIL switch (2 and 3) by the user)
  • Type: RS-485, 2-wire multidrop
  • Address selection: One of 31 possible addresses selectable per DIL switch (4 ... 8)
Indicators & Settings
  • Control elements: DIP switch
  • Configuration: via DIP switches
  • Labeling: space for labeling at the front
Directive Conformity
  • Electromagnetic compatibility: Directive 2014/30/EU, EN 61326-1:2013 (industrial locations)
Environmental Specifications
  • Degree of protection: IEC 60529:2001
  • Ambient temperature: -20 ... 60 °C (-4 ... 140 °F)
Mechanical Specifications
  • Degree of protection: IP20
  • Connection: screw terminals
  • Mass: approx. 250 g
  • Dimensions: 40 x 107 x 115 mm (1.6 x 4.2 x 4.5 inch) (W x H x D), housing type C1
  • Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001
Hazardous Area Certification
  • Certificate: PF 07 CERT 1143 X
  • Marking: II 3G Ex nA IIC T4 Gc
  • Directive conformity: Directive 2014/34/EU, EN 60079-0:2012+A11:2013, EN 60079-15:2010
Related Models
KCD2-STC-EX1.20
K-HM26-2M-261533
KFD2-SR2-Ex1.W.LB
NBB15-U1-E2
KFD2-SR2-2.W.SM
NBB1,5-5GM25-E2
KFD2-SR2-Ex2.W.SM
NBB1,5-5GM25-E2-V3
KFD2-SR2-Ex2.2S
NBB1,5-F79-E0
KFD2-SR2-2.2S
NBB1,5-F79-E2
KFA6-DWB-EX1.D
NBB15-U1-Z2
KFA6-SR2-Ex2.W
NBB5-18GM50-E2-V1

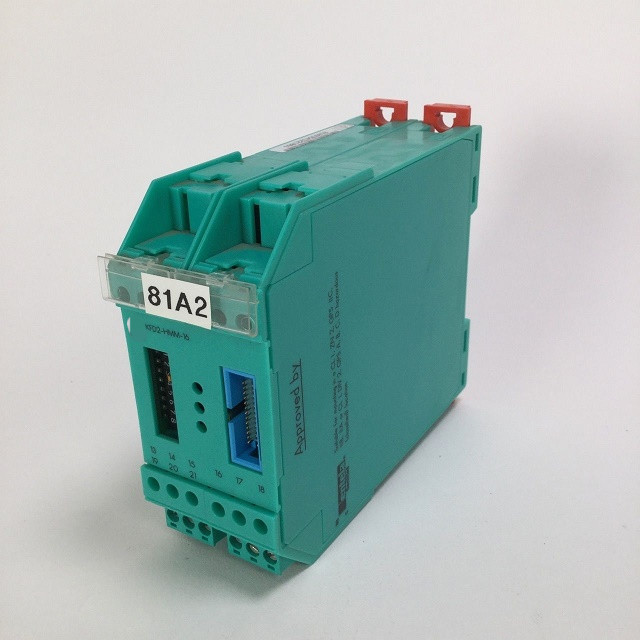

SIL 3 HART Multiplexer Master KFD2-HMM-16 16-Channel 0

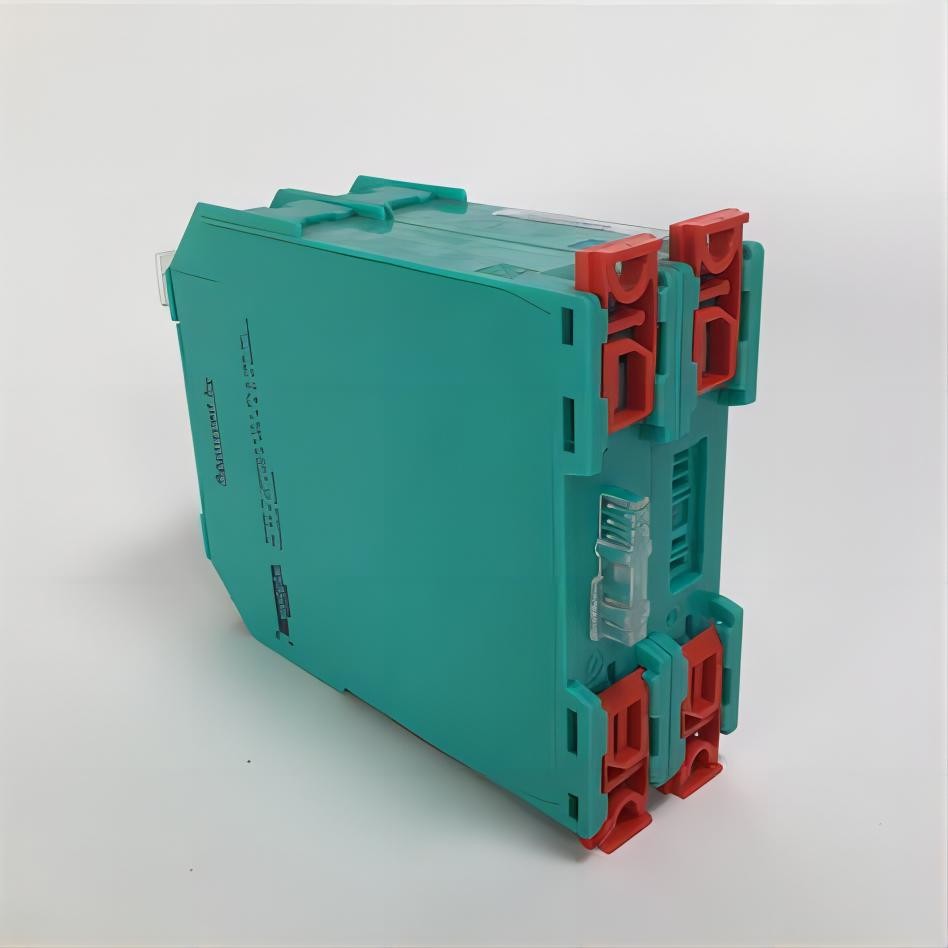

SIL 3 HART Multiplexer Master KFD2-HMM-16 16-Channel 1

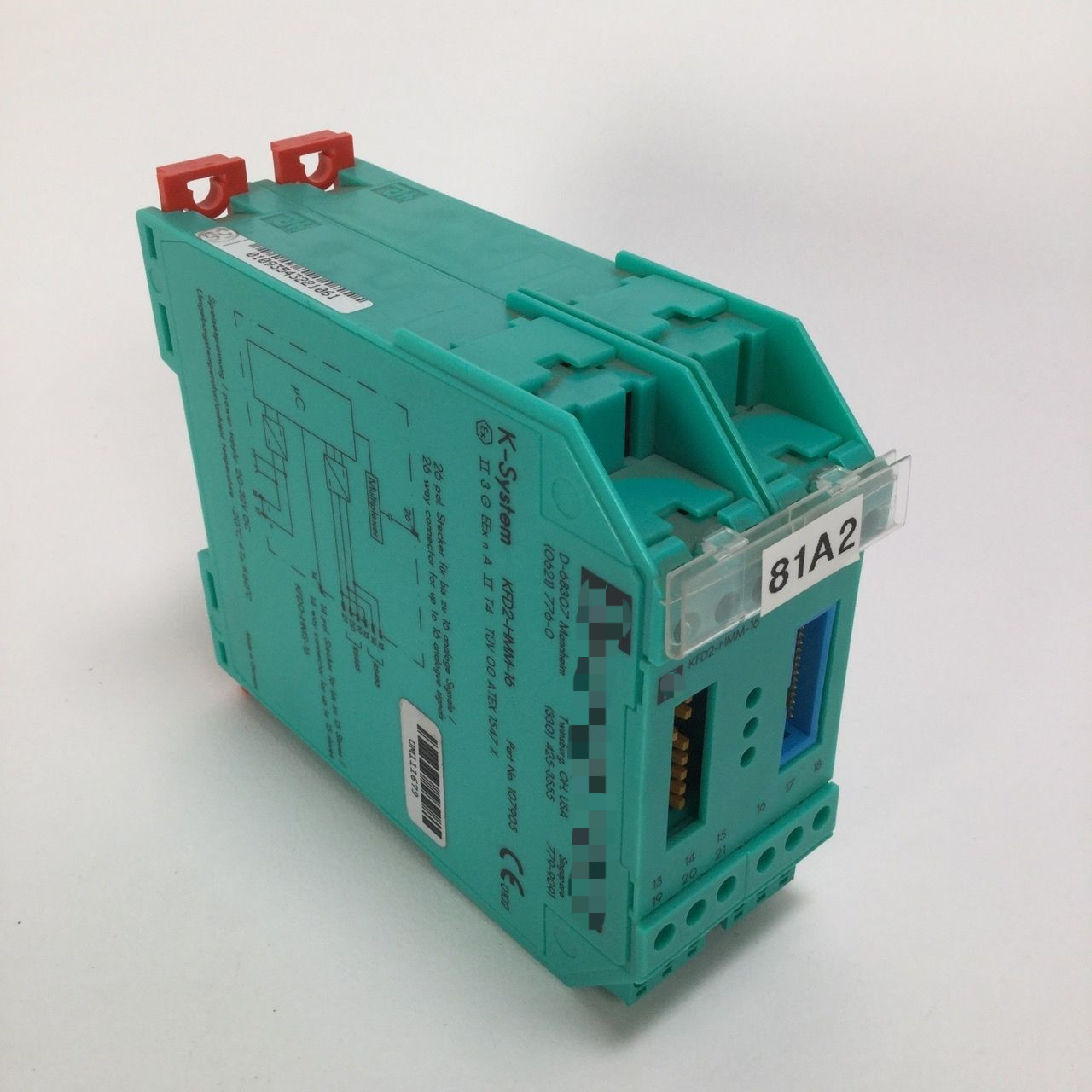

SIL 3 HART Multiplexer Master KFD2-HMM-16 16-Channel 2
