P+F Rotation Speed Monitor KFU8-DW-1.D for the indication and monitoring of periodic signals
Product Specifications
| Attribute |
Value |
| Rated voltage |
200 ... 230 V AC ; 100 … 130 V AC; 50/60 Hz 20 VDC ... 30 VDC |
| Fusing |
external fusing 4 A |
| Power consumption |
AC: < 5 VA DC: < 5 W |
| Open loop voltage |
8.2 V DC |
| Short-circuit current |
6.5 mA |
| Ambient temperature |
-25 ... 40 °C (-13 ... 104 °F) |
Product Description

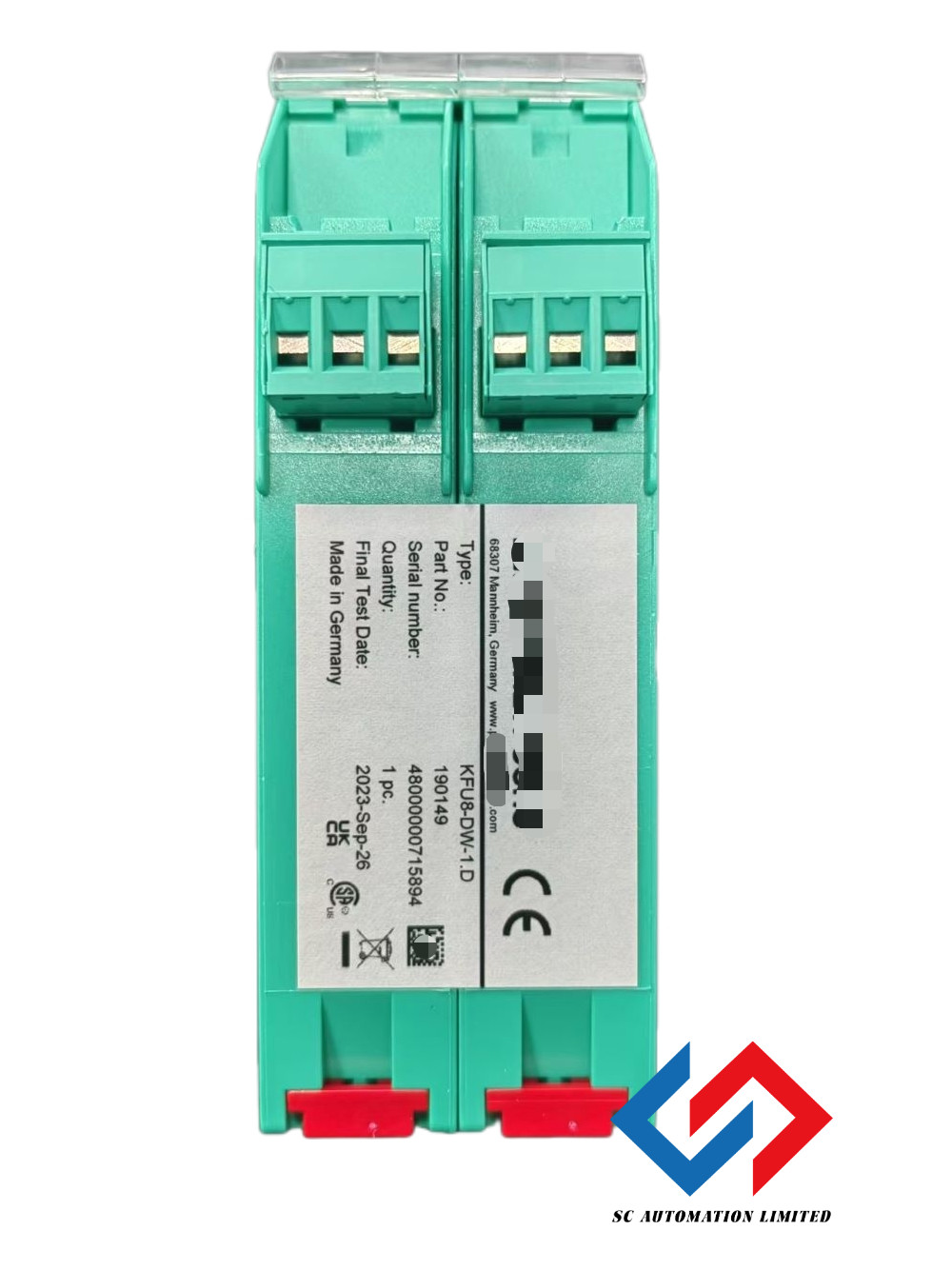

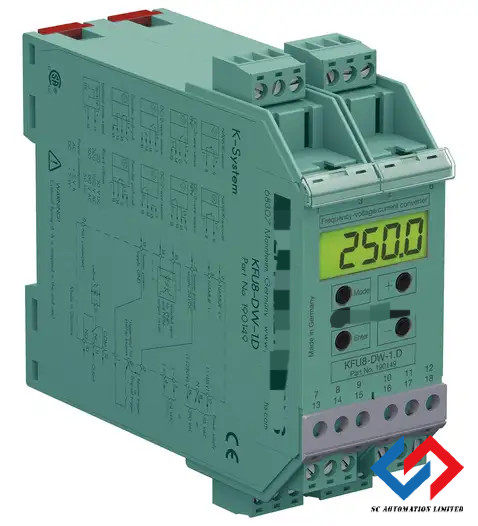

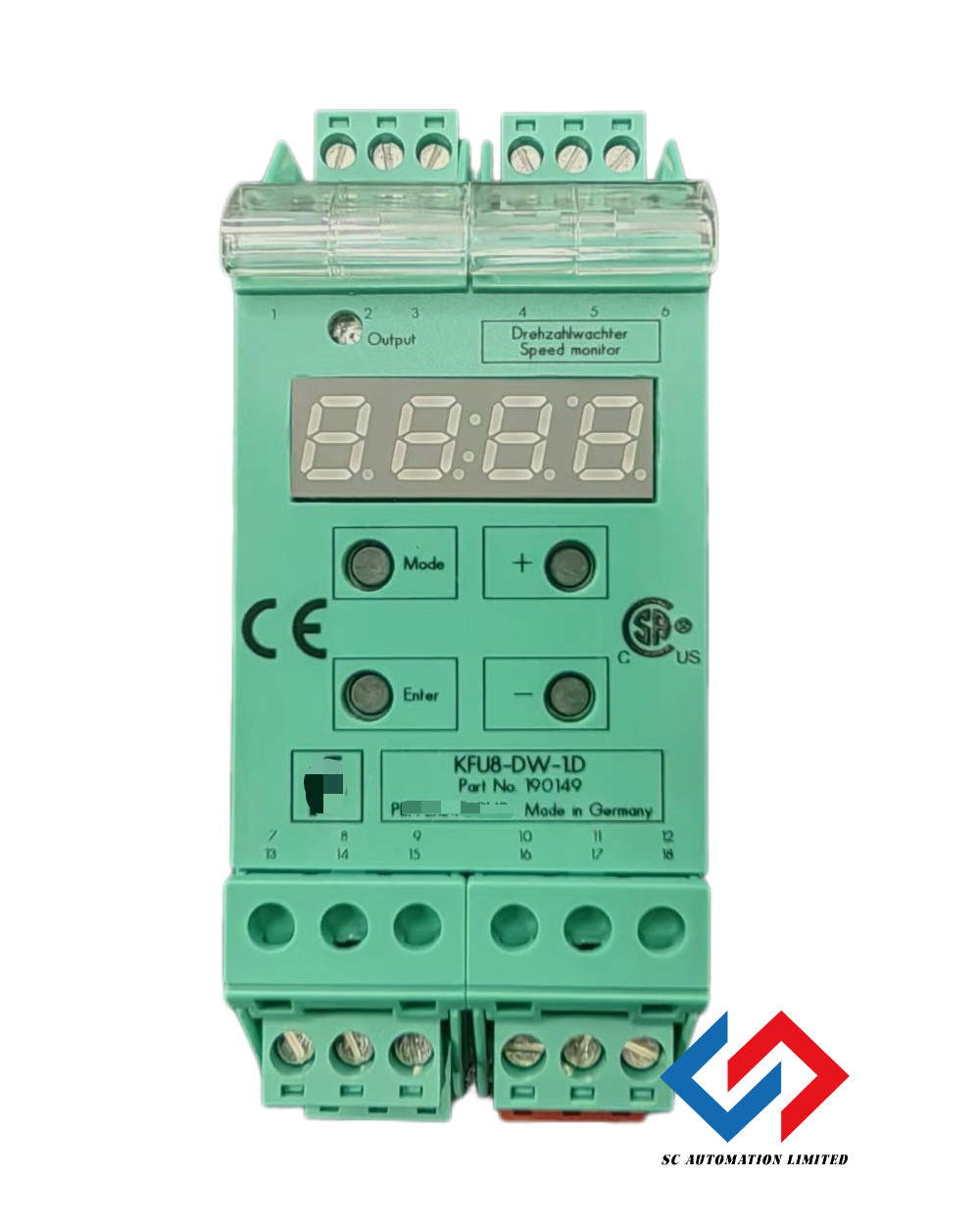

P+F Rotation Speed Monitor KFU8-DW-1.D
The KFU8-DW-1.D Speed Monitor is a device for the indication and monitoring of periodic signals, which occur in almost all areas of automation and process technology, including frequencies in general and rotational speeds in special cases. The input signals are evaluated using the cycle method, measuring the period of oscillation and converting it into frequency or rotational speed via a fast controller.
Technical Data
Functional safety related parameters
Supply
- Rated voltage: 200 ... 230 V AC ; 100 … 130 V AC; 50/60 Hz 20 VDC ... 30 VDC
- Fusing: external fusing 4 A
- Power consumption: AC: < 5 VA, DC: < 5 W
Input 1
- Connection: terminals 8-, 9+
- Connectable sensor types: NAMUR sensors according to DIN EN 60947-5-6
- Open loop voltage: 8.2 V DC
- Short-circuit current: 6.5 mA
- Switching point: 1.2 ... 2.1 mA Switching hysteresis approx. 0.2 mA
- Input frequency: 0.002 ... 10000 Hz, pulse length/duration: ≥ 20µs
- Impedance: 1.2 kΩ
Input 2
- Switching point: high: 16 ... 30 V DC; max.10 mA due to integrated constant current sink; Ri ≅ 3 kΩ, low: 0 ... 6 V DC
- Input frequency: 0.002 ... 40000 Hz, pulse length/duration: ≥ 12µs
- Connection: terminals 7+, 13- sensor supply, terminals 14, 15 NPN/PNP input (galvanically isolated)
- Connectable sensor types: Two, three, or four-wire proximity switch, incremental rotary encoder, or externally generated pulses 16 ... 30 V
- Sensor supply: 19 ... 28 V DC non-stabilised; ≤ 30 mA short-circuit protected
Input 3
- Start-up override: Triggering by external signal 16 ... 30 V or Place jumper between terminals 2/3 or by switching on supply voltage (terminal 2 and terminal 3 permanently bridged)
- Hold-up time: 0.1 ... 999.9 s (External trigger signal)
Output
- Relay: 1 changeover contact NO, NC, COM
- Sensor supply: 24 V DC ± 10 %, 30 mA, short-circuit protected
- Contact loading: 250 V AC/2 A/ cos φ ≥ 0.7, 40 V DC/2 A
- Delay: ≤ 20 ms (incl. calculation time)
- Mechanical life: ≥ 30.000.000 switching cycles
Transfer characteristics
- Changing interval: 5 ms (Internal processing time)
- Time delay before availability: ≤ 400 ms
- Measuring error: 0 ... 40000 Hz: ≤ ±0,10%, Display: ±1 digit
- Timer function: ON-delay, OFF-delay, one shot, pulse extension
- Time: 0 ... 999.9 s; mode of operation reversible
Standard conformity
- Electromagnetic compatibility: acc. to EN 50081-2 / EN 50082-2
Ambient conditions
- Ambient temperature: -25 ... 40 °C (-13 ... 104 °F)
- Storage temperature: -40 ... 85 °C (-40 ... 185 °F)
- Relative humidity: max. 80 %, not condensing
- Altitude: 0 ... 2000 m
- Operating conditions: The device has only to be used in an indoor area.
Mechanical specifications
- Connection assembly: Caution: Please be aware that the device may only be connected to a switchable power supply. The switch or circuit breaker must be easy to reach and identified as the separator for the device.
- Degree of protection: IP20
- Connection: coded, removable terminals, max. core cross section 0.34 ... 2.5 mm²
- Construction type: modular terminal housing in Makrolon, System KF For use in the switch cabinet/switch cabinet module
- Mounting: snap-on to 35 mm standard rail or screw fixing
