3/4 MNPT Emerson Rosemount Toroidal Conductivity Sensor 228-04-21-54-61

3/4 MNPT Emerson Rosemount Toroidal Conductivity Sensor 228-04-21-54-61
3/4 MNPT Emerson Rosemount Toroidal Conductivity Sensor 228-04-21-54-61 3/4 MNPT Emerson Rosemount Toroidal Conductivity Sensor 228-04-21-54-61 3/4 MNPT Emerson Rosemount Toroidal Conductivity Sensor 228-04-21-54-61

Large Image :  3/4 MNPT Emerson Rosemount Toroidal Conductivity Sensor 228-04-21-54-61

Product Details:
Place of Origin: MEXICO
Brand Name: ROSEMOUNT
Certification: CE
Model Number: 228-04-21-54-61
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

3/4 MNPT Emerson Rosemount Toroidal Conductivity Sensor 228-04-21-54-61

Description
Sensor Type: Toroidal Conductivity Sensor Materials Of Construction: Glass Filled Tefzel
Process Connection: 3/4 In. MNPT Cable Type: Unshielded Cable
Cable Length: 20 Ft (6.1 M) Wetted Materials: Body Materials Either Glass-filled PEEK, Glass-filled Tefzel, Or Unfilled Tefzel. Option-20 Has EPDM Gasket
Highlight:

3/4 MNPT Rosemount Toroidal Conductivity Sensor

,

20ft Rosemount Toroidal Conductivity Sensor

,

6.1m emerson toroidal conductivity sensor

3/4 MNPT Emerson Rosemount Toroidal Conductivity Sensor 228-04-21-54-61
Product Attributes
Attribute Value
Sensor type Toroidal Conductivity Sensor
Materials of construction Glass filled Tefzel
Process connection 3/4 in. MNPT
Cable type Unshielded cable
Cable length 20 ft (6.1 m)
Wetted materials Body materials either glass-filled PEEK, glass-filled Tefzel, or unfilled Tefzel. Option-20 has EPDM gasket
Product Description

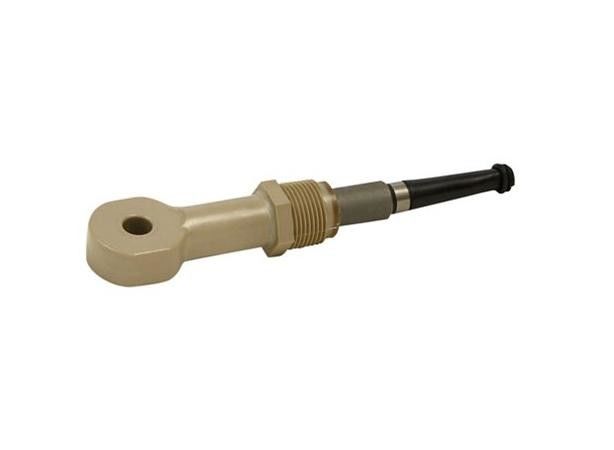

Rosemount Toroidal Conductivity Sensor 228-04-21-54-61

A Versatile Conductivity Sensor for Solving Diverse Application Challenges

Rosemount 228 toroidal conductivity sensors reliably measure conductivity in highly conductive electrolyte solutions up to 2 S/cm (2,000,000 µS/cm). These sensors work in dirty and corrosive applications where metal electrode sensors would otherwise fail. A robust sensor design makes the Rosemount 228 ideal for measuring concentrations of acid, base, and salt solutions.

High Performance and Reliability
  • Meet challenging application requirements with a selection of chemical resistant body options including PEEK and Tefzel
  • High vibration tolerance with reinforced internal metal frame design
  • High temperature option for process temperatures up to 392 °F (200 °C) and suitable for use under high pressure up to 295 psig (2135 kPa [abs])
Accessories
Part number Description
23550-00 Remote junction box
23294-00 Unshielded interconnecting cable
23294-05 Shielded interconnecting cable
23311-00 Mechanical valve insertion assembly
23311-0 Manual valve insertion assembly
2001990 Mounting adapter,2 in.MNPT,CPVC
9550179 O-ring,EP rubber,for 2001990
23242-02 Mounting adapter,1-1/2 in.MNPT insertion,1 in.FNPT conduit connection,PEEK
33081-00-995Q7091A Adapter insert,Tefzel,for 23242-02
33081-00 Adapter insert,PEEK,for 23242-02
23242-03 Mounting adapter,1-1/2 in.MNPT insertion,3/4 in.FNPT conduit connection,PEEK
33080-01-995Q7182 Adapter insert,Tefzel,for 23242-03
23277-01 Mounting adapter,Foxboro,PEEK,5/811 UNC
23277-01-995Q7182 Mounting adapter,Foxboro,Tefzel,5/811 UNC
33075-00 Viton gasket for option 20
33075-03 Kalrez gasket for option 20
9200276 Extension cable,unprepped
9340065 1-1/2 in.FNPT full port ball valve for use with retraction assemblies
