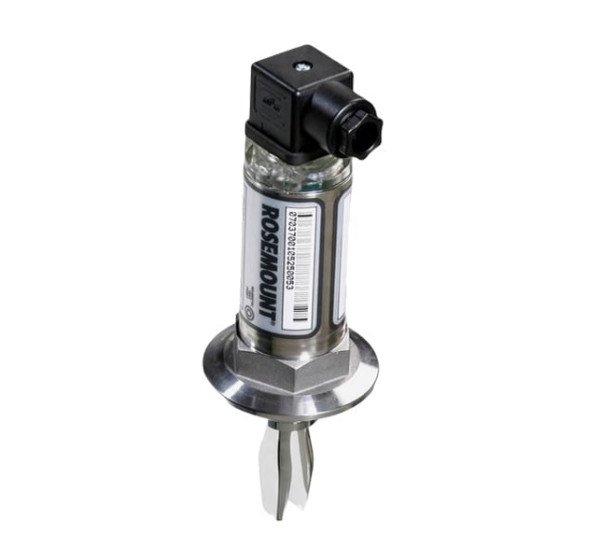

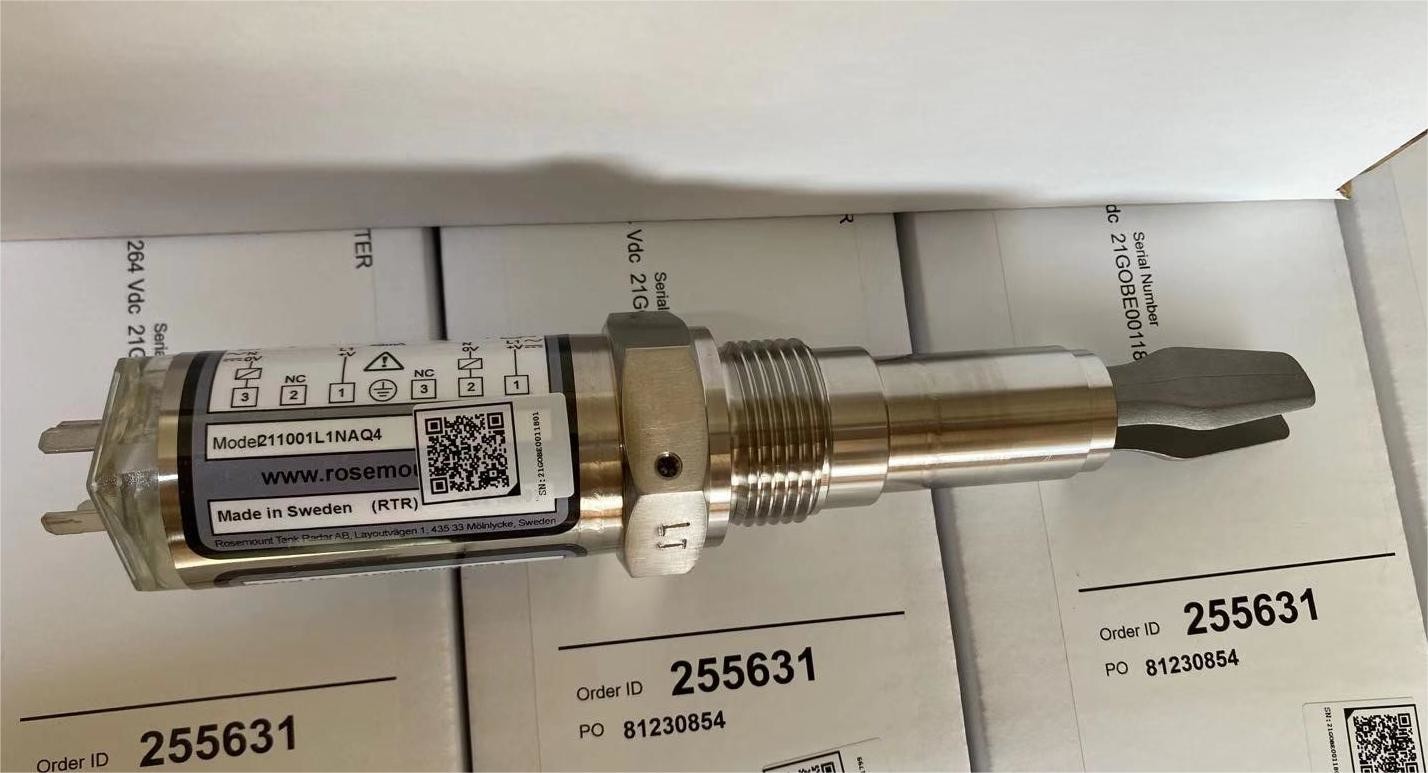

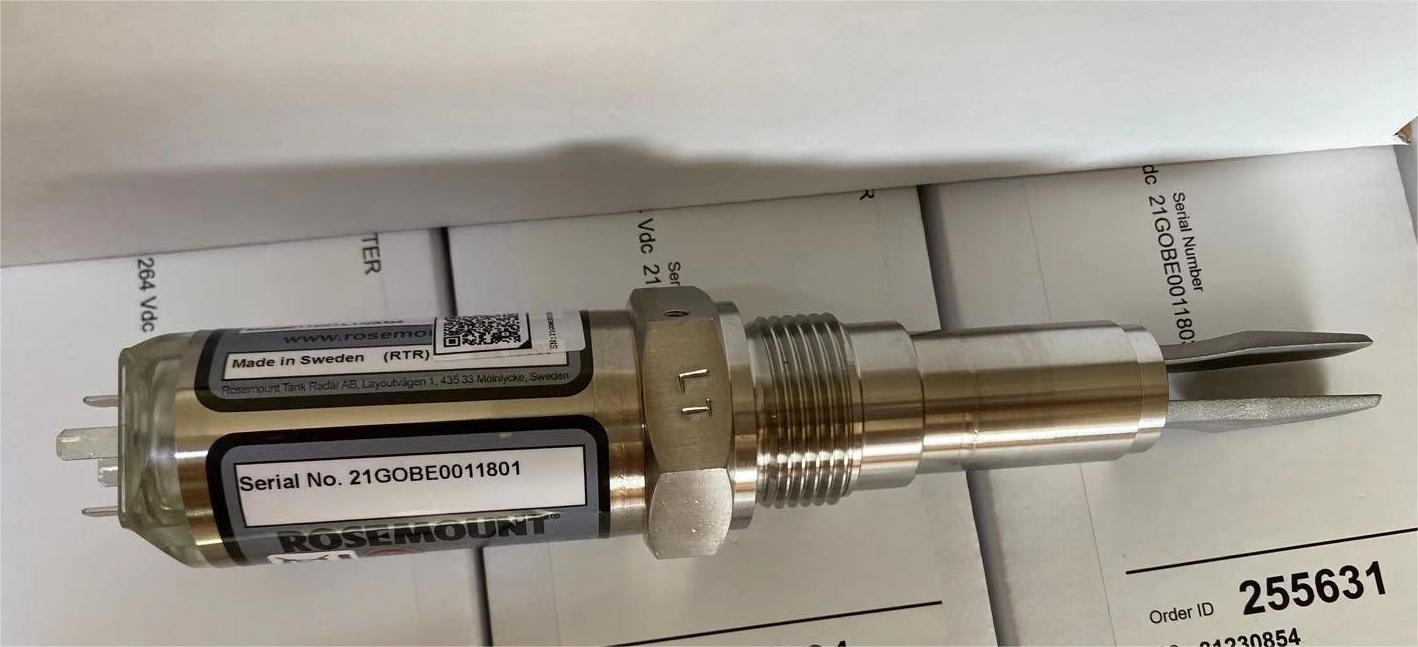

Rosemount 2110 Vibrating Fork Liquid Level Switch 1-in BSPP

Rosemount 2110 Vibrating Fork Liquid Level Switch 1-in BSPP
Rosemount 2110 Vibrating Fork Liquid Level Switch 1-in BSPP Rosemount 2110 Vibrating Fork Liquid Level Switch 1-in BSPP Rosemount 2110 Vibrating Fork Liquid Level Switch 1-in BSPP

Large Image :  Rosemount 2110 Vibrating Fork Liquid Level Switch 1-in BSPP

Product Details:
Place of Origin: Sweden
Brand Name: ROSEMOUNT
Certification: CE
Model Number: 211001L1NAQ4
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T,
Supply Ability: 100pcs per month
Contact Now Chat Now

Rosemount 2110 Vibrating Fork Liquid Level Switch 1-in BSPP

Description
Mode: Compact Vibrating Fork Liquid Level Switch Electronic Type: Direct Load Switching With Plug Connection (2 Wire) 21 To 264 Vac 50/60Hz, 21 To 264 Vdc
Process Connection Size / Type: 1-in. BSPP (G) Semi-extended 4.6 In. (116 Mm) Surface Finish: Standard Surface Finish
Product Certificates: No Hazardous Locations Certifications (safe Area Use Only) Calibration Data Certificate: Certificate Of Compliance To EHEDG
Highlight:

Emerson Rosemount Transmitter 2110

,

BSPP Emerson Rosemount Transmitter

,

Rosemount 2110

Rosemount 2110 Emerson Rosemount Transmitter Level Switch 2110 211001L1NAQ4
Product Specifications
Attribute Value
Mode Compact Vibrating Fork Liquid Level Switch
Electronic type Direct load switching with plug connection (2 wire) 21 to 264 Vac 50/60Hz, 21 to 264 Vdc
Process connection size / type 1-in. BSPP (G) semi-extended 4.6 in. (116 mm)
Surface finish Standard surface finish
Product certificates No hazardous locations certifications (safe area use only)
Calibration data certificate Certificate of compliance to EHEDG
Product Description
Rosemount 2110 Level Switch 2110 211001L1NAQ4
Measurement Principle
The Rosemount 2110 operates on the tuning fork principle. A piezo-electric crystal oscillates the forks at their natural frequency, with continuous monitoring of frequency changes. The sensor's vibration frequency varies based on the immersed medium's density - lower frequencies occur with denser liquids. For low level alarms, the output state switches when liquid drains past the fork. For high level alarms, contact with rising liquid triggers the output state change.
Spare Parts and Accessories
Part number Description
02100-1000-0001 Seal for 1-in.BSPP(G1A).Material:Non-asbestos BS7531 grade X carbon fiber with rubber binder
02100-1010-0001 Adaptor boss 1-in.BSPPto 1'/2-in.(38mm)Tri Clamp.Material:316 SST fitting.FPM/FKM O-ring
02100-1020-0001(1) 2-in.(51 mm)Tri Clamp kit(vessel fitting,clamp ring,and seal).Material:316 SST,NBR Nitrile
02100-1030-0001 Telescopic test magnet
Rosemount 2110 Vibrating Fork Liquid Level Switch 1-in BSPP 0
