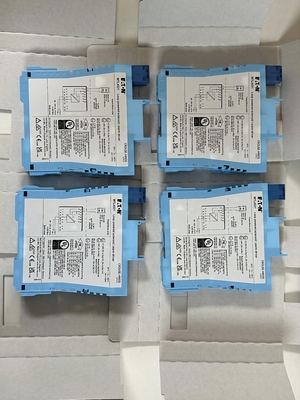

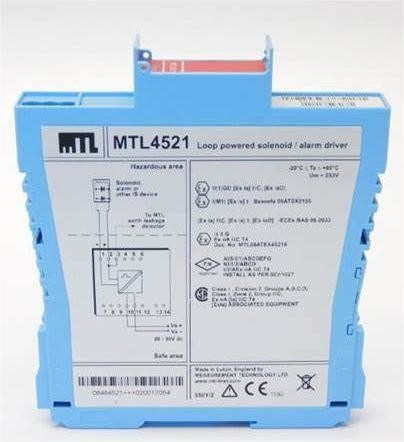

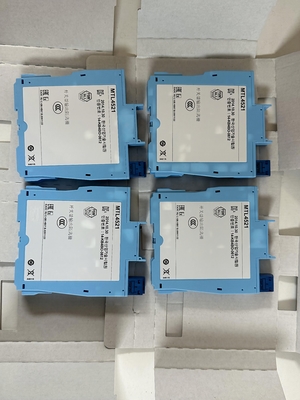

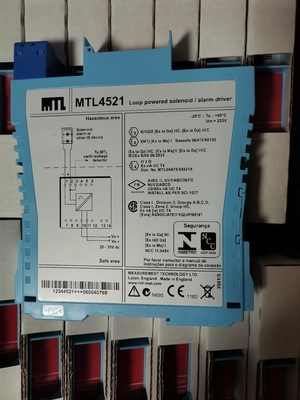

MTL4521/L MTL5521 Solenoid Alarm Driver 24V Output

TYPE: Analogue output

application: Transmitters, 2-wire, 4/20mA

Maximum safe-area voltage: 250V AC/DC

Weight: 140g approx

Maximum surge current: 6.5kA (8/20µs)

Maximum leakage current: <0.3mA at working voltage

Rated: 5A at 30°C

5A at 30°C: 1A/10°C above 35°C

Band: MTL

model: MTL7760AC

origin: India

Weight: 140g approx

Max discharge surge current (Imax) (8/20µs): 20kA (8/20µs) 6.5kA (SD150X and SD275X only)

Lightning impulse current (Iimp) (10/350µs): 2.8kA 1.0kA (SD150X and SD275X only)

Ambient temperature: –40°C to +80°C / -40°F to 176°F storage –40°C to +80°C / -40°F to 176°F working

Humidity: 5 to 95% RH (non-condensing)

Number of HART channels: 16 (ch17 to ch256 in 16 channel groups)

Channel device type: HART rev 5-7

Channel interface: 2 connections to each channel

MTL systems interface: Up to 15 off MTL4852 modules per MTL4851 Total length of interface bus, 4m max.
