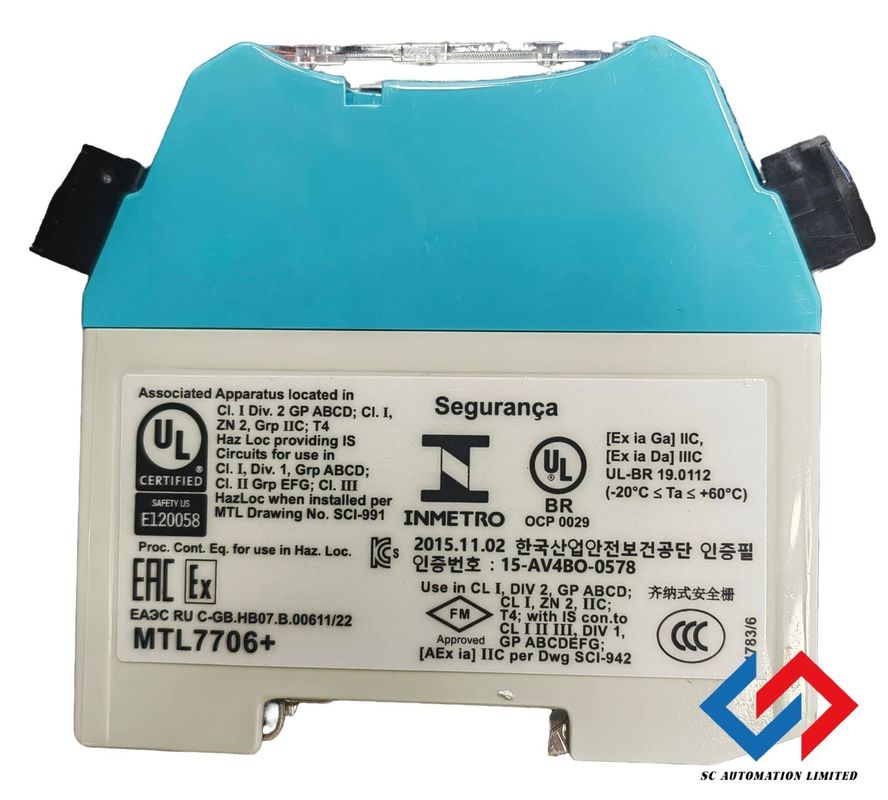

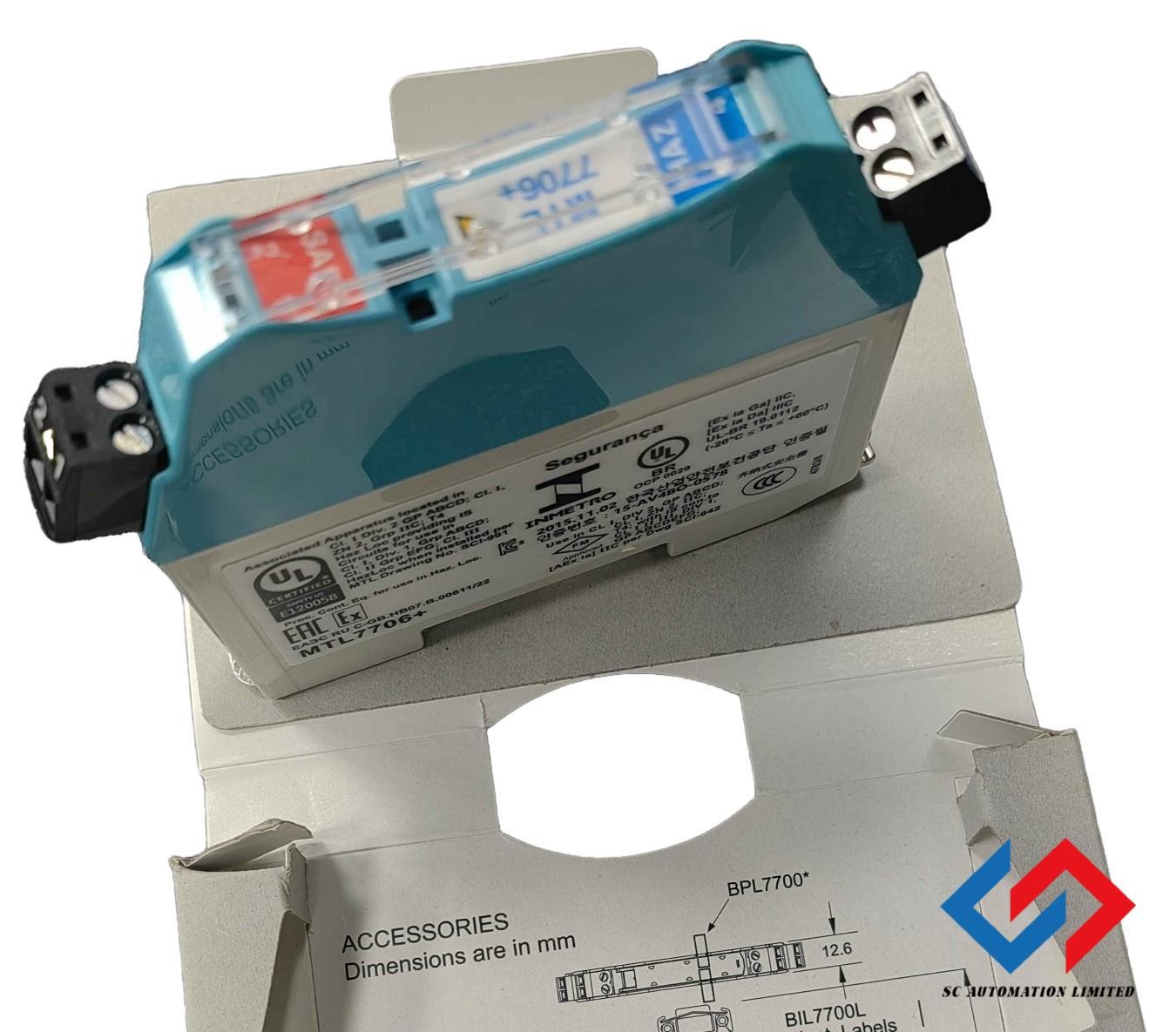

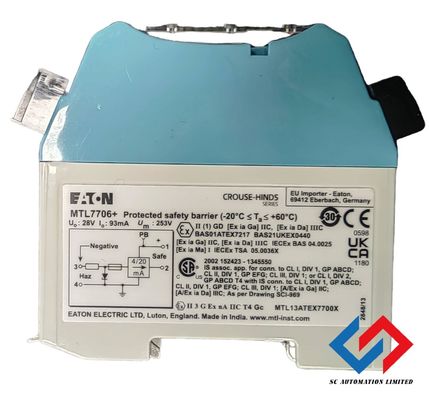

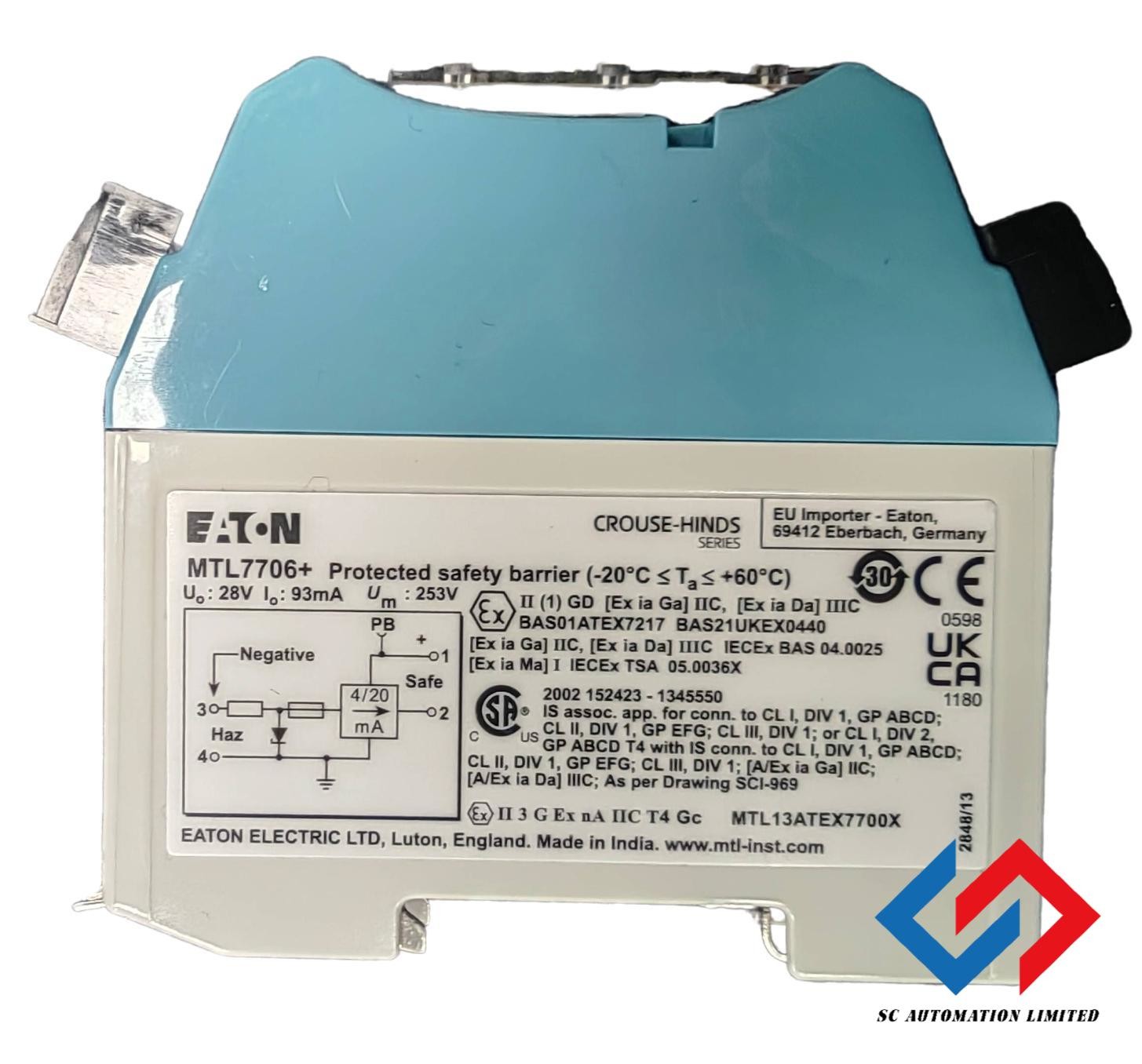

Eaton MTL - MTL7706+ SAFETY BARRIER, DIN RAIL MOUNT for Industrial
Product Specifications
| Attribute |
Value |
| Safety description |
28V 300Ω 93mA |
| Supply voltage |
0 to 35V dc w.r.t earth |
| Output current |
4 to 20 mA |
| Safe-area load resistance |
0 to 500Ω |
| Weight |
140g approx |
| Mounting and earthing |
By 35mm Top Hat DIN rail |
Product Description
The MTL7700 range follows closely in the footsteps of the MTL700, but as a DIN rail mounting barrier, providing quick and easy installation without the need for special hardware.
MTL7700 barriers clamp simply and securely onto standard T-section DIN rail, simultaneously making a reliable IS earth connection.
For applications where field power is required for switch inputs or 2-wire transmitters, the MTL7700 range provides a bussed power feed facility. When used in conjunction with the MTL7798 power feed module the user has a fully protected, electronically fused supply to many barriers with no additional wiring required.
How They Work
All MTL7700 range barriers are based on the same simple principle. Each channel contains two stages of pulse-tested Zener or forward-connected diodes and an 'infallible' terminating resistor. In the event of an electrical fault in the safe area, the diodes limit the voltage that can reach the hazardous area and the resistor limits the current. A fuse protects the diodes, and the two stages of voltage limitation ensure continued safety if either stage should fail. No active output current limiting circuits are employed. All models are certified 'ia' for all zones and 'IIC' for all explosive atmospheres (except MTL7707P+ and MTL7729P+, 'ia' 'IIB').
Dimensions
MTL7700 Range Key Barriers Summary
| Type |
Application |
Key Barrier |
| Analogue input (low-level) |
Resistance temperature detectors, Thermocouples, ac sensors |
756ac, 7760ac |
| Analogue input (high-level) |
Transmitters, 2-wire, 4/20mA |
7706+, 7787+ |
| Analogue output |
Controller outputs, one line earthed, Controller outputs, neither line earthed |
7728+, 7787+ |
| Digital (on/off) input |
Switches |
7787+, 7741/3 |
| Digital (on/off) output |
Solenoids, alarms, LEDs |
7728 |
