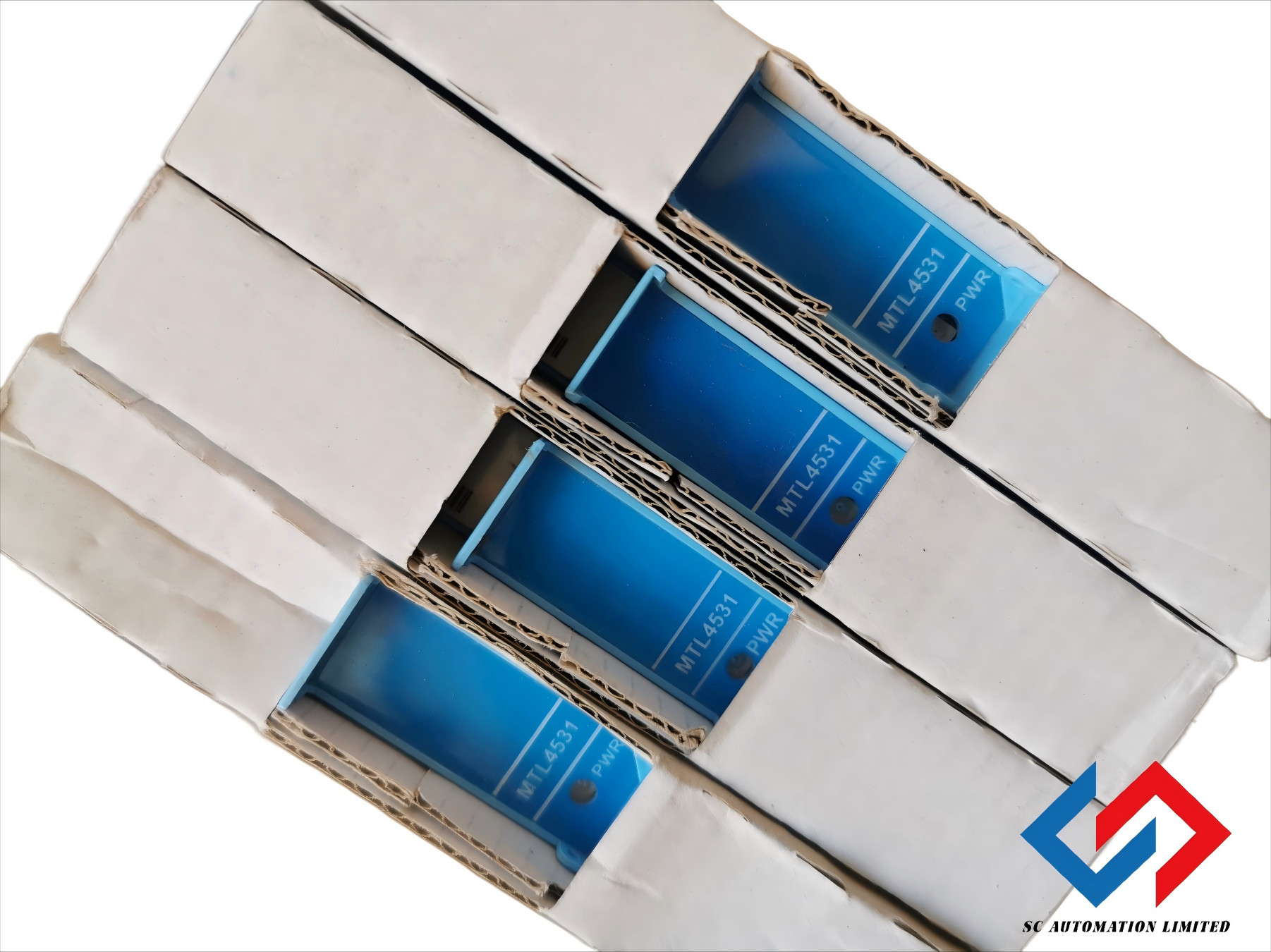

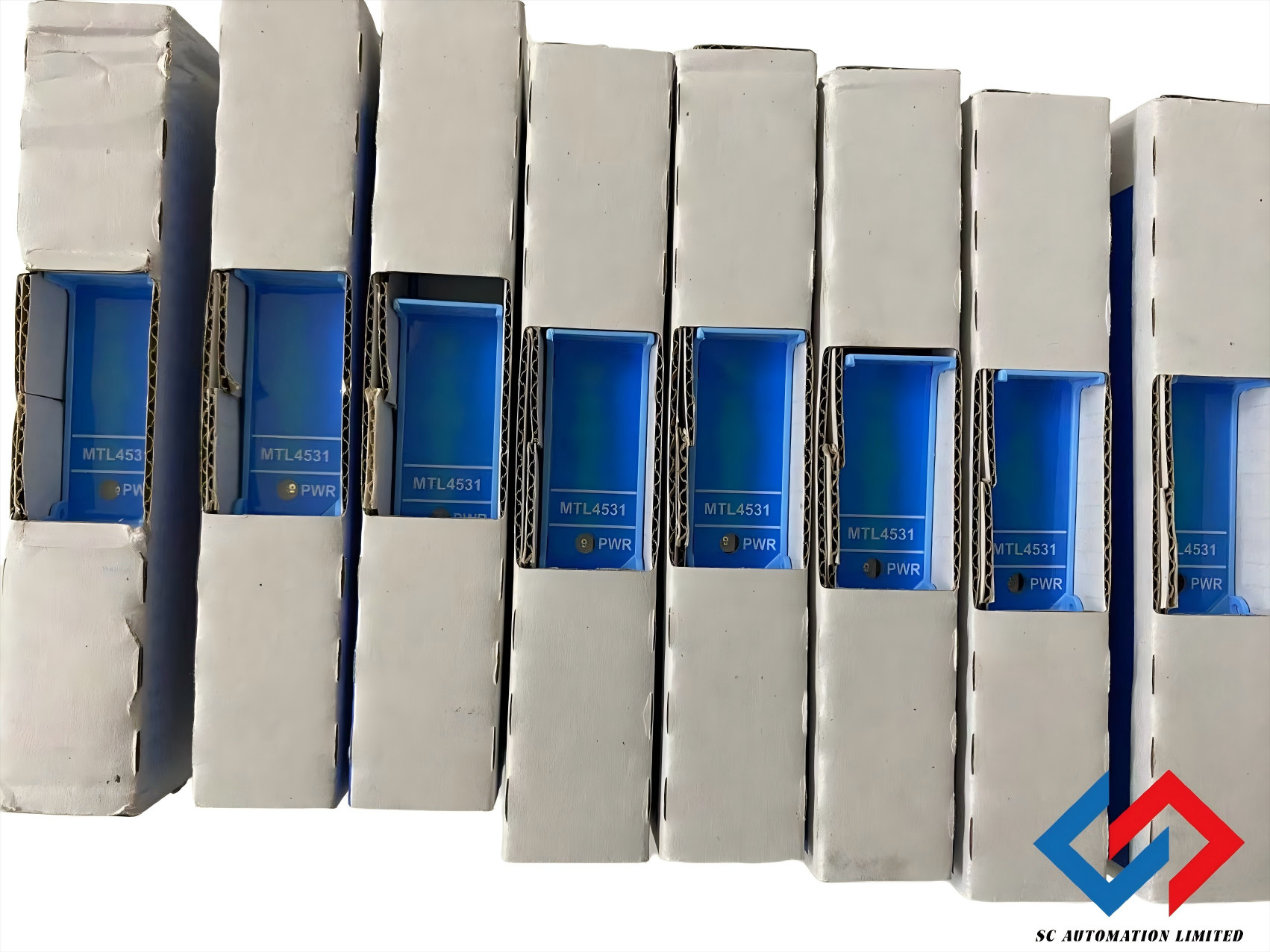

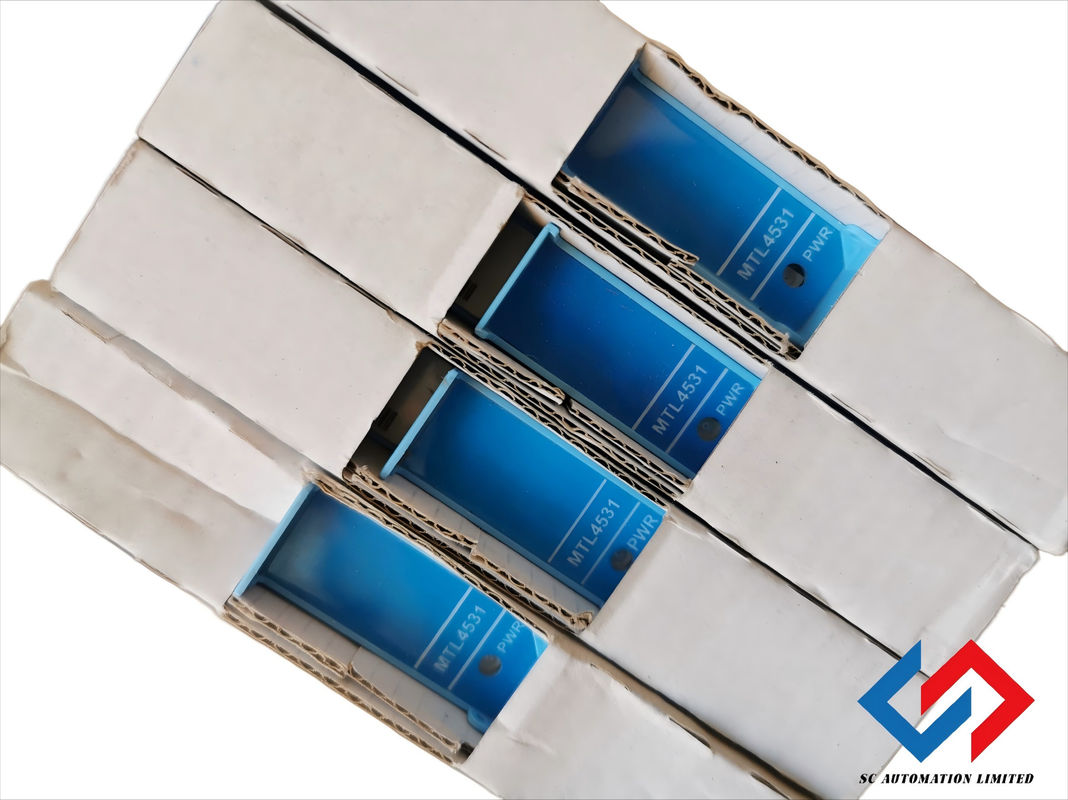

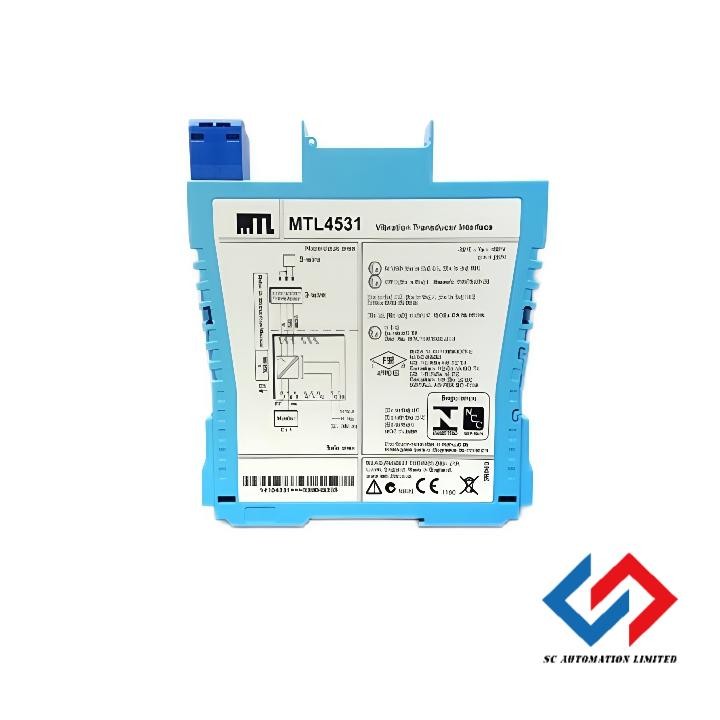

MTL4531 Vibration Transducer Interface for Hazardous Areas

Large Image : MTL4531 Vibration Transducer Interface for Hazardous Areas

Product Details:

Place of Origin:	England
Brand Name:	MTL
Certification:	CE
Model Number:	MTL4531

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	Original packaging
Delivery Time:	negotiable
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

MTL4531 Vibration Transducer Interface for Hazardous Areas

Description

Number Of Channels:	One	Sensor Type:	2- Or 3-wire Vibration Transducer
Signal Range:	Minimum –20V, Maximum –0.5V	Supply Voltage:	20 To 35V Dc
LED Indicator:	Green: Power Indication	Maximum Power Dissipation Within Unit:	1.33W
Highlight:	MTL Vibration Transducer Interface , MTL4531 Vibration Transducer Interface

MTL4531 MTL Vibration Transducer Interface

Signal Range -20V to 35V DC | Durable and Long-Lasting

Key Features

Repeats signals from vibration sensors in hazardous areas
Provides output for monitoring systems in safe areas
Compatible with 3-wire eddy-current probes and accelerometers or 2-wire current sensors
Sensor selection via side-mounted switch

Technical Specifications

Attribute	Value
Number of channels	One
Sensor type	2- or 3-wire vibration transducer
Signal range	Minimum –20V, maximum –0.5V
Supply voltage	20 to 35V dc
LED indicator	Green: power indication
Maximum power dissipation	1.33W

Detailed Specifications

Location of signal source: Zone 0, IIC, T4-6 hazardous area if suitably certified
Hazardous-area input impedance: 10kΩ (terminals 2 & 3)
Transducer supply current (2-wire): 3.3mA (nominal)
DC transfer accuracy at 20°C: <±50mV
AC transfer accuracy:
- 0Hz to 1kHz: ±1%
- 1kHz to 10kHz: -5% to +1%
- 10kHz to 20kHz: -10% to +1%

About SC Automation Limited

Established in 2010 with over 10+ years of industry experience in automation instrumentation and industrial solutions.
