Waterproof VAI61.25-10 DN25 Siemens Ball Valve Kvs 10 For HVAC

Large Image : Waterproof VAI61.25-10 DN25 Siemens Ball Valve Kvs 10 For HVAC

Product Details:

Place of Origin:	Italy
Brand Name:	SIEMENS
Certification:	CE
Model Number:	VAI61.25-10

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Waterproof VAI61.25-10 DN25 Siemens Ball Valve Kvs 10 For HVAC

Description

Leakage Rate:	Waterproof“ As Per EN 60534-4 L/1, Better Than Class 5	Medium:	Water; Water With Anti-freeze
Medium Temperature:	-10...120 °C	Valve Characteristic:	Equal-percentage
Rangeability:	> 500	Permissible Operating Pressure:	1600 KPa
Highlight:	waterproof siemens ball valve , waterproof siemens control valve , vai61.25-10 siemens ball valve

Internal Thread Siemens Building Automation 2 Full Port Ball Valve Kvs 10 VAI61.25-10

Product Specifications

Attribute	Value
Leakage rate	Waterproof as per EN 60534-4 L/1, better than class 5
Medium	Water; Water with anti-freeze
Medium temperature	-10...120 °C
Valve characteristic	Equal-percentage
Rangeability	> 500
Permissible operating pressure	1600 kPa

Product Description

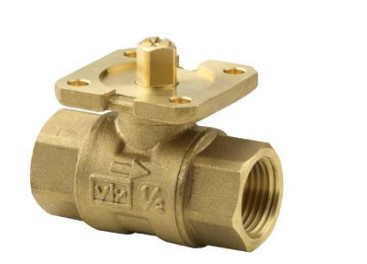

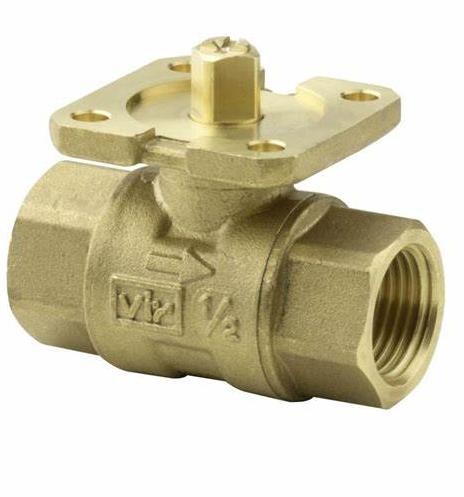

Siemens 2-port ball valve, internal thread, PN40, DN25, kvs 10 VAI61.25-10

For use in heating, ventilation, and air conditioning plants as control or shutoff valve in closed circuits.

Ball valve body made of brass, UNS C35330 (DZR)
DN 15...50
kvs 0,25...63 m3 /h
Connections with internal threading Rp per ISO 7-1
Rotational angle 90°
Compatible with electromotorized rotary actuators GQD..9A, GMA..9E.. with spring return and GSD161.9A, GDB..9E.., GLD161.9E.., GLB..9E.., GDD161.9E without spring return, including modbus variants
Supports auxiliary functions (e.g. auxiliary switch, potentiometer) and can be combined with standard rotary actuators

Technical Design

Related Part Numbers

QBM81-5	VAI51.32-16
VXP459.25-6.3	VAI51.32-25
VXP459.32-16	VAI51.40-25
VAI61.25-10	VAI51.40-40
VAI61.25-16	VAI51.50-40
VAI61.32-16	VAI51.50-63
VAI61.32-25	GLA161.9Y/101
VAI61.50-63	GLA141.9Y/101
GMA131.9E	GDA161.9Y/101
GMA161.9E	GDA141.9Y/101
VAI61.40-25	GDB161.9Y/101
VAI61.40-40	GDB141.9Y/101
VAI61.50-40	GLB161.9Y/101
GQD131.9A	GLB141.9Y/101
GQD161.9A	GDB161.9E
VBI61.32-16	VAI51.15-4
VBI61.40-25	VAI51.20-6.3
VBI61.50-40	VAI51.20-10
VBI61.50-63	VAI51.25-10
ASK77.3	VAI51.25-16
