40 M³/H VAI51.40-40 Siemens Ball Valve DN40 Kvs40 PN25 For HVAC

Name: 40 M³/H VAI51.40-40 Siemens Ball Valve DN40 Kvs40 PN25 For HVAC
Brand: SC Automation Limited
SKU: VAI51.40-40
Availability: InStock

All Products

Bently Nevada Vibration Monitoring System
(77)

Bently Nevada 3500 System
(13)

Endress Hauser Instruments
(74)

Allen Bradley Modules
(34)

P+F Sensors
(45)

YOKOGAWA Transmitter
(29)

MTL Safety Barrier
(32)

Emerson AMS Trex Device Communicator
(6)

ABB TZIDC Valve Positioner
(27)

SIEMENS Simatic PLC
(12)

Emerson Asco Valves
(13)

Sick Industrial Sensors
(15)

AUMA Actuator
(6)

VEGA Instrumentation
(8)

Siemens Building Automation
(8)

Emerson Rosemount Transmitter
(18)

Emerson Micro Motion Flow Meters
(6)

HACH Water Quality Meter
(22)

I'm Online Chat Now

40 M³/H VAI51.40-40 Siemens Ball Valve DN40 Kvs40 PN25 For HVAC

Large Image : 40 M³/H VAI51.40-40 Siemens Ball Valve DN40 Kvs40 PN25 For HVAC

Product Details:

Place of Origin:	China
Brand Name:	SIEMENS
Certification:	ROHS
Model Number:	VAI51.40-40

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD/pc
Packaging Details:	standard carton packing
Delivery Time:	6-8weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

40 M³/H VAI51.40-40 Siemens Ball Valve DN40 Kvs40 PN25 For HVAC

Description

Angular Rotation:	90°	Leakage Rate:	0.01 % Of Kvs
DN:	40	Kvs:	40 M³/h
Medi Temperature:	-10…120 °C	Valve Assembly Type:	Shut-off And Control Valve Assemblies
Nominal Pressure PN:	Nominal Pressure PN	Length:	101.0
Highlight:	vai51.40-40 siemens ball valve , siemens ball valve dn40 , vai51.40-40 siemens control valve

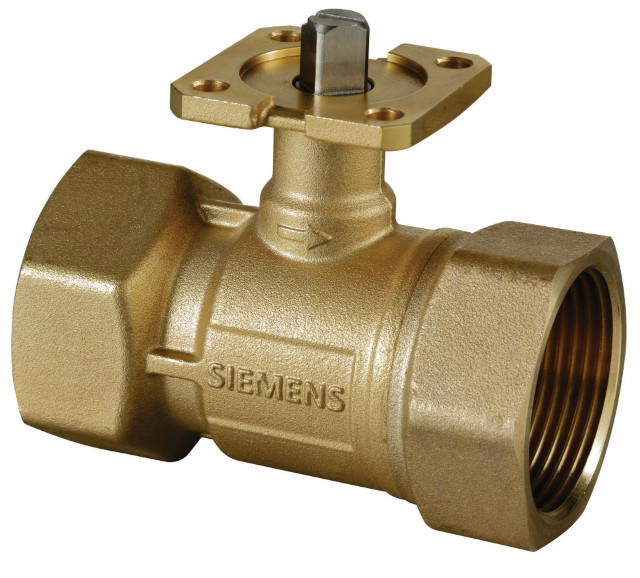

Siemens Ball Valve 2-Port PN25 DN40 kvs40 VAI51.40-40

Product Overview

Designed for use in heating, ventilation, and air conditioning systems as a control or shutoff valve in closed circuits.

Key Specifications

Attribute	Value
Angular rotation	90°
Leakage rate	0.01% of kvs
DN	40
kvs	40 m³/h
Media temperature	-10…120 °C
Valve assembly type	Shut-off and control valve assemblies
Nominal pressure PN	PN25
Length	101.0 mm

Product Features

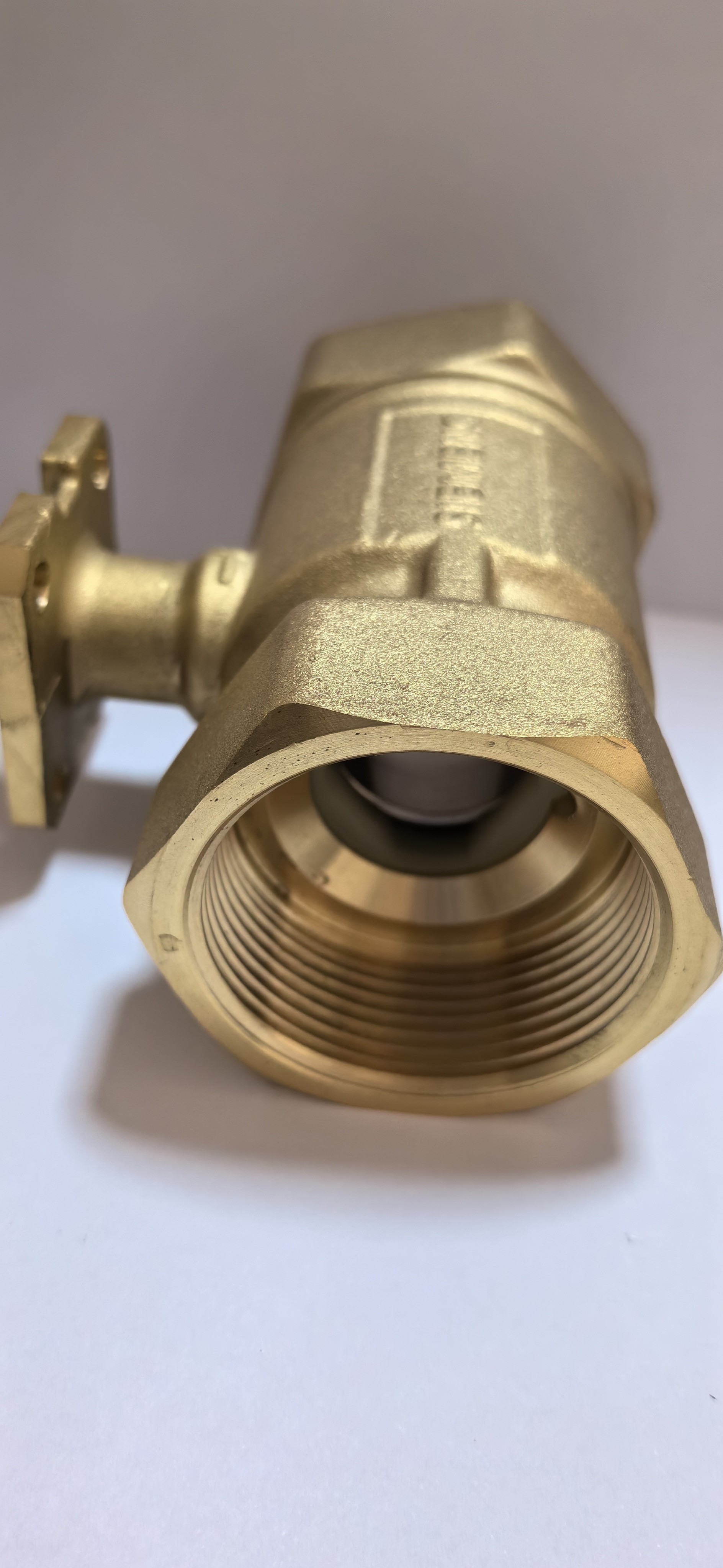

Ball valve body made of brass with stainless steel ball and stem
Available in DN sizes 15-50
kvs range: 4-63 m³/h
Connections with internal threading Rp per ISO 7-1
90° rotational angle
Compatible with various Siemens actuators including GQD..9A, GMA..9E (with spring return) and GSD161.9A, GDB..9E (without spring return)

Compatible Part Numbers

QBM81-5 | VAI51.32-16

VXP459.25-6.3 | VAI51.32-25

VXP459.32-16 | VAI51.40-25

VAI61.25-10 | VAI51.40-40

VAI61.25-16 | VAI51.50-40

VAI61.32-16 | VAI51.50-63

VAI61.32-25 | GLA161.9Y/101

VAI61.50-63 | GLA141.9Y/101

GMA131.9E | GDA161.9Y/101

GMA161.9E | GDA141.9Y/101

VAI61.40-25 | GDB161.9Y/101

VAI61.40-40 | GDB141.9Y/101

VAI61.50-40 | GLB161.9Y/101

GQD131.9A | GLB141.9Y/101

GQD161.9A | GDB161.9E

VBI61.32-16 | VAI51.15-4

VBI61.40-25 | VAI51.20-6.3

VBI61.50-40 | VAI51.20-10

VBI61.50-63 | VAI51.25-10

ASK77.3 | VAI51.25-16
