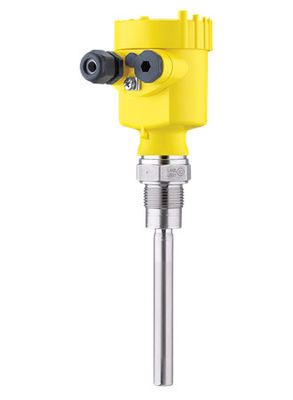

VEGAVIB 61 Vibrating Level Switch For Granular Bulk Solids ATEX Certified

Large Image : VEGAVIB 61 Vibrating Level Switch For Granular Bulk Solids ATEX Certified

Product Details:

Place of Origin:	Germany
Brand Name:	VEGA
Certification:	CE
Model Number:	VB61.GXAGDRAMX

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	12-16weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

VEGAVIB 61 Vibrating Level Switch For Granular Bulk Solids ATEX Certified

Description

Approval Directive / Scope:	ATEX / Europe	Approval:	II 1D, 1/2D, 2D Ex Ta, Ta/tb, Tb IIIC T* Da, Da/Db, Db IP66
Version / Process Temperature:	Standard / -50...+150°C	Process Fitting / Material:	Thread G1½ PN16, DIN3852-A / 316L, Switching Point As VEGAVIB 51
Electronics:	Relay (DPDT) 20 ... 72 V DC/20 ... 253 V AC (3A)	Housing / Protection:	Aluminium Single Chamber / IP66/IP67
Cable Entry / Cable Gland / Plug Connection:	M20x1.5 / With / Without	Switching Point:	Standard Sensitivity (from Density 0.1 G/cm³)
Highlight:	VEGAVIB 61 Vibrating Level Switch , VB61 vega vibrating level switch , ATEX Certified vibrating level switch

CE VEGAVIB 61 VEGA Instrumentation Vibrating Level Switch For Granular Bulk Solids VB61.GXAGDRAMX

Product Specifications

Attribute	Value
Approval directive / Scope	ATEX / Europe
Approval	II 1D, 1/2D, 2D Ex ta, ta/tb, tb IIIC T* Da, Da/Db, Db IP66
Version / Process temperature	Standard / -50...+150°C
Process fitting / Material	Thread G1½ PN16, DIN3852-A / 316L, switching point as VEGAVIB 51
Electronics	Relay (DPDT) 20 ... 72 V DC/20 ... 253 V AC (3A)
Housing / Protection	Aluminium single chamber / IP66/IP67
Cable entry / Cable gland / Plug connection	M20x1.5 / with / without
Switching point	Standard sensitivity (from density 0.1 g/cm³)

Product Description

VEGAVIB 61 Vibrating Level Switch for Granular Bulk Solids

This level switch detects limit levels with millimeter accuracy directly at the mounting position. The smooth vibrating rod surface prevents material buildup and simplifies cleaning.

Key Features

Designed for granular and coarse-grained bulk solids
Reliable detection of minimum or maximum limit levels
Jamming prevention through smooth rod surface design
Easy maintenance and cleaning

Operational Benefits

Reduced maintenance costs
Quick setup without requiring process medium
Consistent performance with product-independent switching point

Compatible Part Numbers

WE61.XXANDRKMX

PS69.IXTTDBHXAJKXX

VB63LXAGDRANX

PS69.AXCSABHXAMKRX

VB62.XXTGCRKMX

PS69.AXCSABHXAMKRX

VB62.XXCGDRKMX

PS68.XXEGD2HKMXX

VB61.XXAGDRKMX

PS68.XXEGD2HKMXK

VB61.XXAGDRAMX

PS68.XXEGD2HKMAX

VB61.XXAGDRAMX

PS68.XXE1Q2BDMAX

VB61.GXAGDRAMX

PS67.XXBXXHAMXX
