ETN MTL5546Y 4-20mA HART Communication 1 Channel Isolating Driver for Valve Positioners

Basic Information
Place of Origin: England
Brand Name: MTL
Certification: CE
Model Number: MTL5546Y
Document: MTL5546Y.pdf
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Original packaging
Delivery Time: 1 week
Payment Terms: T/T
Supply Ability: 100pcs per month
Signal Type: Analogue Output Number Of Channels: 1
Signal Range: 4-20mA Power Supply: 20-35 Vdc
Power Dissipation: 0.8W At 24V Response Time: Settles Within 200µA Of Final Value Within 100ms

ETN MTL5546Y Isolating Driver

Eaton Crouse-Hinds series MTL5500 isolating driver, 1 channel, Analogue output, 20-35 Vdc, 0.8W, 35mA, 4-20mA signal, HART, Input: Normal <6.0V, Open circuit <0.5mA, LED indication: Green = power, For valve positioners with LFD.

General Specifications
Product Name Eaton Crouse-Hinds series MTL5500 isolating driver
Catalog Number MTL5546Y - FSM ASSESSED
Product Length/Depth 109.8 mm
Product Height 118.8 mm
Product Width 15.8 mm
Product Weight 150 g
Product Specifications
Signal Type Analogue output
Number of Channels 1
Mounting Method T-section 35mm DIN rail
Power Dissipation 0.8W at 24V
Signal Range 4-20mA
Response Time Settles within 200µA of final value within 100ms
Communication Supported HART
Transfer Accuracy Better than 20µA
Temperature Drift <1.0µA/°C
Ripple <40µA peak-to-peak
Switching Frequency 500 Hz to 10 kHz
Galvanic Isolation 250V rms between safe-area circuits and power supply
Type For 4-20mA HART valve positioners with line fault detection

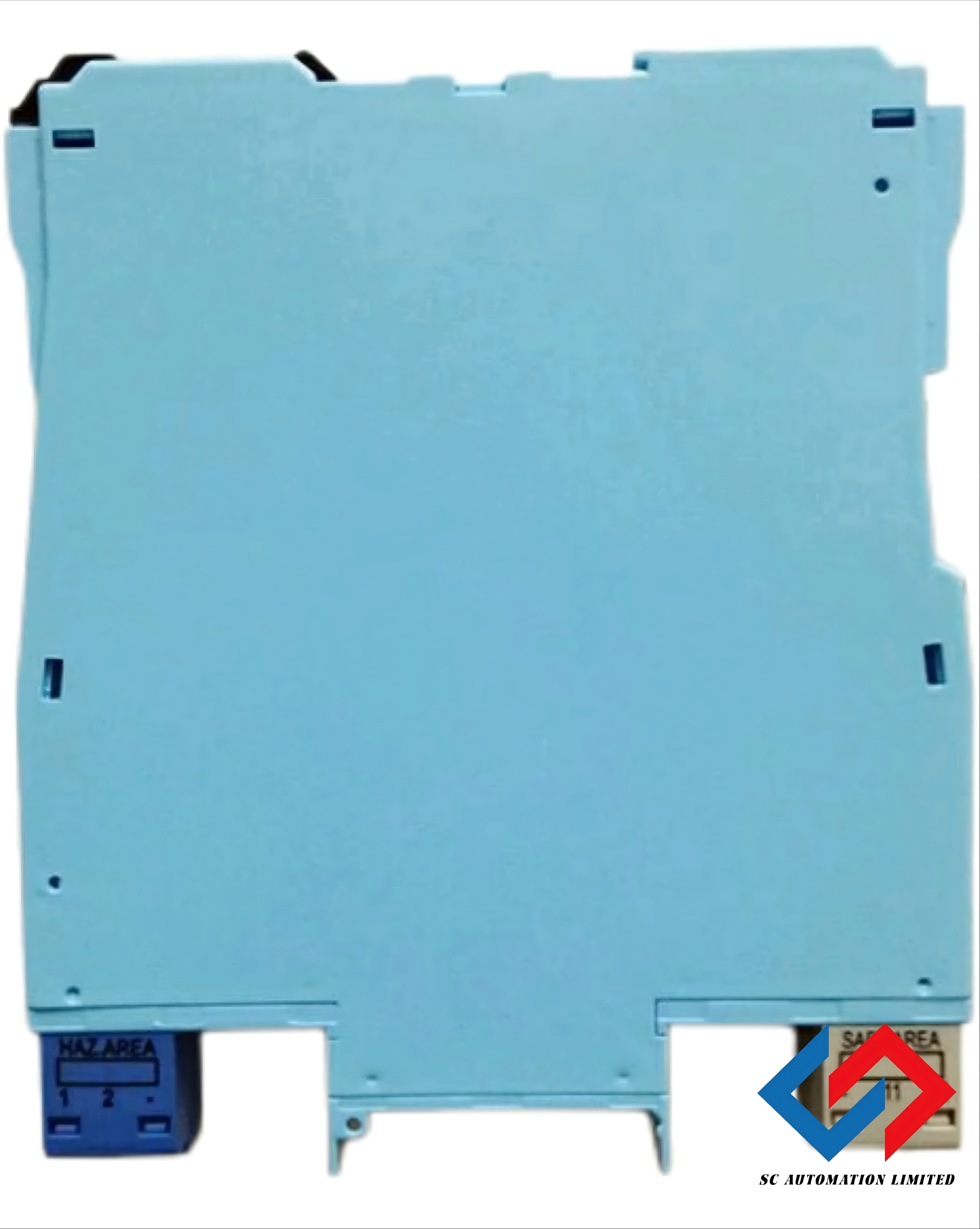

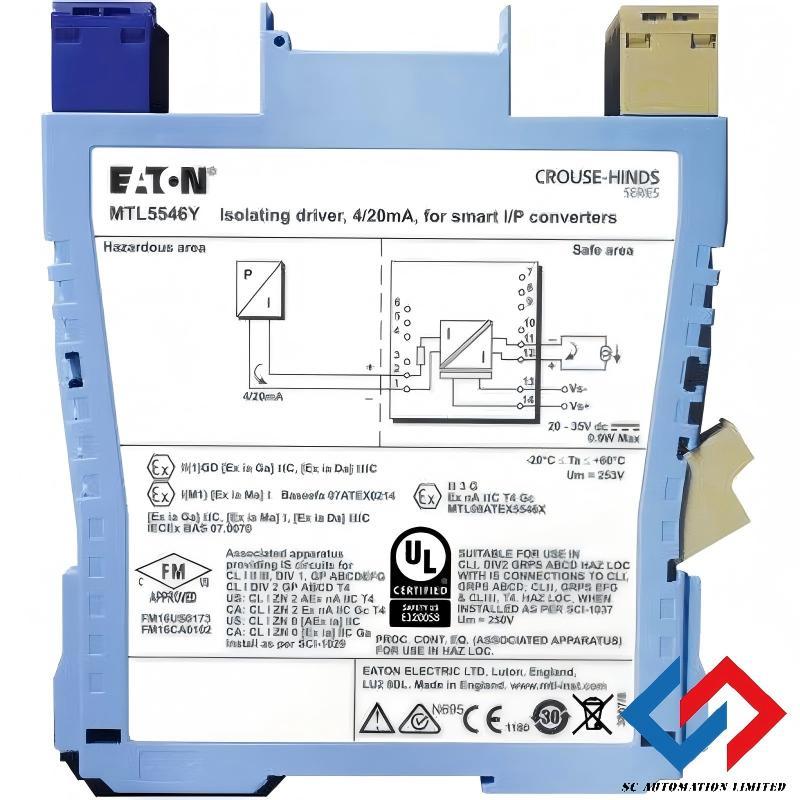

ETN MTL5546Y Isolating Driver product image
