SC8SG-R61-F-313-Y1*A YOKOGAWA Conductivity Sensor

Basic Information

Place of Origin:	Netherlands
Brand Name:	YOKOGAWA
Certification:	CE
Model Number:	SC8SG-R61-F-313-Y1*A
Document:	SC210G SC8SG SC4AJ GS12D08G...10.pdf

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	Original packaging
Delivery Time:	1 week
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Technical Name:

Conductivity Detector

Measuring Range:

High Range; Cell Constant: 10 Cm-1

Electrode Configuration:

4-electrode System

Flow-through Type:

1/2NPT Female Threaded; Chamber Material: PP

Cable Length:

5.5 M

Origin:

Japan

Highlight:

YOKOGAWA conductivity sensor with warranty

YOKOGAWA transmitter conductivity sensor

SC8SG-R61-F conductivity sensor

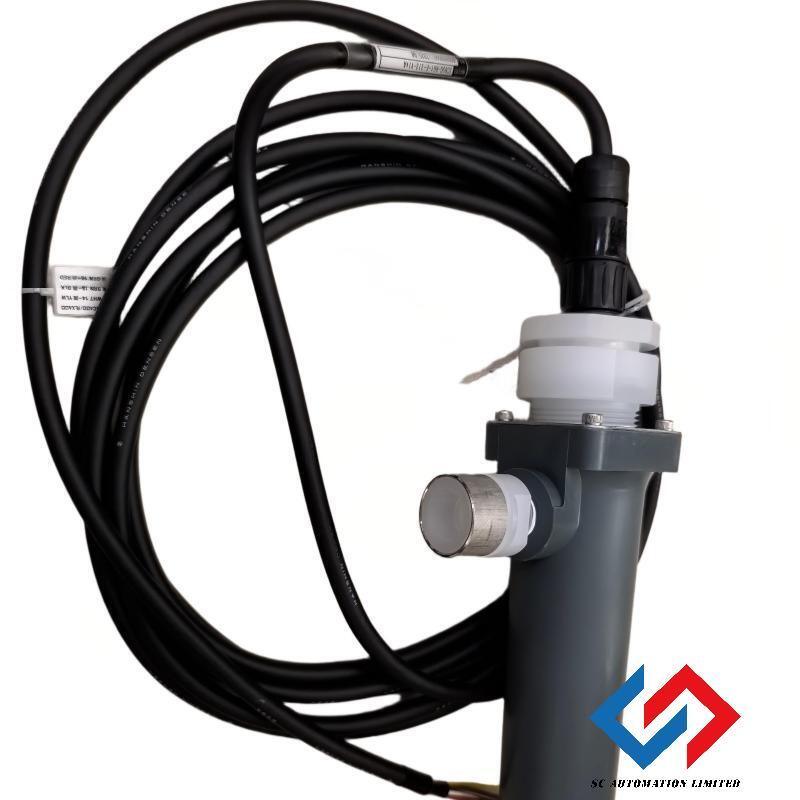

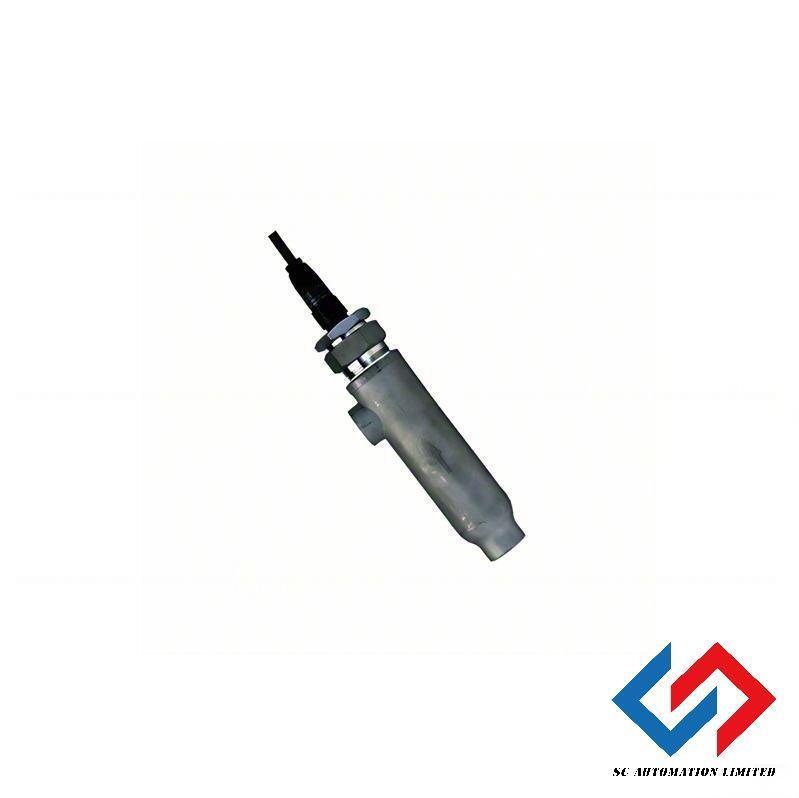

**SC8SG-R61-F-313-Y1*A YOKOGAWA Conductivity Sensor**

The SC8SG conductivity sensor is widely used in applications such as liquid conductivity measurement for manufacturing processes and pure water resistivity measurement in the semiconductor, food, pharmaceutical, and power industries. A wide variety of mountings are available including screw-in type, flow-through type with screw joint, and flow-through type with flange.

Specifications

Object of measurement	Conductivity of liquids or solutions
Measuring Principle	2-electrode or 4-electrode system
Cell Constants	0.01 cm^-1 or 10 cm^-1 (for 2-electrode system) 10 cm^-1 (for 4-electrode system)
Measuring Ranges	0 - 0.5 μS/cm to 0 - 100 μS/cm for a cell constant of 0.01 cm^-1 0 - 1 mS/cm to 0 - 1000 mS/cm for a cell constant of 10 cm^-1
Temperature Range	0 to 100 deg C (130 deg C maximum only for 0.01 cm^-1 cell constant detectors, excluding those with polypropylene chambers)
Pressure	1000 KPa max. (500 kPa maximum for detectors with polypropylene chambers)
Flow rate of Sample Solution	No particular limitation applies, although a value of less than 20 l/min is recommended for flow-through detectors.
RTD for Temperature Compensation	Pt1000 (built into the sensor)
Process Connection	Screw-in or flow-through

SC8SG-R61-F-313-Y1*A YOKOGAWA Conductivity Sensor
