Bently Nevada 9200 Seismoprobe Velocity Transducer 20 mV/mm/s Sensitivity

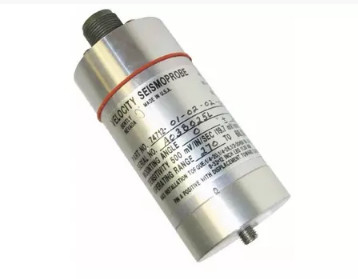

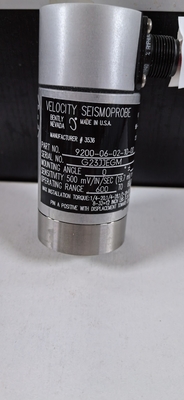

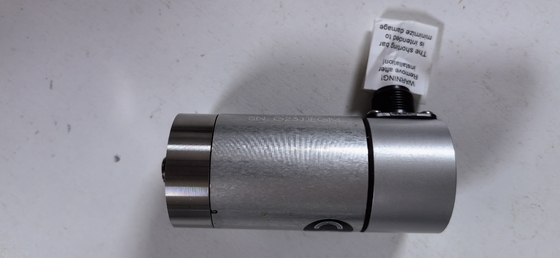

Large Image : Bently Nevada 9200 Seismoprobe Velocity Transducer 20 mV/mm/s Sensitivity

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CE
Model Number:	9200-06-02-10-00

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	12-16weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Bently Nevada 9200 Seismoprobe Velocity Transducer 20 mV/mm/s Sensitivity

Description

Sensitivity:	20 MV/mm/s (500 MV/in/s), ±5% When Properly Terminated And Oriented At The Angle Of Calibration.	Calibration Load:	10 KΩ Terminal "A" To "B" Output Taken Across Pins "A" And "B"
Sensitivity Temperature Coefficient:	0.2%/°C	Dynamic Operating Range:	2.54 Mm (0.100 In) Peak To Peak Maximum Displacement
Velocity Range:	25 Mm/s (1 In/s) (at +22 °C Of Casing Vibration At 100 Hz With A 10 KΩ Load.	Coil Resistance:	1.25 KΩ ±5%
Highlight:	9200 Seismoprobe Velocity Transducers , Bently Nevada Seismoprobe Velocity Transducers

Bently Nevada 9200 Seismoprobe Velocity Transducers

Product Specifications

Attribute	Value
Sensitivity	20 mV/mm/s (500 mV/in/s), ±5% when properly terminated and oriented at the angle of calibration.
Calibration Load	10 kΩ Terminal "A" to "B" Output taken across pins "A" and "B"
Sensitivity Temperature Coefficient	0.2%/°C
Dynamic operating range	2.54 mm (0.100 in) peak to peak maximum displacement
Velocity Range	25 mm/s (1 in/s) (at +22 °C of casing vibration at 100 Hz with a 10 kΩ load.
Coil Resistance	1.25 kΩ ±5%

Product Description

Bently Nevada Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The two-wire systems consist of a transducer and appropriate cable.

Moving-coil technology provides voltage output proportional to vibration velocity
Less sensitive to impact or impulsive excitation than solid-state velocity transducers
No external power required, ideal for portable measurement applications
Two-wire design for simplified installation

Ordering Information

Model Number Format: 9200-AA-BB-CC-DD

Transducer Mounting Angle/Minimum Operating Frequency Option

Code	Specification
01	0 ±2.5, 4.5 Hz (270 cpm)
02	45 ±2.5, 4.5 Hz (270 cpm)
03	90 ±2.5, 4.5 Hz (270 cpm)
06	0 ±100, 10 Hz (600 cpm)
09	0 ±180, 15 Hz (900 cpm)

Connector/Cable Option

Code	Specification
01	Top Mount (no cable)
02	Side Mount (no cable)
05	Terminal block top mount (no cable)
10	10 feet (3.0 meter)
15	15 feet (4.6 meter)
22	22 feet (6.7 meter)
32	32 feet (9.8 meter)
50	50 feet (15.2 meter)

Mounting Base Option

Code	Specification
01	Circular; 1/4-20 UNC stud
02	Circular; 1/4-28 UNF stud
03	Rectangular flange
04	Circular; with three 8-32 threaded studs on a 44 mm (1.75 in) diameter bolt circle
05	No base; 1/2-20 UNF-3A stud
06	Isolated circular 1/4-20 UNC stud
07	Isolated circular 1/4-28 UNF stud
08	Isolated rectangular flange
09	Isolated circular 5/8-18 UNF stud
10	Circular; M10X1 stud
11	Isolated circular M10X1
12	Isolated circular 1/2-20 UNF-2A

Agency Approval Option

Code	Specification
00	No Approvals
01	CSA
04	ATEX/IECEx

Tag:

bently vibration monitoring system,

bently nevada proximity sensor,

bently nevada proximity probe

Contact Details

SC Automation Limited

Contact Person: Ms. Joy chen

Tel: +8615012673027

Fax: 86--15012673027
