P+F LFL2-BK-U-PUR5-EMS Float Switch 250VAC IP68

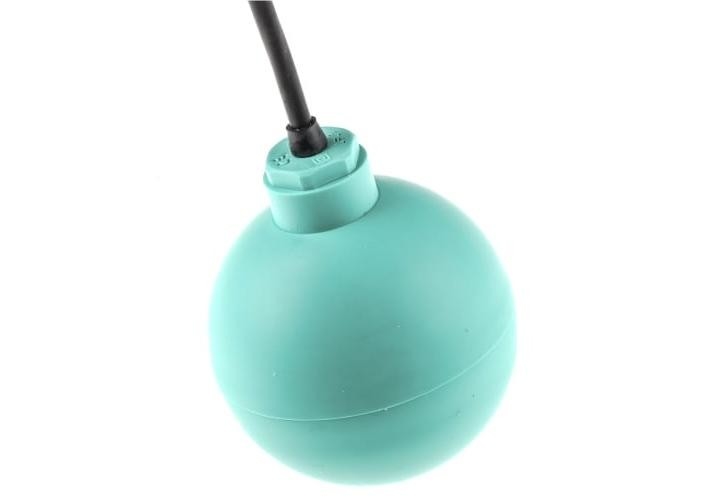

Large Image : P+F LFL2-BK-U-PUR5-EMS Float Switch 250VAC IP68

Product Details:

Place of Origin:	Germany
Brand Name:	P+F
Certification:	CE
Model Number:	LFL2-BK-U-PUR5-EMS

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

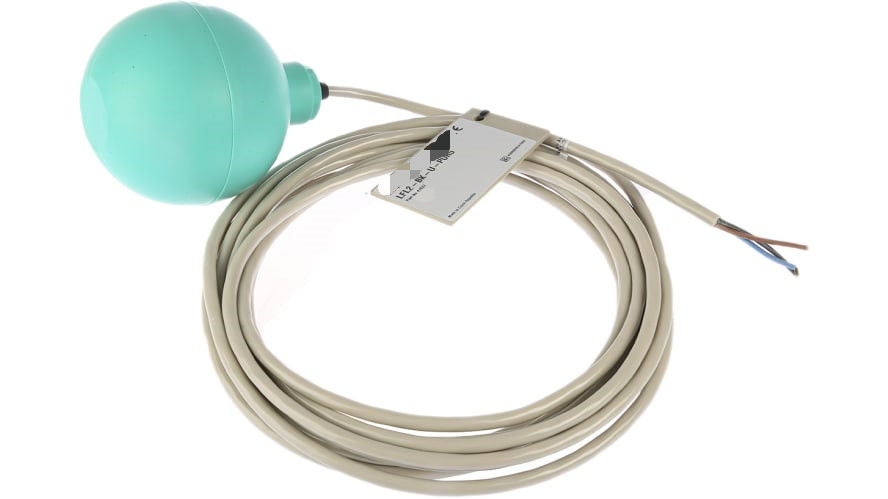

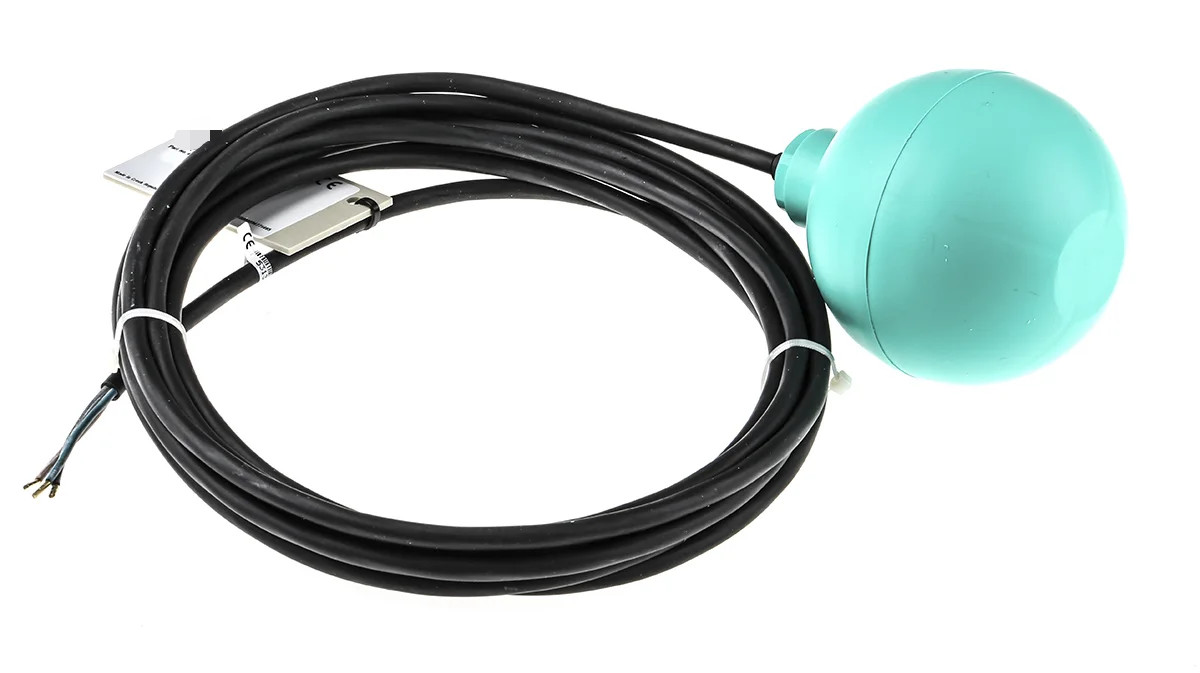

P+F LFL2-BK-U-PUR5-EMS Float Switch 250VAC IP68

Description

Contact Loading:	250 V AC/3 A; 150 V DC/0.25 A Resistive Load; 60 V DC/1 A Resistive Load	Electrical Life:	≥ 5 X 104 Switching Cycles
Degree Of Protection:	IEC 60529:2001	Description:	Microswitch With Switching Ball, Change-over Contact
Equipment Architecture:	This Device May Be Used With Any Sequential Circuit, As Long As The Circuit Can Support The Electrical Circuit Values Of The Switching Elements.	Electromagnetic Compatibility:	NE 21:2017 , EN 61326-3-1:2017 , EN IEC 61326-3-2:2018
Ambient Temperature:	5 ... 70 °C (41 ... 158 °F)	Material:	Float: PP (Polypropylene) Cable: PUR, Highly Flexible (3 X 0.50 Mm2)
Highlight:	250VAC P+F Float Switch , Float Switch IEC 60529 , LFL2-BK-U-PUR5-EMS

P+F 250VAC Float Switch IEC 60529 LFL2-BK-U-PUR5-EMS

Product Overview

Mercury-free float switch with microswitch and switching ball design for limit value detection in fluids. Features high buoyancy and robust construction for industrial applications.

Key Specifications

Attribute	Value
Contact loading	250 V AC/3 A; 150 V DC/0.25 A resistive load; 60 V DC/1 A resistive load
Electrical life	≥ 5 x 10⁴ switching cycles
Degree of protection	IEC 60529:2001 (IP68)
Ambient temperature	5 ... 70 °C (41 ... 158 °F)
Material	Float: PP (Polypropylene) Cable: PUR, highly flexible (3 x 0.50 mm²)

Technical Details

Electrical Specifications

Rated insulation voltage: 300 V

Pulse withstand voltage: 4 kV

Application Details

Description: Microswitch with switching ball, change-over contact

Process pressure: ≤ 2 bar (29 psi) at 20 °C (68 °F)

Fluid density: ≥ 0.6 g/cm³

Mechanical Specifications

Cable length: 5 m

Switching angles: Upper +25° ±10°, Lower -14° ±10°

Installation Information

Minimum 100 mm (4 inch) between mounting point and float
Recommended for fuels, heating oils, and oily fluids
Mount using counter weight or rods from the top
Pivot of cable should remain horizontal

Compliance & Standards

Directive 2014/35/EU
EN 60947-5-1:2004 + Cor.:2005 + A1:2009
NE 21:2017, EN 61326-3-1:2017, EN IEC 61326-3-2:2018
