KFA6-SR2-Ex2.W Switch Amplifier SIL 2 P+F Sensors Digital Input

KFA6-SR2-Ex2.W Switch Amplifier SIL 2 P+F Sensors Digital Input
KFA6-SR2-Ex2.W Switch Amplifier SIL 2 P+F Sensors Digital Input KFA6-SR2-Ex2.W Switch Amplifier SIL 2 P+F Sensors Digital Input

Large Image :  KFA6-SR2-Ex2.W Switch Amplifier SIL 2 P+F Sensors Digital Input

Product Details:
Place of Origin: Germany
Brand Name: P+F
Certification: PTB 00 ATEX 2081
Model Number: KFA6-SR2-Ex2.W
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

KFA6-SR2-Ex2.W Switch Amplifier SIL 2 P+F Sensors Digital Input

Description
Signal Type: Digital Input Supply Connection: Terminals 14, 15
Safety Integrity Level (SIL): SIL 2 Degree Of Protection: IEC 60529:2001
Display Elements: LEDs Electromagnetic Compatibility: NE 21:2006
Ambient Temperature: -20 ... 60 °C (-4 ... 140 °F) Dimensions: 20 X 119 X 115 Mm (0.8 X 4.7 X 4.5 Inch) (W X H X D) , Housing Type B2
Highlight:

KFA6-SR2-Ex2.W Switch Amplifier

,

SIL 2 P+F Sensors

,

KFA6-SR2-Ex2.W

IEC 60529:2001 P+F Sensors Switch Amplifier KFA6-SR2-Ex2.W
Key Specifications
Signal type Digital Input
Supply Connection terminals 14, 15
Safety Integrity Level (SIL) SIL 2
Degree of protection IEC 60529:2001
Display elements LEDs
Electromagnetic compatibility NE 21:2006
Ambient temperature -20 ... 60 °C (-4 ... 140 °F)
Dimensions 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D), housing type B2
Switch Amplifier KFA6-SR2-Ex2.W

2-channel isolated barrier with 230 V AC supply, designed for dry contact or NAMUR inputs with relay contact output. Features line fault detection (LFD) and reversible mode of operation.

  • Up to SIL 2 according to IEC/EN 61508 / IEC/EN 61511
  • Compact housing width: 20 mm
  • 2-channel configuration
  • Rated voltage: 207 ... 253 V AC, 45 ... 65 Hz
  • Compatible with NAMUR sensors and volt-free contacts
  • 2 x relay (change-over contact) outputs
Technical Specifications
General
Signal type Digital Input
Safety Integrity Level (SIL) SIL 2
Supply
Connection terminals 14, 15
Rated voltage 207 ... 253 V AC, 45 ... 65 Hz
Power dissipation 1.2 W
Power consumption max. 1.3 W
Input
Connection side field side
Connection terminals 1+, 2+, 3-; 4+, 5+, 6-
Rated values acc. to EN 60947-5-6 (NAMUR)
Line fault detection breakage I ≤ 0.1 mA, short-circuit I > 6 mA
Output
Connection output I: terminals 7, 8, 9; output II: terminals 10, 11, 12
Contact loading 253 V AC/2 A/cos φ > 0.7; 126.5 V AC/4 A/cos φ > 0.7; 40 V DC/2 A resistive load
Mechanical life 107 switching cycles
Product Images

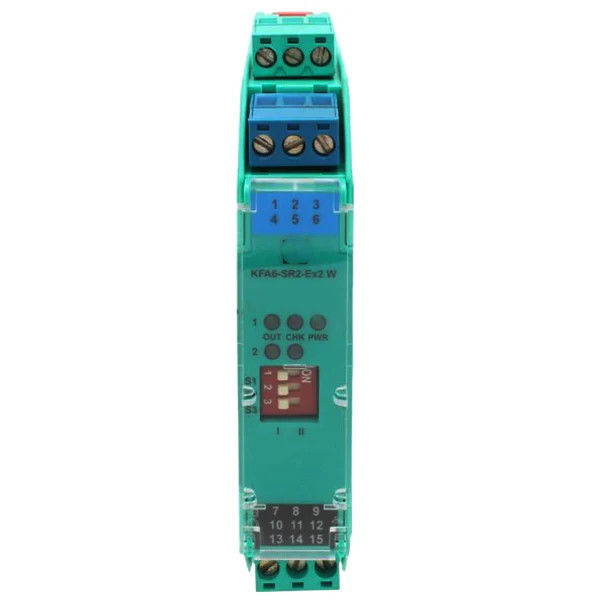

KFA6-SR2-Ex2.W Switch Amplifier SIL 2 P+F Sensors Digital Input 0

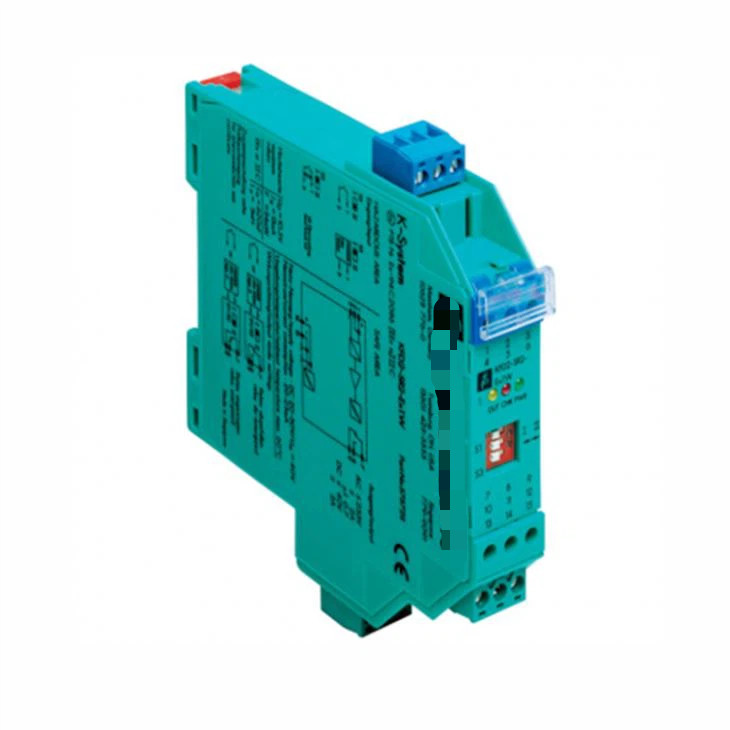

KFA6-SR2-Ex2.W Switch Amplifier SIL 2 P+F Sensors Digital Input 1
KFA6-SR2-Ex2.W Switch Amplifier SIL 2 P+F Sensors Digital Input 2
