Analog Signals P&F Sensors KFD0-CS-Ex1.50P 24VDC SIL 2 Repeater

Analog Signals P&F Sensors KFD0-CS-Ex1.50P 24VDC SIL 2 Repeater
Analog Signals P&F Sensors KFD0-CS-Ex1.50P 24VDC SIL 2 Repeater Analog Signals P&F Sensors KFD0-CS-Ex1.50P 24VDC SIL 2 Repeater

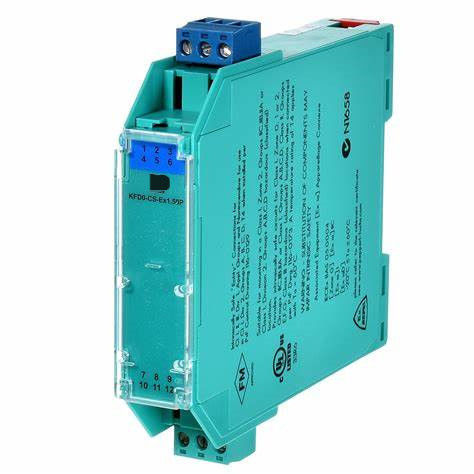

Large Image :  Analog Signals P&F Sensors KFD0-CS-Ex1.50P 24VDC SIL 2 Repeater

Product Details:
Place of Origin: Germany
Brand Name: P+F
Certification: BAS 98 ATEX 7343 X
Model Number: KFD0-CS-Ex1.50P
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

Analog Signals P&F Sensors KFD0-CS-Ex1.50P 24VDC SIL 2 Repeater

Description
Signal Type: Analog Input/analog Output Systematic Capability (SC): SC 3
Safety Integrity Level (SIL): SIL 2 Degree Of Protection: IEC 60529:2001
Accuracy: 0.1 % Electromagnetic Compatibility: NE 21:2012 EN 61326-3-2:2008
Ambient Temperature: -20 ... 70 °C (-4 ... 158 °F) Dimensions: 20 X 107 X 115 Mm (0.8 X 4.2 X 4.5 Inch) (W X H X D) , Housing Type B1
Highlight:

p&f sensors KFD0-CS-Ex1.50P

,

24VDC SIL 2 Repeater

,

KFD0-CS-Ex1.50P

20mA 24VDC P+F Repeater KFD0-CS-Ex1.50P
Product Specifications
Attribute Value
Signal type Analog input/analog output
Systematic capability (SC) SC 3
Safety Integrity Level (SIL) SIL 2
Degree of protection IEC 60529:2001
Accuracy 0.1 %
Electromagnetic compatibility NE 21:2012 EN 61326-3-2:2008
Ambient temperature -20 ... 70 °C (-4 ... 158 °F)
Dimensions 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D), housing type B1
Product Description
Repeater KFD0-CS-Ex1.50P
  • 1-channel isolated barrier, 24 V DC supply (loop powered)
  • Current input/output 4 mA ... 20 mA, transmitter power supply
  • Accuracy 0.1 %, Reverse polarity protection
  • Up to SIL 2 (SC 3) acc. to IEC/EN 61508
  • Housing width: 20 mm, Number of channels: 1-channel
  • Transfer direction: to the field / to the control system
  • Rated voltage: 5 ... 35 V DC, loop powered
  • Signal: 1 x 4 ... 20 mA
Technical Data
General specifications
Signal type: Analog input/analog output
Functional safety related parameters
Safety Integrity Level (SIL): SIL 2
Systematic capability (SC): SC 3
Supply
Rated voltage: 5 ... 35 V DC, loop powered
Control circuit
Connection: terminals 12-, 11+
Voltage: 5 ... 35 V DC
Current: 4 ... 20 mA
Power dissipation: at 20 mA and Uin < 24.3 V: < 250 mW per channel
at 20 mA and Uin > 24.3 V: < 500 mW per channel
Field circuit
Connection: terminals 1+, 2-
Voltage: for 5V < Uin < 24.3V: ≥ 0.9 x Uin - (0.37 x current in mA) - 1.0
for Uin > 24.3 V: ≥ 21 V - (0.36 x current in mA)
Short-circuit current: at Uin > 24.3 V : ≤ 65 mA
Transfer current: ≤ 40 mA
Transfer characteristics
Accuracy: 0.1 %
Deviation: After calibration: ≤ ± 20 µA; incl. calibration, linearity, hysteresis and load fluctuations at the field side up to a load of 1 kΩ at 20 °C (68 °F)
Influence of ambient temperature: ≤ ± 2 µA/K at Uin ≤ 20 V; ≤ ± 5 µA/K at Uin > 20 V
Rise time: ≤ 5 ms at bounce from 4 ... 20 mA and Uin < 24 V
Galvanic isolation
Field circuit/control circuit: safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Indicators/settings
Labeling: space for labeling at the front
Directive conformity
Electromagnetic compatibility: Directive 2014/30/EU: EN 61326-1:2013 (industrial locations)
Conformity
Electromagnetic compatibility: NE 21:2012 EN 61326-3-2:2008
Degree of protection: IEC 60529:2001
Protection against electrical shock: UL 61010-1:2012
Ambient conditions
Ambient temperature: -20 ... 70 °C (-4 ... 158 °F)
Mechanical specifications
Degree of protection: IP20
Connection: screw terminals
Mass: approx. 100 g
Dimensions: 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D), housing type B1
Height: 107 mm
Width: 20 mm
Depth: 115 mm
Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001
