KFD2-CD-Ex1.32 P+F Sensors SIL 2 Current Driver 35VDC

KFD2-CD-Ex1.32 P+F Sensors SIL 2 Current Driver 35VDC
KFD2-CD-Ex1.32 P+F Sensors SIL 2 Current Driver 35VDC KFD2-CD-Ex1.32 P+F Sensors SIL 2 Current Driver 35VDC

Large Image :  KFD2-CD-Ex1.32 P+F Sensors SIL 2 Current Driver 35VDC

Product Details:
Place of Origin: Germany
Brand Name: P+F
Certification: BAS 02 ATEX 7203 X
Model Number: KFD2-CD-Ex1.32
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

KFD2-CD-Ex1.32 P+F Sensors SIL 2 Current Driver 35VDC

Description
Labeling: Space For Labeling At The Front Safety Integrity Level (SIL): SIL 2
Degree Of Protection: IEC 60529:2001 Supply Connection: Power Rail Or Terminals 7+, 8-
Ambient Temperature: -20 ... 60 °C (-4 ... 140 °F) Dimensions: 20 X 107 X 115 Mm (0.8 X 4.2 X 4.5 Inch) (W X H X D) , Housing Type B1
Highlight:

KFD2-CD-Ex1.32 P+F Sensors

,

SIL 2 Current Driver

,

Current Driver 35VDC

35VDC SIL 2 P+F Current Driver KFD2-CD-Ex1.32
Product Overview

1-channel isolated barrier with 24 V DC supply (Power Rail), featuring current input and output of 0 mA to 20 mA with 0.1% accuracy. Certified for Safety Integrity Level (SIL) 2 according to IEC/EN 61508.

Key Specifications
Attribute Value
Labeling Space for labeling at the front
Safety Integrity Level (SIL) SIL 2
Degree of protection IEC 60529:2001
Supply Connection Power Rail or terminals 7+, 8-
Ambient temperature -20 ... 60 °C (-4 ... 140 °F)
Dimensions 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D), housing type B1
Technical Data
General Specifications
Signal type
Analog output
Functional Safety
Safety Integrity Level (SIL)
SIL 2
Supply
Connection
Power Rail or terminals 7+, 8-
Rated voltage
20 ... 35 V DC
Ripple
Within the supply tolerance
Rated current
max. 50 mA
Power dissipation
1.4 W
Input
Connection side
Control side
Connection
Terminals 9+, 10-, 11+
Voltage drop
approx. 4 V at 20 mA
Input current
≤ 100 µA up to 50 °C (122 °F) at 10 V
Limit
max. 40 mA
Transmission range
0 ... 20 mA
Output
Connection side
Field side
Connection
Terminals 1+, 2-
Voltage
17 V at 20 mA
Current
0 ... 20 mA
Load
Output resistance: max. 3 Ω
Transfer Characteristics
Deviation
at 20 °C (68 °F), 4 ... 20 mA

< 0.1 % of full scale, incl. non-linearity and hysteresis
Influence of ambient temperature
≤ ± 0.01 %/K
Rise time
< 10 ms
Galvanic Isolation
Input/power supply
Functional insulation, rated insulation voltage 50 V AC
Indicators/Settings
Display elements
LED
Labeling
Space for labeling at the front
Directive Conformity
Electromagnetic compatibility
Directive 2014/30/EU, EN 61326-1:2013 (industrial locations)
Conformity
Degree of protection
IEC 60529:2001
Protection against electrical shock
UL 61010-1:2012
Ambient Conditions
Ambient temperature
-20 ... 60 °C (-4 ... 140 °F)
Mechanical Specifications
Degree of protection
IP20
Connection
Screw terminals
Mass
approx. 100 g
Dimensions
20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D), housing type B1
Mounting
On 35 mm DIN mounting rail acc. to EN 60715:2001
Hazardous Area Applications
EU-type examination certificate
BAS 02 ATEX 7203 X
Marking
II (1)G [Ex ia Ga] IIC, II (1)D [Ex ia Da] IIIC, I (M1) [Ex ia Ma] I
Certificate
TÜV 99 ATEX 1499 X
Marking
II 3G Ex nA II T4
Directive conformity
Directive 2014/34/EU, EN IEC 60079-0:2018+AC:2020, EN 60079-11:2012, EN 60079-15:2010
International Approvals
FM approval
Control drawing: 116-0440
UL approval
Control drawing: 116-0441 (cULus)
IECEx approval
IECEx certificate: IECEx BAS 05.0041X, IECEx CML 19.0051X
IECEx marking
[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I, Ex ec IIC T4 Gc
Related Models
KFU8-UFT
KFD0-CS-Ex1.51P
K-HM26-2M-261533
KFD0-CS-Ex2.50P
NBB15-U1-E2
KFD0-CS-Ex2.51P
NBB1,5-5GM25-E2
KFD0-RO-Ex2
NBB1,5-5GM25-E2-V3
KFD0-SCS-Ex1.55
NBB1,5-F79-E0
KFD0-SD2-Ex2.1045
NBB1,5-F79-E2
KFD0-SD2-Ex2.1245
NBB15-U1-Z2
KFD0-TR-Ex1
NBB5-18GM50-E2-V1
KFD0-CC-1
NBB15-30GM30-E2-V1
KFD0-HMS-16
NBB15-30GM50-A2-V1
KFD0-RSH-1.4S.PS2
NBB15-30GM50-E2
KFD0-SD2-EX1.10100
NBB15-30GM50-E2-M
KFD0-SD2-EX1.1045
NBB15-30GM50-E2-V1
KFD2-UT2-1
NBB15-30GM50-E2-V1-M
KFD2-CD-1.32
NBB8-18GM30-E2
KFD2-CD-EX1.32
NBB8-18GM30-E2-V1
KFD2-HMM-16
NBB8-18GM60-A2-V1
KFD2-SH-EX1.T
NJ4-12GK-SN
KFD2-UT2-1
NJ5-18GK-N
KFD2-VR4-EX1.26
NJ5-18GK-N-150
KFU8-UFC-1.D
NJ5-18GM-N
V15-G-2M
NJ8-18GK-N
Z 787
RD0-FB-EX4
Z787.H
RD0-TI-Ex8.FF.*
HIC2031
Z787.F
Z787.H.F

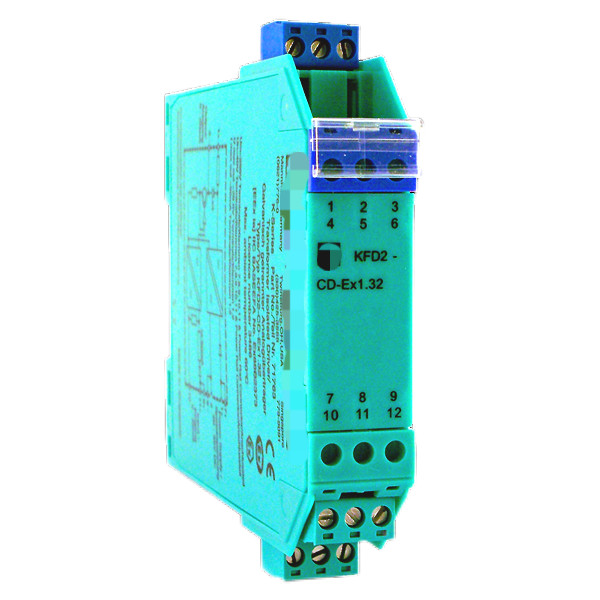

Product Images
