P+F KFD2-UT2-1 Universal Temperature Converter SIL 2

P+F KFD2-UT2-1 Universal Temperature Converter SIL 2
P+F KFD2-UT2-1 Universal Temperature Converter SIL 2 P+F KFD2-UT2-1 Universal Temperature Converter SIL 2

Large Image :  P+F KFD2-UT2-1 Universal Temperature Converter SIL 2

Product Details:
Place of Origin: Germany
Brand Name: P+F
Certification: CE
Model Number: KFD2-UT2-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

P+F KFD2-UT2-1 Universal Temperature Converter SIL 2

Description
Labeling: Space For Labeling At The Front Safety Integrity Level (SIL): SIL 2
Degree Of Protection: IEC 60529:2001 Supply Connection: Terminals 14+, 15- Or Power Feed Module/Power Rail
Ambient Temperature: -20 ... 60 °C (-4 ... 140 °F) Dimensions: 20 X 119 X 115 Mm (0.8 X 4.7 X 4.5 Inch) (W X H X D) , Housing Type B2
Highlight:

terminals 14 Universal Temperature Converter

,

terminals 15 Universal Temperature Converter

,

KFD2-UT2-1

Terminals 14 15 Universal Temperature Converter KFD2-UT2-1
Product Overview

The KFD2-UT2-1 is a 1-channel universal temperature converter with 24 V DC supply (Power Rail) capability. It accepts thermocouple, RTD, potentiometer, or voltage inputs and provides current output of 0/4 mA to 20 mA in sink or source mode. Configurable via PACTware, this converter features line fault (LFD) and sensor burnout detection, achieving up to SIL 2 safety integrity level.

Key Features
  • Universal input for thermocouples, RTDs, potentiometers, and voltage signals
  • Configurable 0/4-20 mA current output
  • Programmable via PACTware software
  • Line fault and sensor burnout detection
  • SIL 2 safety rating according to IEC/EN 61508/61511
  • Compact 20 mm housing width
  • Wide operating temperature range (-20 to 60°C)
Technical Specifications
Attribute Value
Labeling Space for labeling at the front
Safety Integrity Level (SIL) SIL 2
Degree of protection IEC 60529:2001
Supply Connection Terminals 14+, 15- or power feed module/Power Rail
Ambient temperature -20 ... 60 °C (-4 ... 140 °F)
Dimensions 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D), housing type B2
Detailed Technical Data
General Specifications
Signal type
Analog input
Functional Safety
Safety Integrity Level (SIL)
SIL 2
Input Specifications
RTD Types
Pt10, Pt50, Pt100, Pt500, Pt1000 (EN 60751:1995), Pt10GOST, Pt50GOST, Pt100GOST, Pt500GOST, Pt1000GOST (6651-94), Cu10, Cu50, Cu100 (P50353-92), Ni100 (DIN 43760)
Thermocouple Types
B, E, J, K, N, R, S, T (IEC 584-1:1995), L (DIN 43710:1985), TXK, TXKH, TXA (P8.585-2001)
Output Specifications
Current Output
0...20 mA or 4...20 mA selectable
Environmental Specifications
Degree of protection
IP20
Mounting
35 mm DIN mounting rail according to EN 60715:2001
Product Images

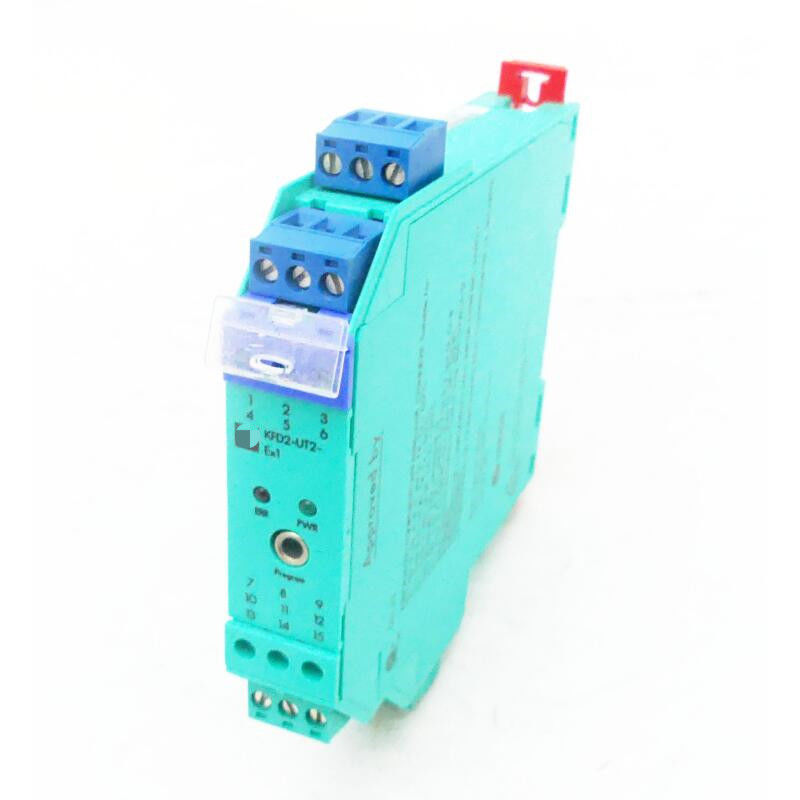

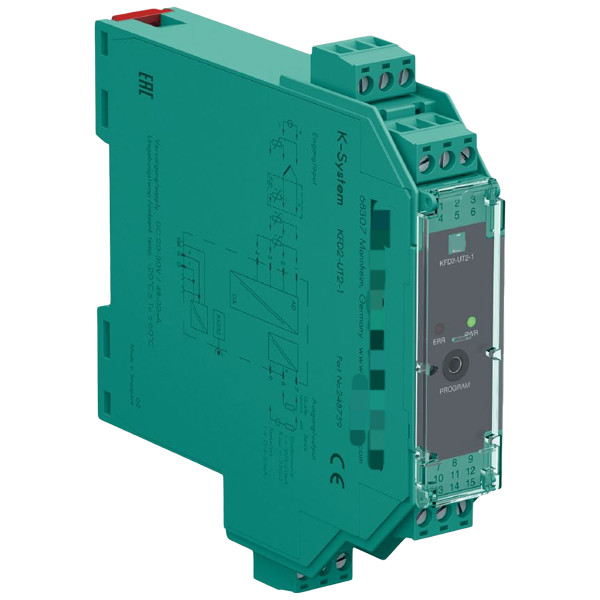

P+F KFD2-UT2-1 Universal Temperature Converter SIL 2 0 P+F KFD2-UT2-1 Universal Temperature Converter SIL 2 1 P+F KFD2-UT2-1 Universal Temperature Converter SIL 2 2
