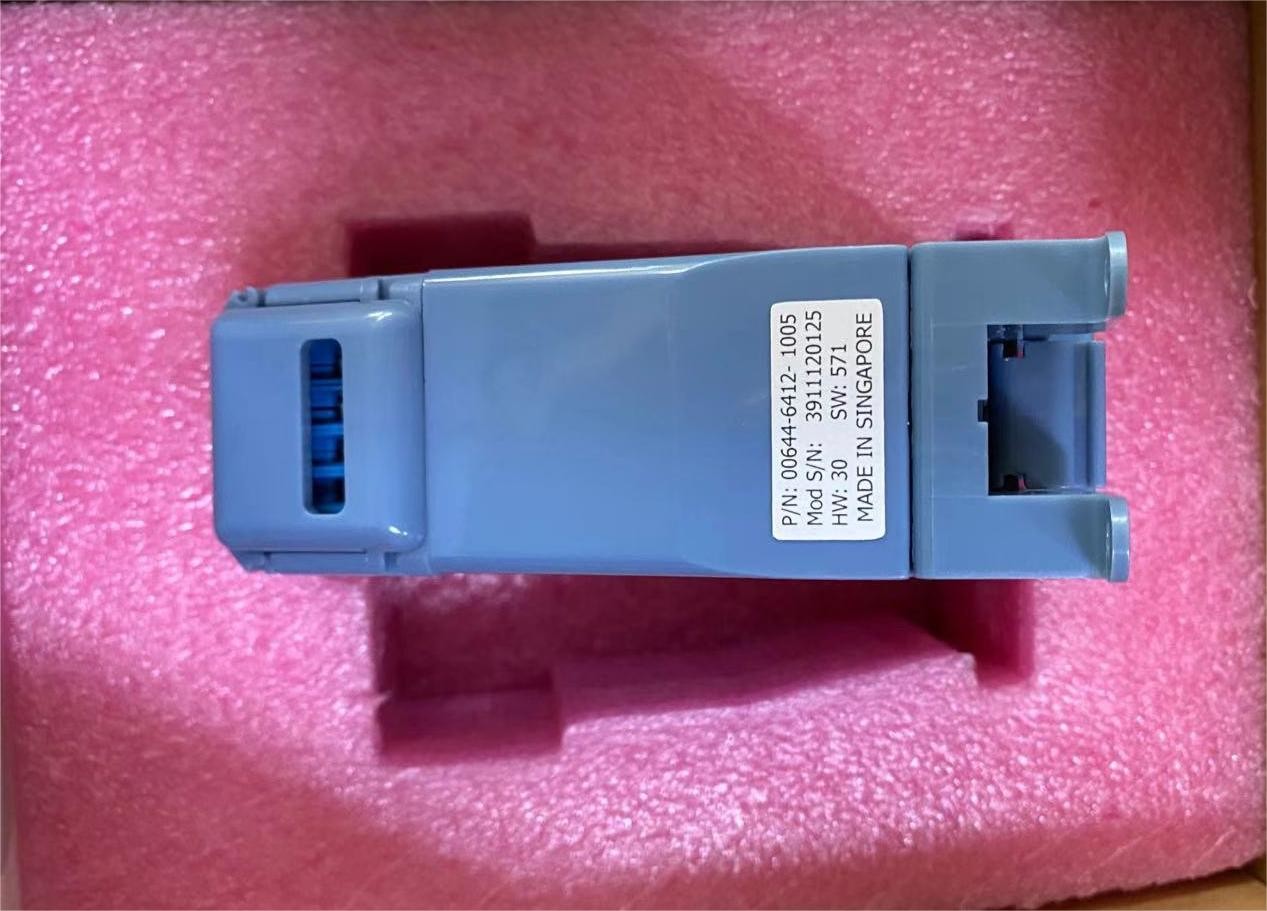

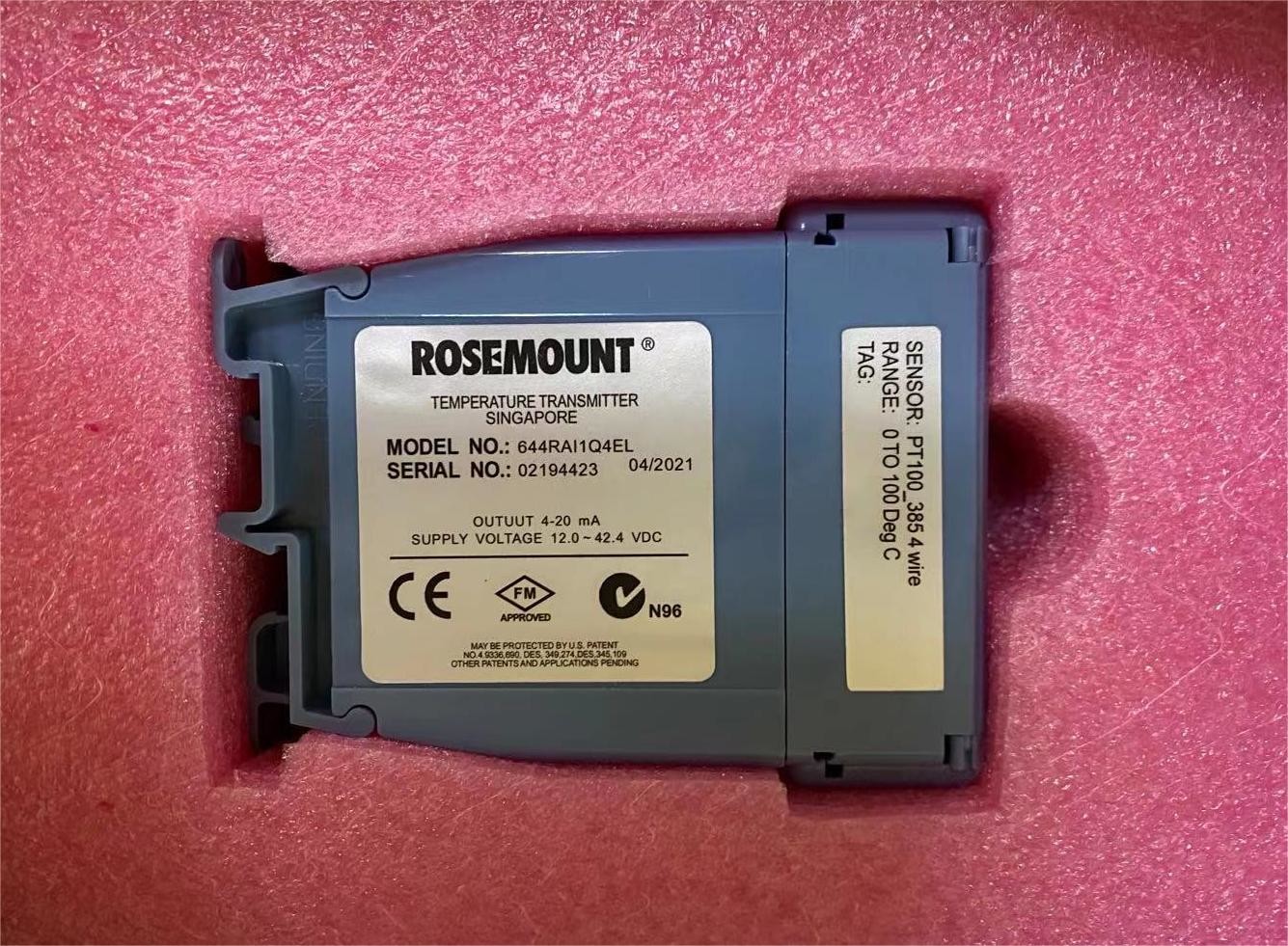

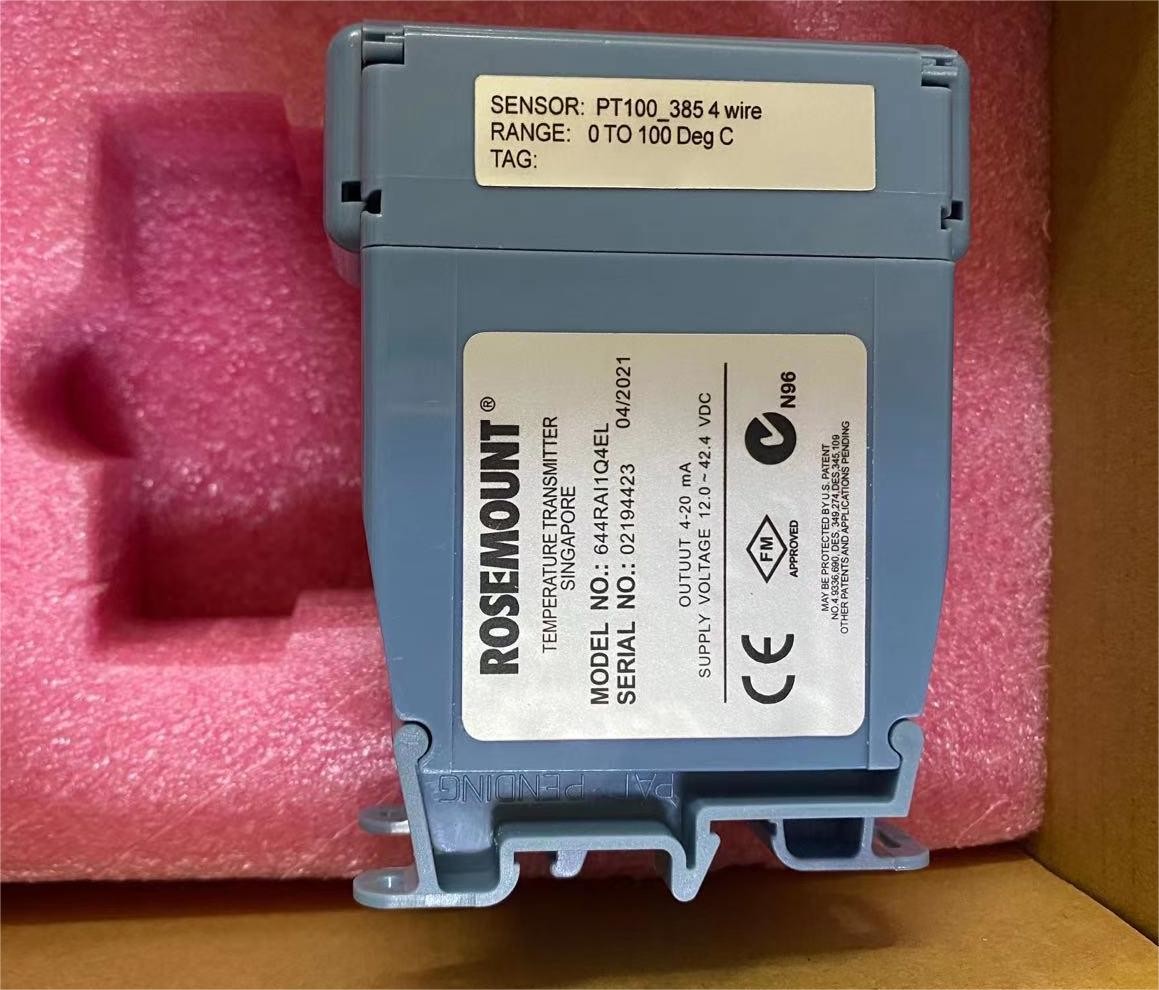

Emerson Rosemount 644 Temperature Transmitter with LCD Display 644RAI1Q4EL

Emerson Rosemount 644 Temperature Transmitter with LCD Display 644RAI1Q4EL
Emerson Rosemount 644 Temperature Transmitter with LCD Display 644RAI1Q4EL Emerson Rosemount 644 Temperature Transmitter with LCD Display 644RAI1Q4EL Emerson Rosemount 644 Temperature Transmitter with LCD Display 644RAI1Q4EL

Large Image :  Emerson Rosemount 644 Temperature Transmitter with LCD Display 644RAI1Q4EL

Product Details:
Place of Origin: SINGAPORE
Brand Name: Rosemount
Certification: CE
Model Number: 644RAI1Q4EL
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now

Emerson Rosemount 644 Temperature Transmitter with LCD Display 644RAI1Q4EL

Description
Input: Dual And Single Sensor Capability With Universal Sensor Inputs (RTD, T/C, MV, Ohms) Output Signal: 4-20 MA /HART™ Protocol, FOUNDATION™ Fieldbus Protocol, PROFIBUS™ PA Protocol
Housing: Field Mount, DIN A Head Mount Or Rail Mount Display/Interface: LCD Display, LCD Display With Local Operator Interface (LOI), Or LED
Diagnostics: Basic Diagnostics, Hot Backup™ Capability, Sensor Drift Alert, Thermocouple Degradation, Min/max Tracking Calibration Options: Transmitter-sensor Matching (Callendar-Van Dusen Constants), 5-point Calibration
Highlight:

LCD Display Rosemount 644 Temperature Transmitter

,

Rosemount 644 Temperature Transmitter

,

Thermocouple emerson rosemount 644

LCD Display Emerson Rosemount 644 Temperature Transmitter 644RAI1Q4EL
Product Specifications
Attribute Value
Input Dual and single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms)
Output Signal 4-20 mA /HART™ protocol, FOUNDATION™ fieldbus protocol, PROFIBUS™ PA protocol
Housing Field mount, DIN A head mount or rail mount
Display/Interface LCD Display, LCD Display with Local Operator Interface (LOI), or LED
Diagnostics Basic diagnostics, Hot Backup™ capability, sensor drift alert, thermocouple degradation, min/max tracking
Calibration Options Transmitter-sensor matching (Callendar-Van Dusen constants), 5-point calibration
Product Overview

Engineered for versatility, the Rosemount 644 Temperature Transmitter is available with HART™, FOUNDATION™ Fieldbus or PROFIBUS™ protocols in head, field or rail mount styles with various enclosure options. The optional Local Operator Interface (LOI) enables transmitter configuration in the field without tools.

Key Features
  • Versatile temperature transmitter supporting multiple protocols (HART™, FOUNDATION™ Fieldbus, PROFIBUS™)
  • Flexible mounting options including head, field or rail mount configurations
  • LOI option eliminates need for special configuration tools for field adjustments
  • Transmitter-sensor matching with Callendar-Van Dusen constants improves measurement accuracy
  • Hot Backup™ capability and sensor drift alert ensure measurement reliability with dual sensors
  • Thermocouple degradation monitoring detects potential failures before they occur
  • Min/max temperature tracking for easy troubleshooting of process extremes
  • Intuitive device dashboards simplify configuration and diagnostic processes
